Anthro Elevate II - Page 2

WELCOME
Thank you for purchasing Anthro's Elevate II
electric lift table!
If you have any questions or if we can
help you in any way, please contact us at
800.325.3841.
TOOLS
Your Elevate II comes with these tools:
• 5/32" hex Anthro driver
• 5/32" hex driver bit
• 5mm hex key
• 1/8" hex key
• 3-way wrench
To make the assembly even easier, use your
own 3/8" socket for Step 4.
PARTS LIST
Before beginning assembly of your table, please review the
parts list to verify that your shipment is complete.
2
# Component Quantity Part Number
01 Worksurface 1
48w 23.25d Basic 100-6673-00
48w 23.25d Plus 101-1109-03-00
48w 29d Basic 100-6675-00
48w 29d Plus 101-1108-03-00
60w 23.25d Basic 100-6672-00
60w 23.25 Plus 101-1105-03-00
60w 29d Basic 100-6674-00
60w 29d Plus 101-1107-03-00
02 Gusset X (not shown) 1 225-4611-00
03 Gusset Y 1 225-4612-00
04 Electric Leg 2 575-5085-00
05 Motor Housing 2 225-4613-00
06 Cross Pan 1
48w 225-4619-00
60w 225-4615-00
07 Cable Tray 1
48w 23.25d 225-4638-00
48w 29d 225-4625-00
60w 23.25d 225-4637-00
60w 29d 225-4624-00
08 Control Box 1 400-5182-00
09 Power Cord (not shown) 1 400-5181-00
10 Key Pad 1 400-5357-00
11 Key Pad Slider 1 400-5358-00
12 Foot 2 835-5556-00
13 1" Button-head MDF Screw 26 325-5580-00
14 M6-10 Button-head Screw 8 325-5503-00
15 M6x14 Flat-head Screw 4 325-5435-00
16 3/4" Phillips SMS Zinc Screw 4 325-5370-00
17 1/2" Button-hd Screw 3 325-5193-00
18 10-24 Nylock Nut 3 325-5186-00
19 M6-20 Cap Screw 8 325-5272-00

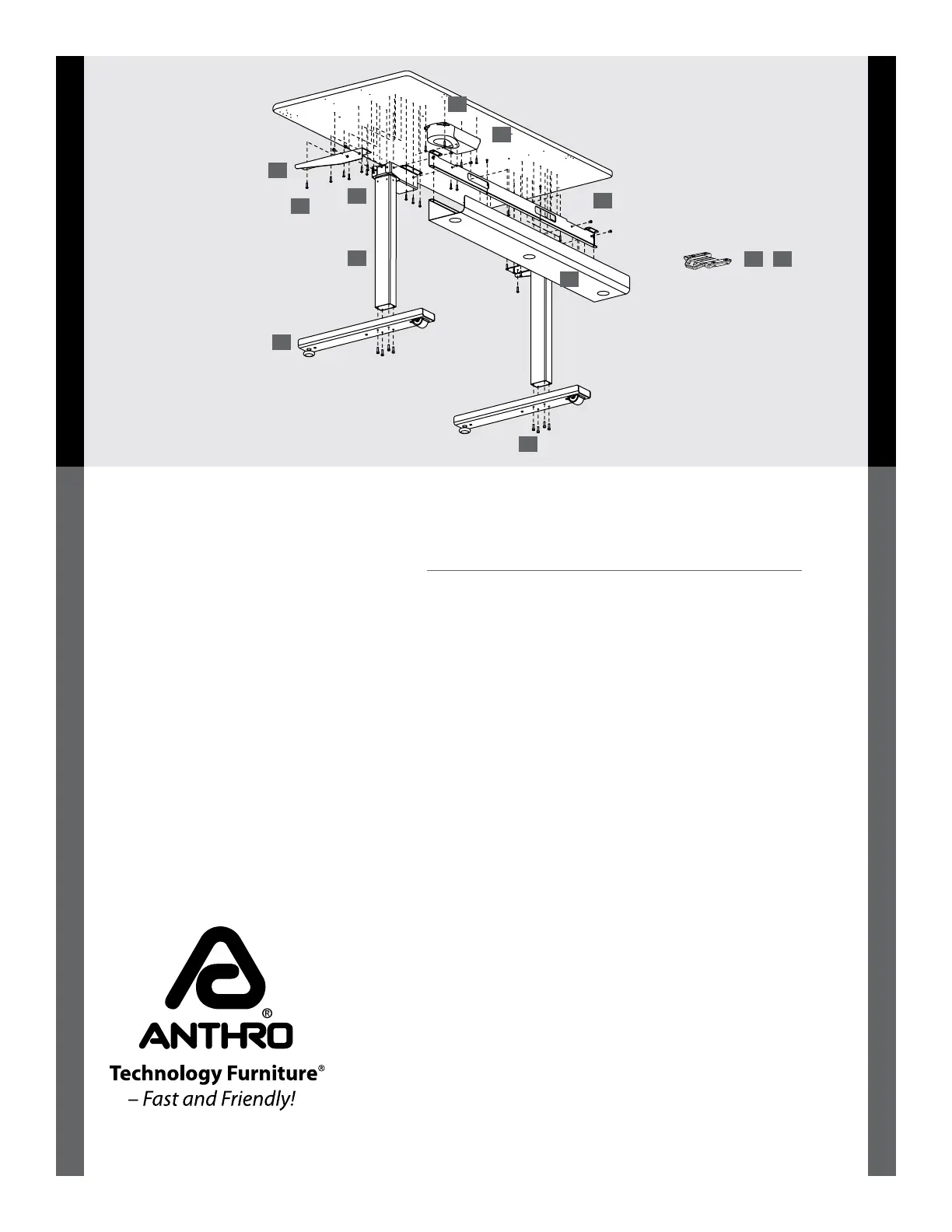

01
03
04
05
06
07
08
10 11
12
13
19
