AnyWireASLINK
4-6
4.5 Transmission distance
All transmission distances described for AnyWireASLINK refer to the “total extension” of a cable.
Total extension is the total cable length to be used including branches.
Wiring of the AnyWireASLINK system can be established with only 2 transmission lines (DP, DN).
The 2 transmission lines (DP, DN) support a maximum 200m length as a total extension. (See P. 2-2)
This total extension also includes the length of the cable coming out of the slave unit.

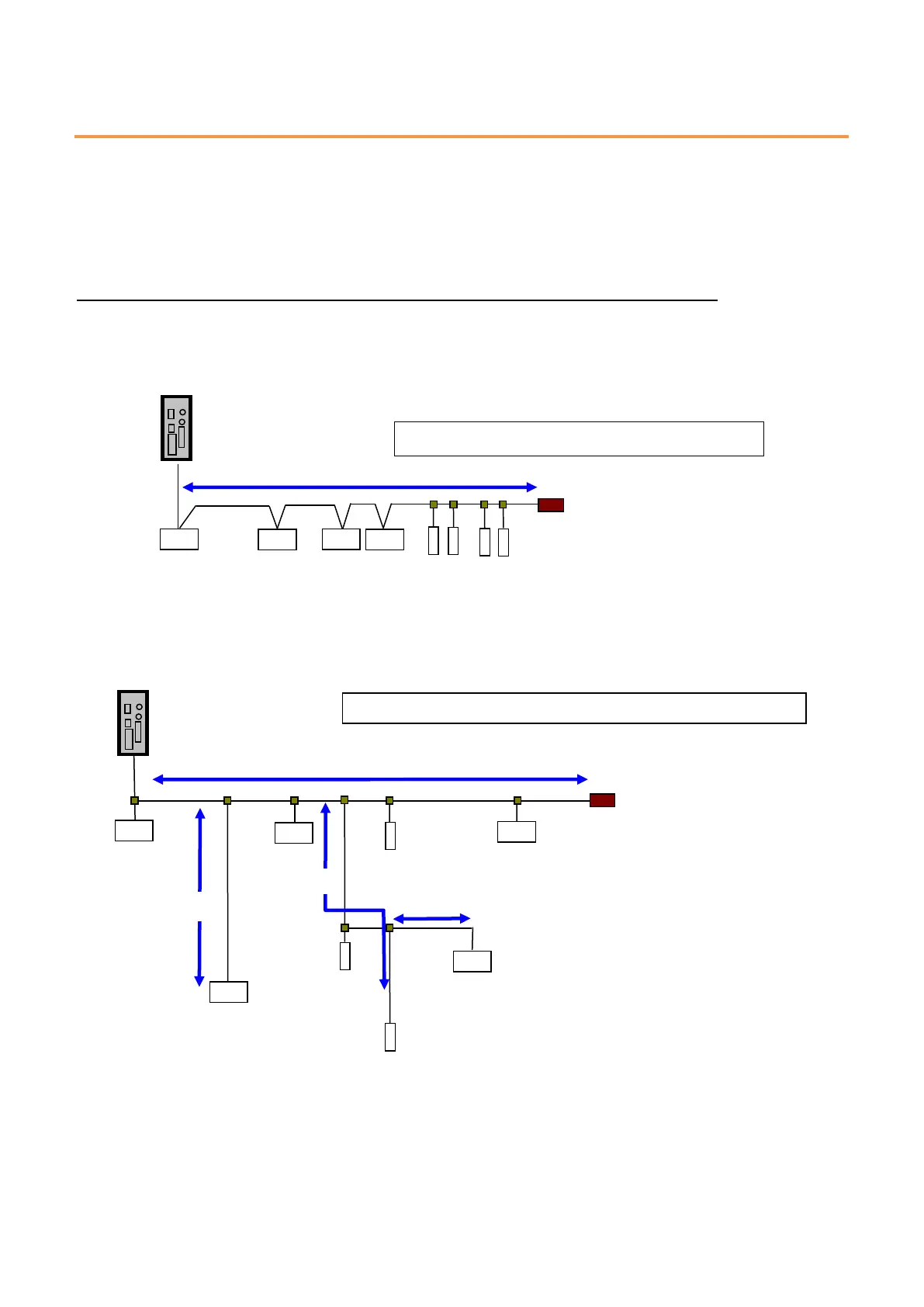

In the case of basic type
In the case of branch
L Set transmission distance (total extension)
Terminator
L
1
+L
2
+L
3
+L
4
Set transmission distance (total extension)
Terminator
