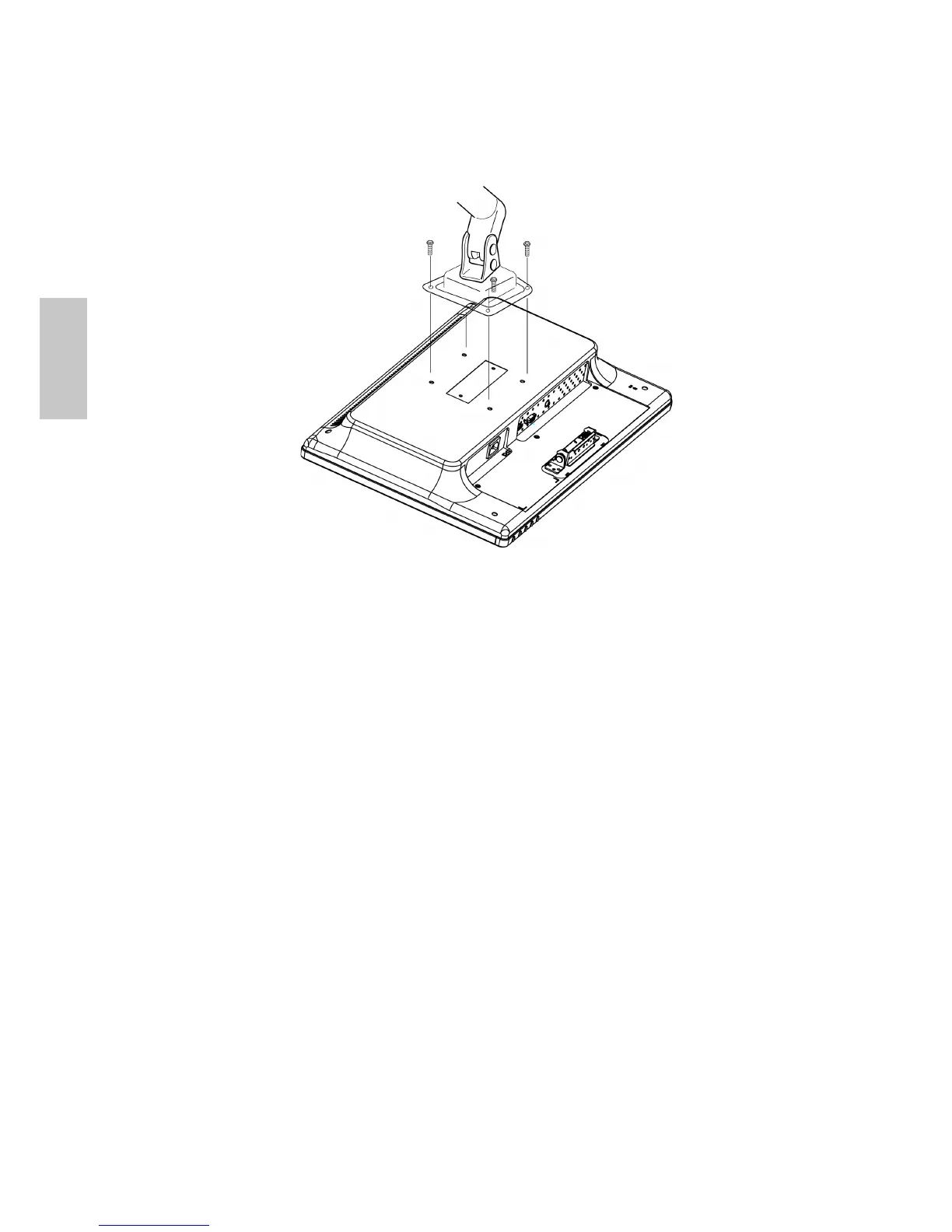

Attaching The Optional Wall Mount Arm (not supplied)
Follow these steps to nish installing the wall mounting arm:
1. Place the wall mounting arm onto the back of the monitor. Line up the holes of the
arm with the holes in the back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3. Reconnect the cables. Refer to the user’s manual that came with the optional wall
mounting arm for instrucstions on attaching it to the wall.
NOTE
The AOC 2219S-1 is in compliance with the most current revision of the VESA100mm
Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).
