21.5" LCD Color Monitor AOC 2236Vwa

4. Input/Output Specification

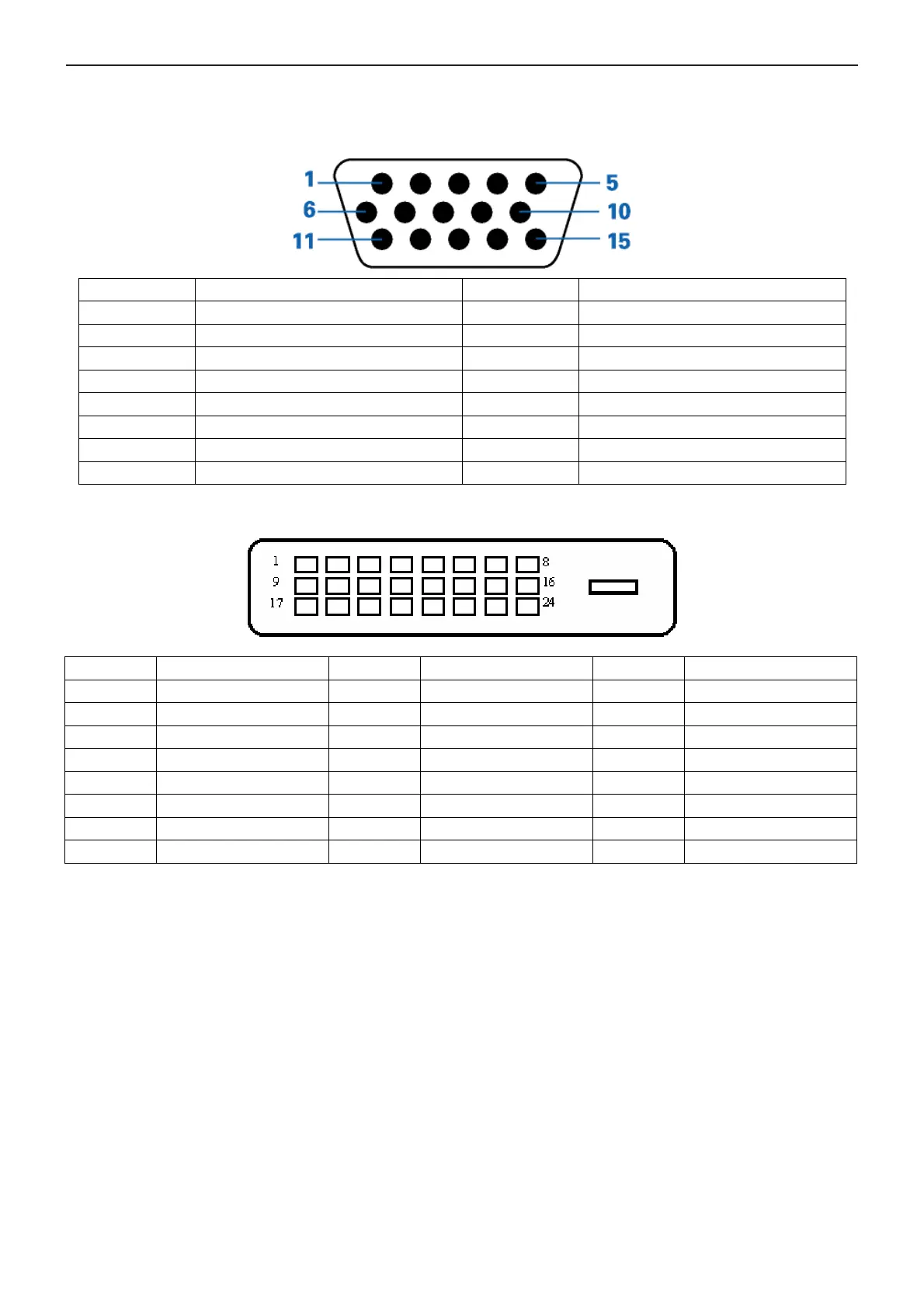

4.1 Input Signal Connector

D-Sub mini 15pin Connector

Pin Number 15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable

1 Video-Red 9 +5V

2 Video-Green 10 Ground

3 Video-Blue 11 N.C.

4 N.C. 12 DDC-Serial data

5 Detect Cable 13 H-sync

6 GND-R 14 V-sync

7 GND-G 15 DDC-Serial clock

8 GND-B

DVI-D 24pin Connector

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-

2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+

3 TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield

4 TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data 5-

5 TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data 5+

6 DDC Clock 14 +5V Power 22 TMDS Clock Shield

7 DDC Data 15 Ground(for+5V) 23 TMDS Clock +

8 N.C. 16 Hot Plug Detect 24 TMDS Clock -
