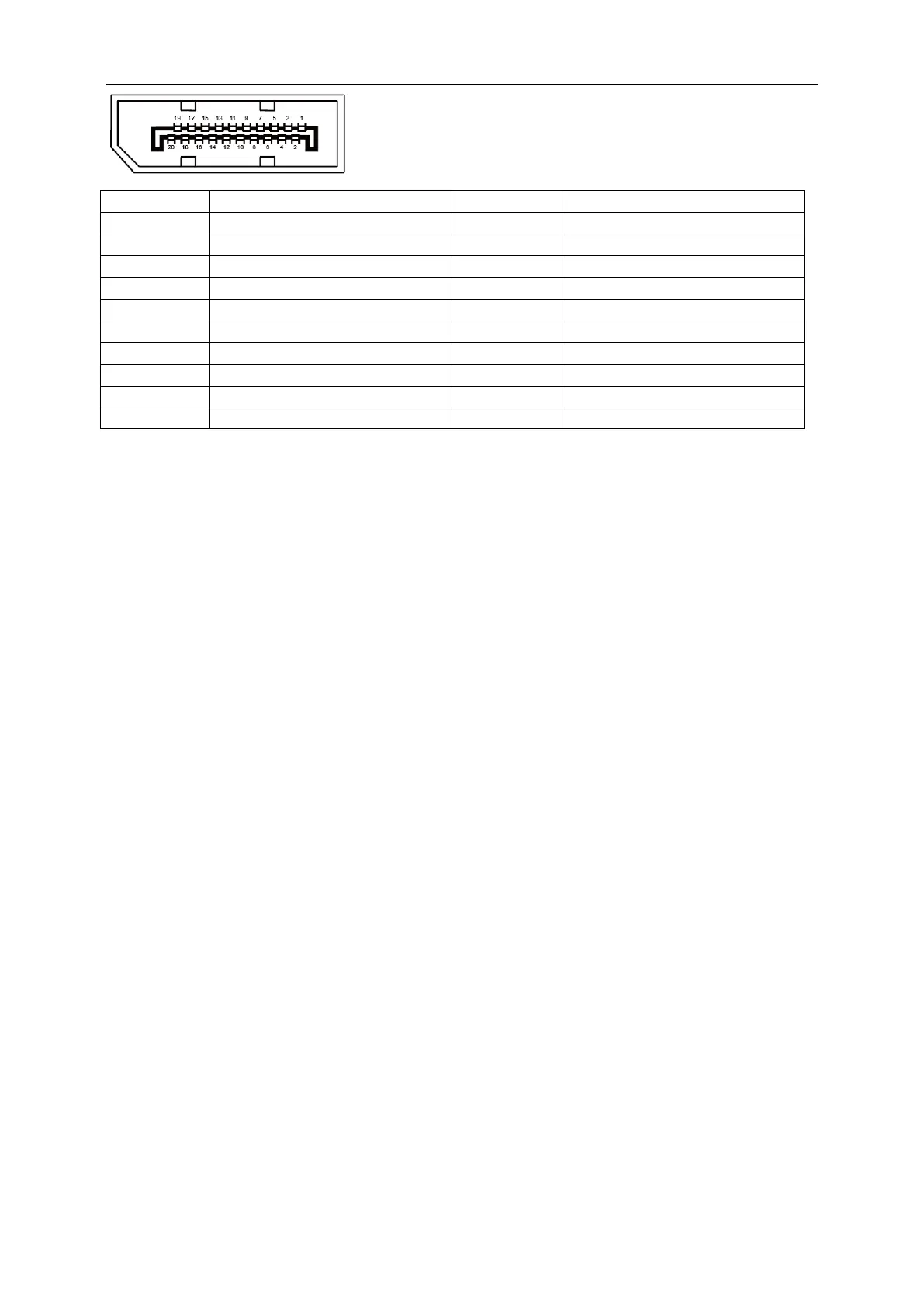

20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML Lane 3(n)
11
GND
2
GND
12
ML Lane 0(p)
3
ML Lane 3(p)
13
CONFIG1
4
ML Lane 2(n)
14
CONFIG2
5
GND
15
AUX CH(p)
6
ML Lane 2(p)
16
GND
7
ML Lane 1(n)
17
AUX CH(n)
8
GND
18
Hot Plug Detect
9
ML Lane 1(p)
19
Return OP PWR
10
ML Lane 0(n)
20
DP PWR
