AOC 2436V - Page 53

53

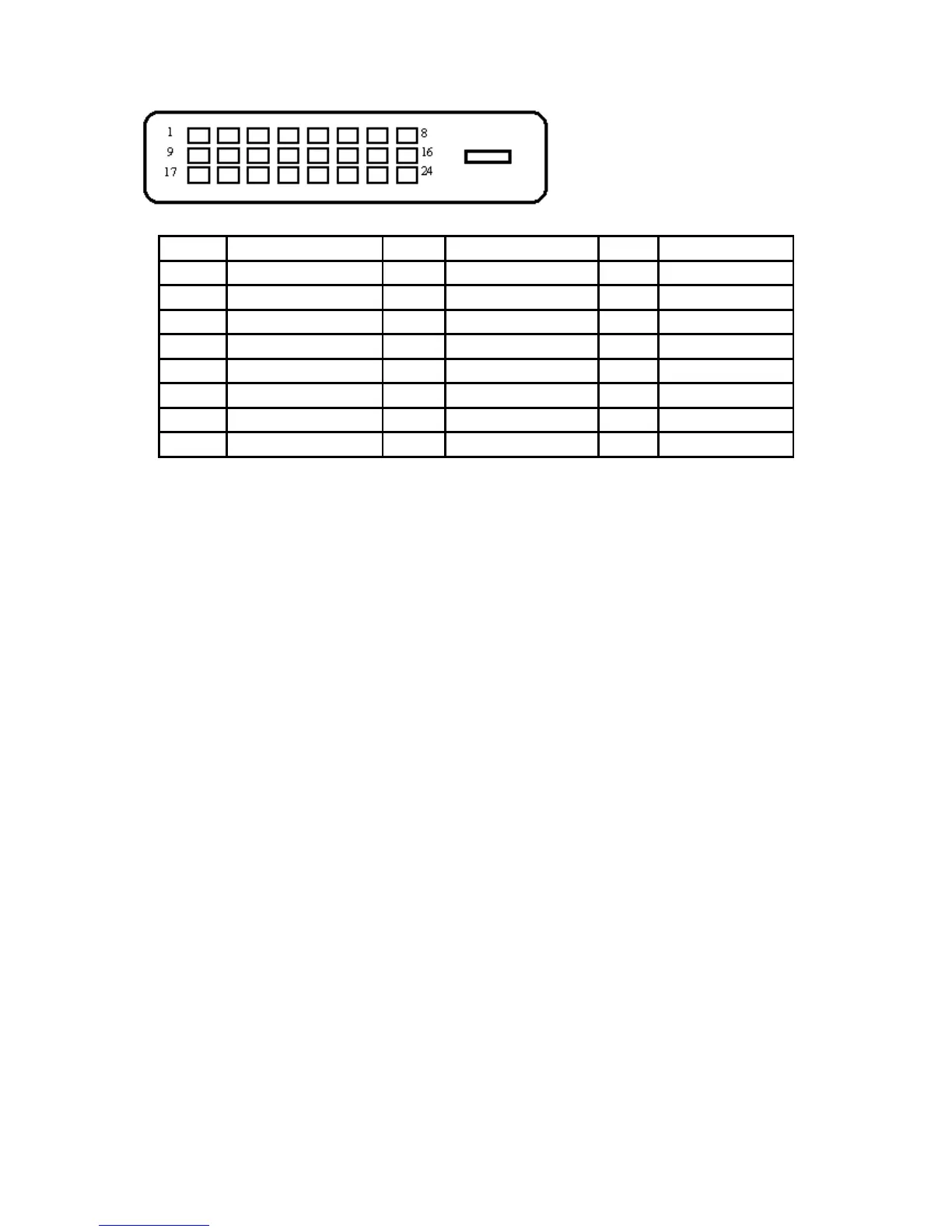

Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2-
9
TMDS Data 1-
17
TMDS Data 0-
2
TMDS Data 2+
10
TMDS Data 1+
18
TMDS Data 0+
3
TMDS Data 2/4 Shield
11
TMDS Data 1/3 Shield
19
TMDS Data 0/5 Shield
4
TMDS Data 4-
12
TMDS Data 3-
20
TMDS Data 5-
5
TMDS Data 4+
13
TMDS Data 3+
21
TMDS Data 5+
6
DDC Clock
14
+5V Power
22
TMDS Clock Shield
7
DDC Data
15
Ground(for+5V)
23
TMDS Clock +
8
N.C.
16
Hot Plug Detect
24
TMDS Clock -
