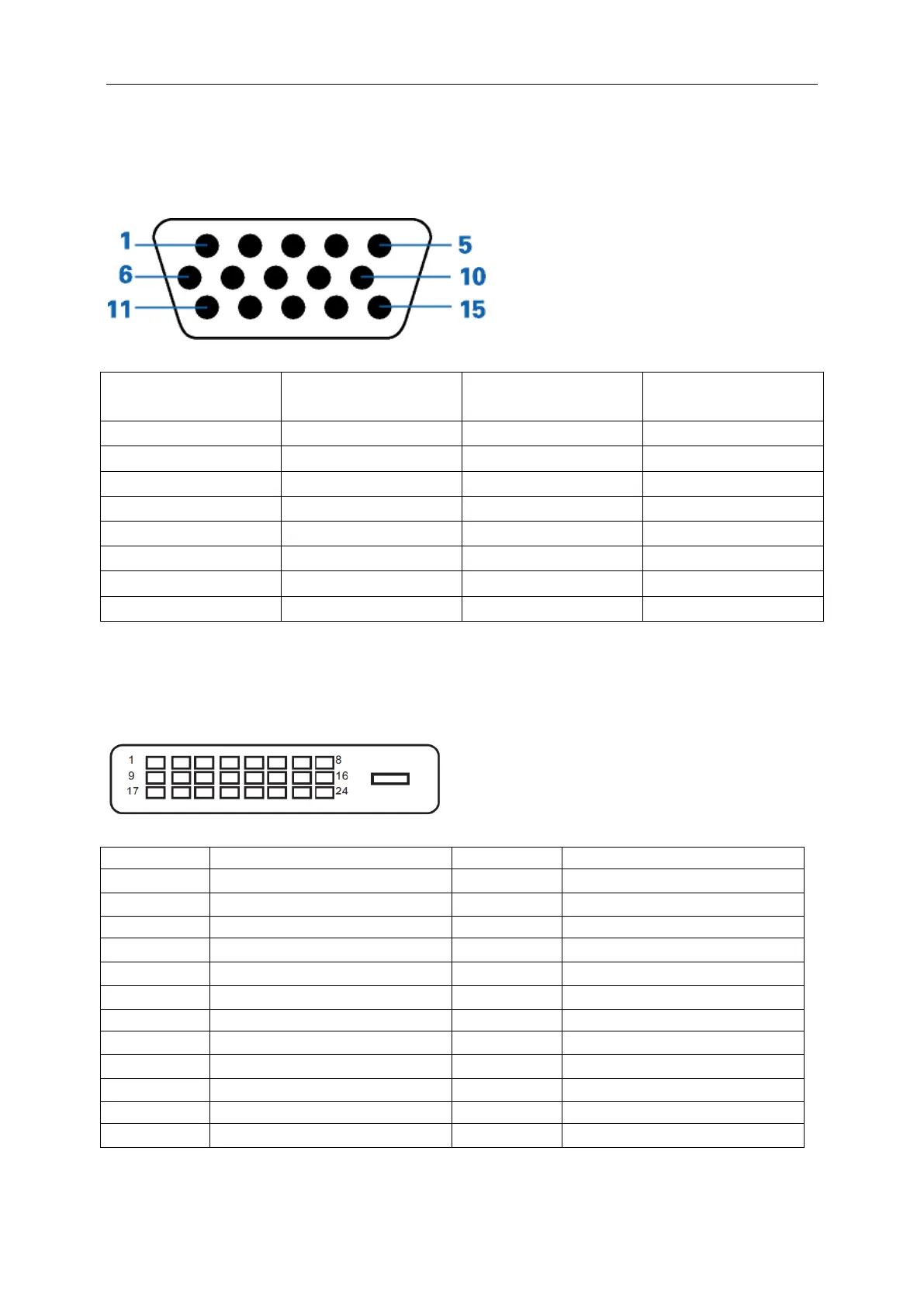

Pin Assignments
15-Pin Color Display Signal Cable
Pin Number
15-Pin Side of the
Signal Cable
Pin Number
15-Pin Side of the
Signal Cable
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
24-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS data 2－
13
TMDS data 3＋
2
TMDS data 2＋
14
＋5V Power
3
TMDS data 2/4 Shield
15
Ground (for+5V)
4
TMDS data 4－
16
Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6
DDC Clock
18
TMDS data 0＋
7
DDC Data
19
TMDS data 0/5 Shield
8
N.C.
20
TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10
TMDS data 1＋
22
TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
