AOC AGON PORSCHE DESIGN PD27 User Manual

25

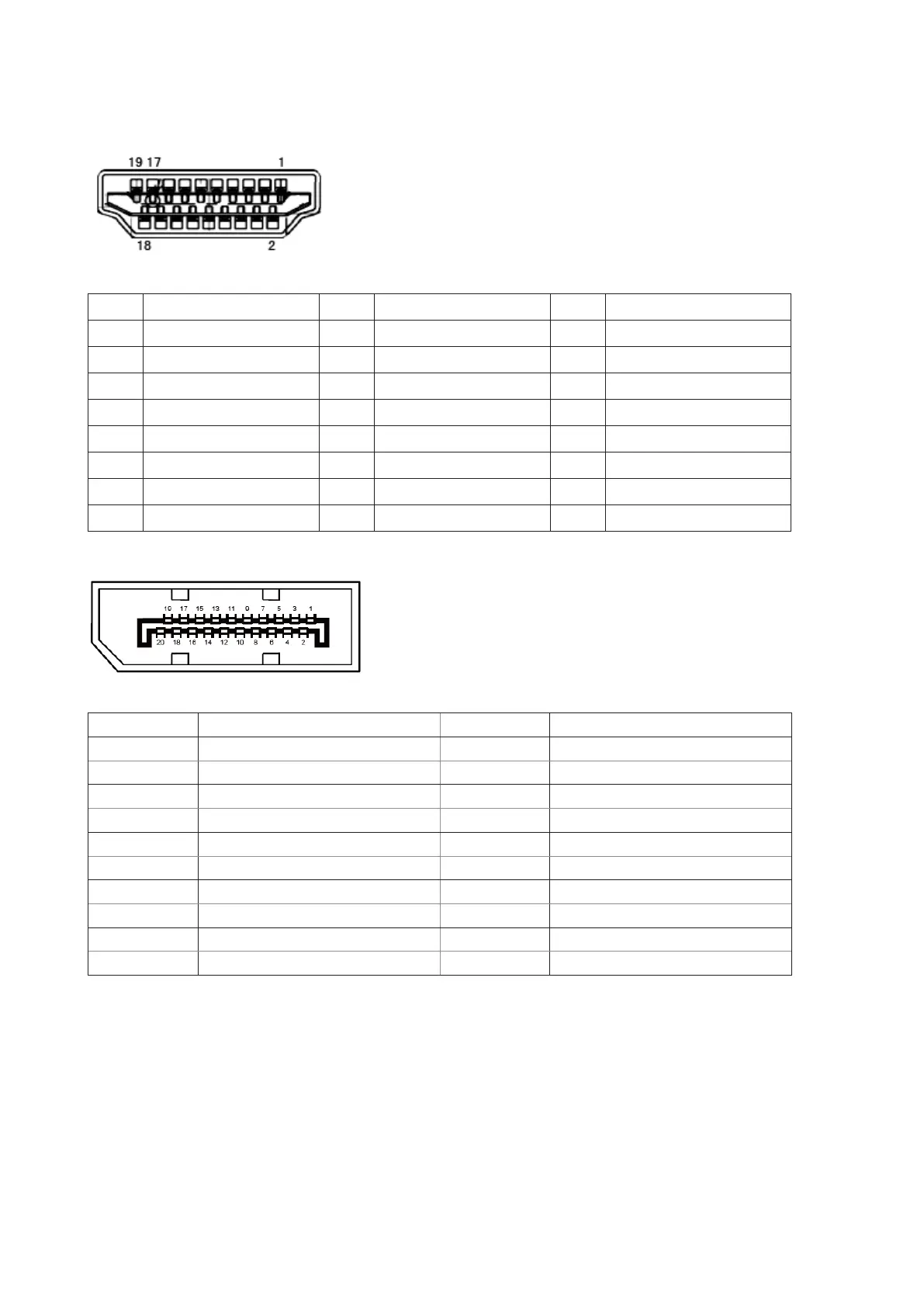

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC AGON PORSCHE DESIGN PD27 Specifications

General

Color	black
Screen Type	lcd
Tiltable	yes
Webcam	no
OS Compatibility	windows, linux, mac
Screen Size	27 inches
Panel Type	va
Aspect Ratio	16:9
Resolution	2560 x 1440
Native Resolution	2560 x 1440
Refresh Rate	240hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	0.5 milliseconds
Brightness	550 candela per square meter
Contrast Ratio	80, 000, 000:1
Synchronization	freesync premium pro (amd adaptive sync)
HDR	yes
HDR Format	vesa certified displayhdr 400, hdr 10
Built-In Speakers	yes
Interface Connectors	2 x displayport 1.4
HDMI Ports	2
USB Ports	4 x usb-a 3.0
USB Type B Ports	1
Display Port Inputs	2
Headphones Output	yes
Power Saving Mode	0.5 watts
Power Consumption	52 watts
Width with Stand	27.15 inches
Net Weight without Stand	19.62 pounds
