Connecting the Monitor

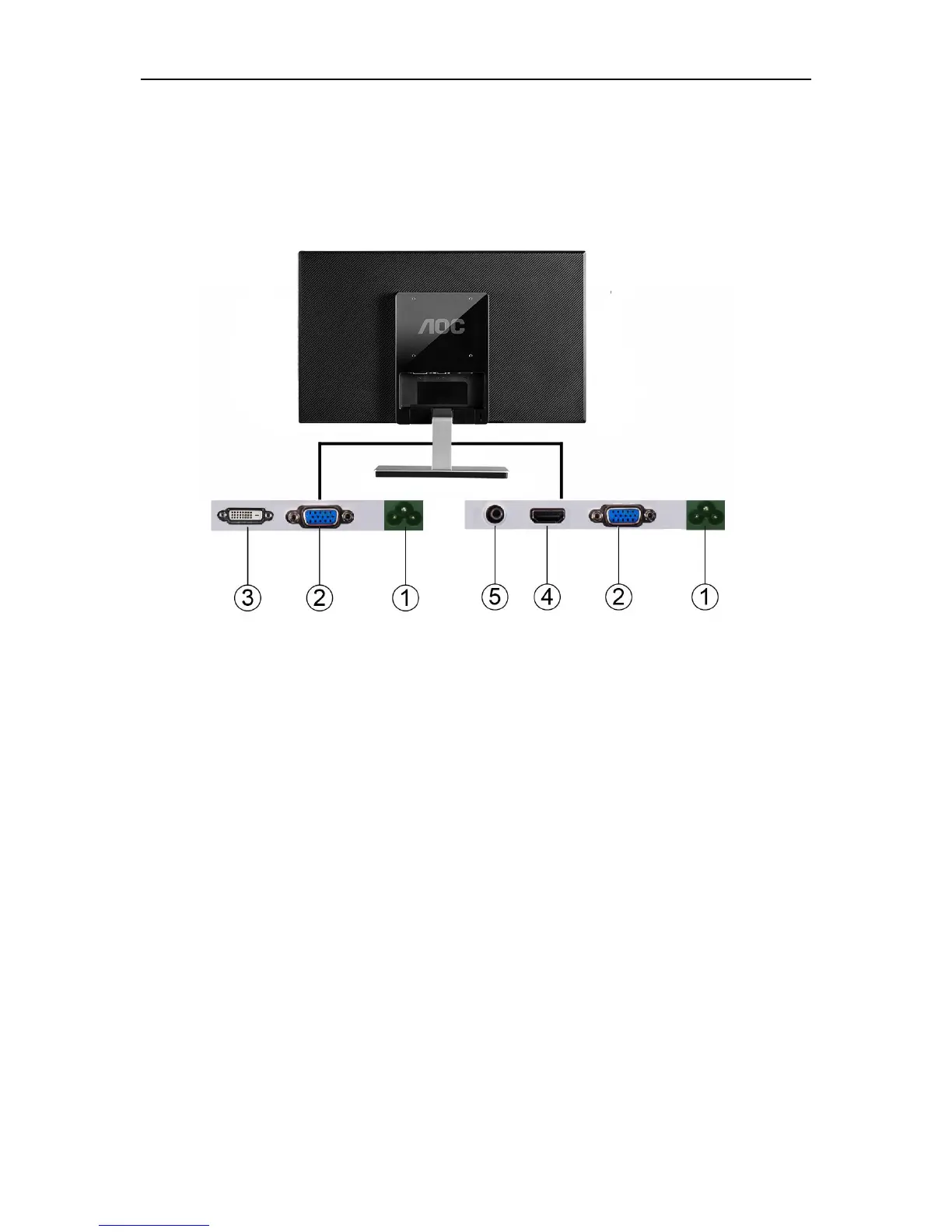

Cable Connections In Back of Monitor and Computer:
I2276VW I2276VWM
1. AC port
2. Analog(DB-15 VGA cable)
3. DVI (I2276VW)
4. HDMI/MHL(I2276VWM)
5. Earphone(I2276VWM)
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 (Optional –Requires a video card with DVI port)Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
4 (Optional –Requires a video card with HDMI/MHL port)Connect one end of the HDMI/MHL cable to the back of
the monitor and connect the other end to the computer’s HDMI/MHL port.
5 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
