AOC I2352VH User Manual

49

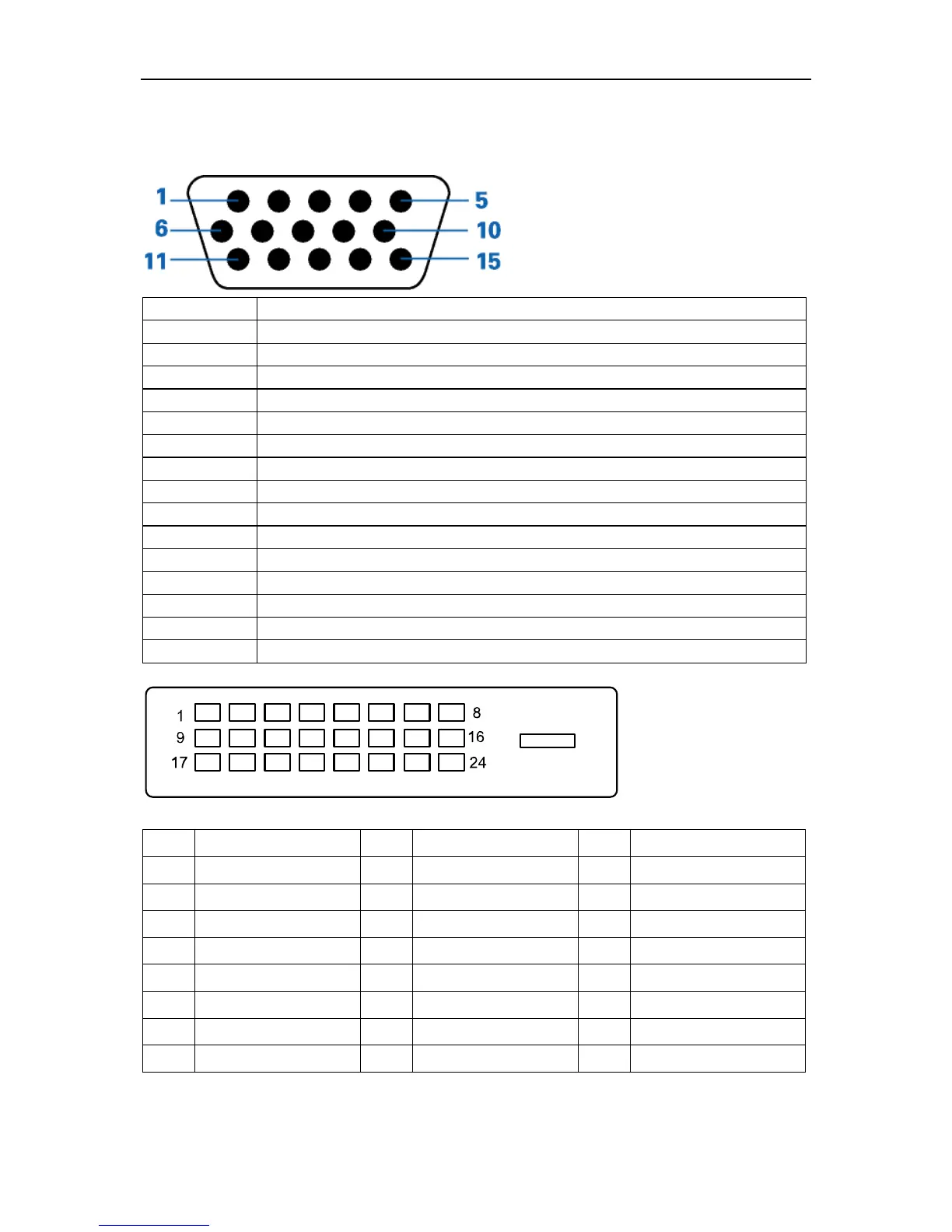

Pin Assignments
Pin Number
15-Pin Side of the Signal Cable
1 Video-Red
2
Video-Green
3 Video-Blue
4
Ground
5
Detect Cable
6 GND-R
7
GND-G
8 GND-B
9
+5V
10
Ground
11 Ground
12
DDC-Serial data
13 H-sync
14
V-sync
15
DDC-Serial clock
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1. TMDS Data 2- 9. TMDS Data 1- 17. TMDS Data 0-
2. TMDS Data 2+ 10. TMDS Data 1+ 18. TMDS Data 0+
3. TMDS Data 2/4 Shield 11. TMDS Data 1/3 Shield 19. TMDS Data 0/5 Shield
4. TMDS Data 4- / N.C. 12. TMDS Data 3- / N.C. 20. TMDS Data 5- / N.C.
5. TMDS Data 4+ / N.C. 13. TMDS Data 3+ / N.C. 21. TMDS Data 5+ / N.C.
6. DDC Clock 14. +5V Power 22. TMDS Clock Shield
7. DDC Data 15. DVI Cable Detect 23. TMDS Clock +
8. N.C. 16. Hot Plug Detect 24. TMDS Clock -
