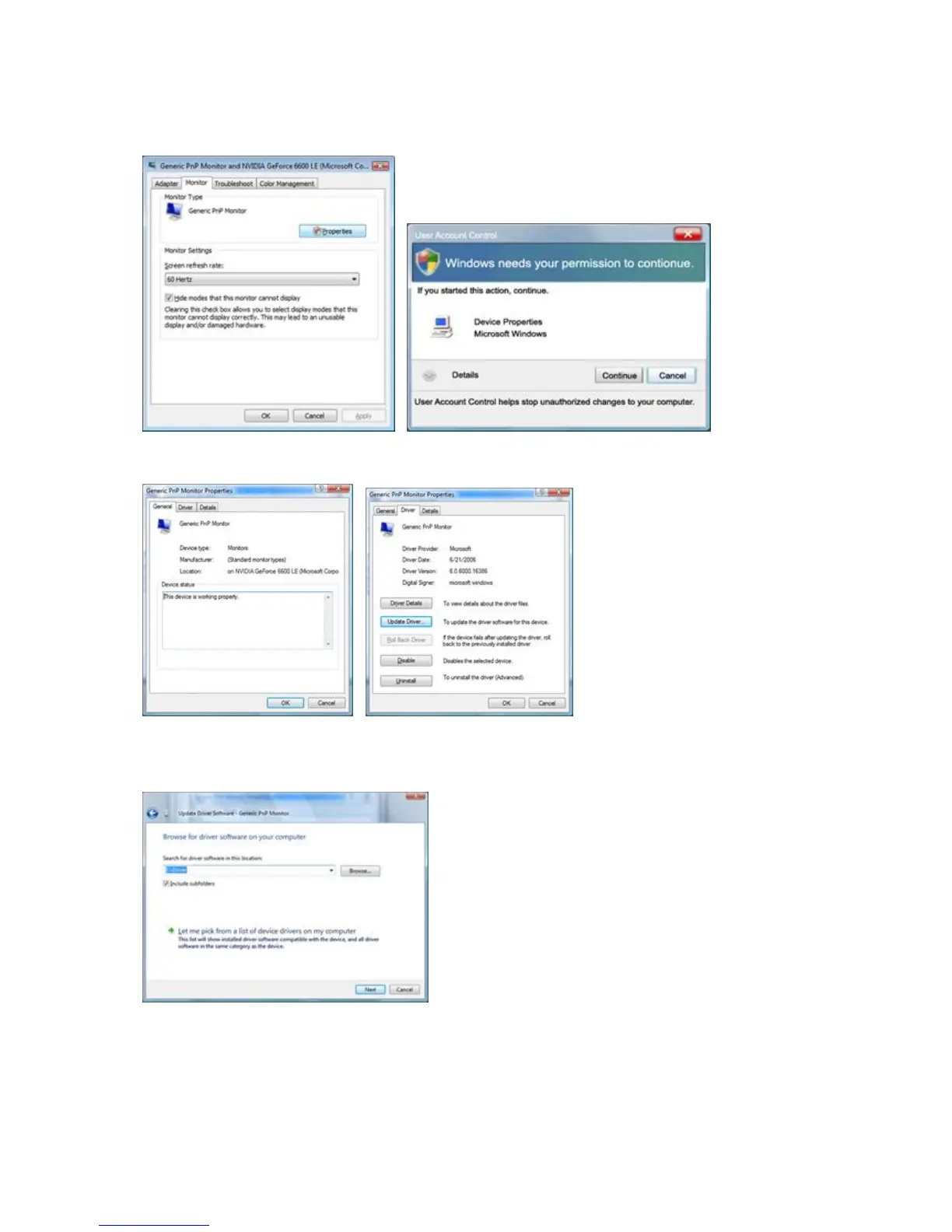

4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your
monitor is completed. The monitor can be used as is.
If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".
5. Click "Update Driver..." in the "Driver" tab.
6. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers
on my computer".
7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive
F:\Driver (CD-ROM Drive).
8. Select your monitor model and click on the 'Next' button.
9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.
39

AOC i2353Ph Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-

Weight and Dimensions

Depth (without stand)	185.7 mm
Width (without stand)	549.5 mm
Height (without stand)	388.3 mm
Weight (without stand)	2850 g
