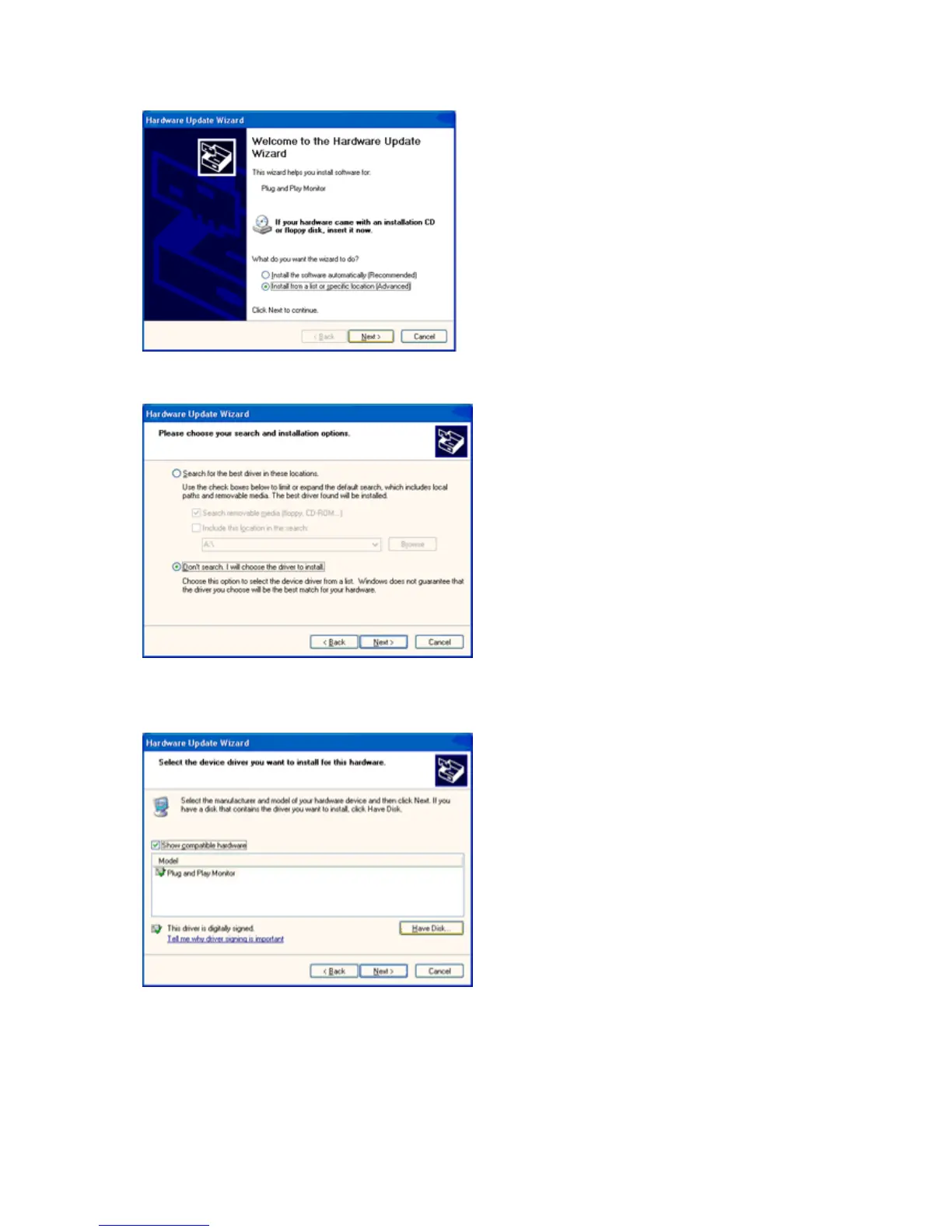

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:

(CD-ROM Drive).

11. Click on the 'Open' button, then click the 'OK' button.

12. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,

please click on the 'Continue Anyway' button.

13. Click on the 'Finish' button then the 'Close' button.

14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Other manuals for AOC i2353Ph

Questions and Answers:

Need help?

Do you have a question about the AOC i2353Ph and is the answer not in the manual?

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p, 480p, 576p, 720p
Viewable size, vertical	286.4 mm
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.2 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 350, 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
HDCP	Yes
DVI-D ports quantity	0
RMS rated power	4 W
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating altitude	0 - 3658 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Market positioning	-
