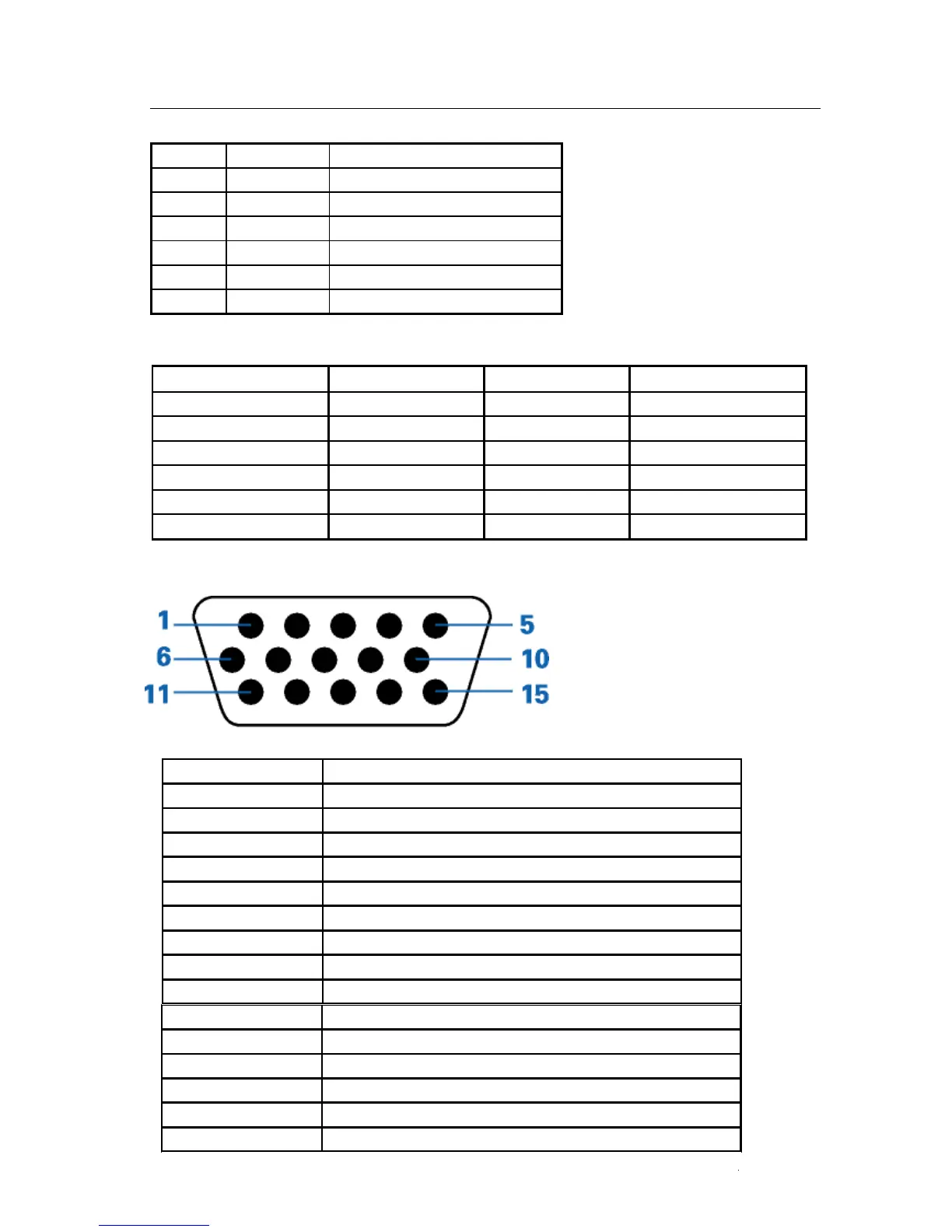

Pin Assignments

Pin Number 15-Pin Side of the Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 N.C.

5 Detect Cable

6 GND-R

7 GND-G

8 GND-B

9 +5V

10 Ground

11 N.C.

12 DDC-Serial data

13 H-sync

14 V-sync

15 DDC-Serial clock

MHL

HDMI



Format Resolution Verticalfrequency

480p 640x480 60Hz

480p 720x480 60Hz

576p 720x576 50Hz

720p 1280x720 50Hz,60Hz

1080i 1920x1080 50Hz,60Hz

1080p 1920x1080 50Hz,60Hz

Format Resolution Type Vertical frequency

480p 640 x 480 SD 60Hz

480p 720 x 480 SD 60Hz

576p 720 x 576 SD 50Hz

720p 1280 x 720 HD 50Hz , 60Hz

1080i 1920 x 1080 HD 50Hz , 60Hz

1080p 1920 x 1080 HD 30Hz
