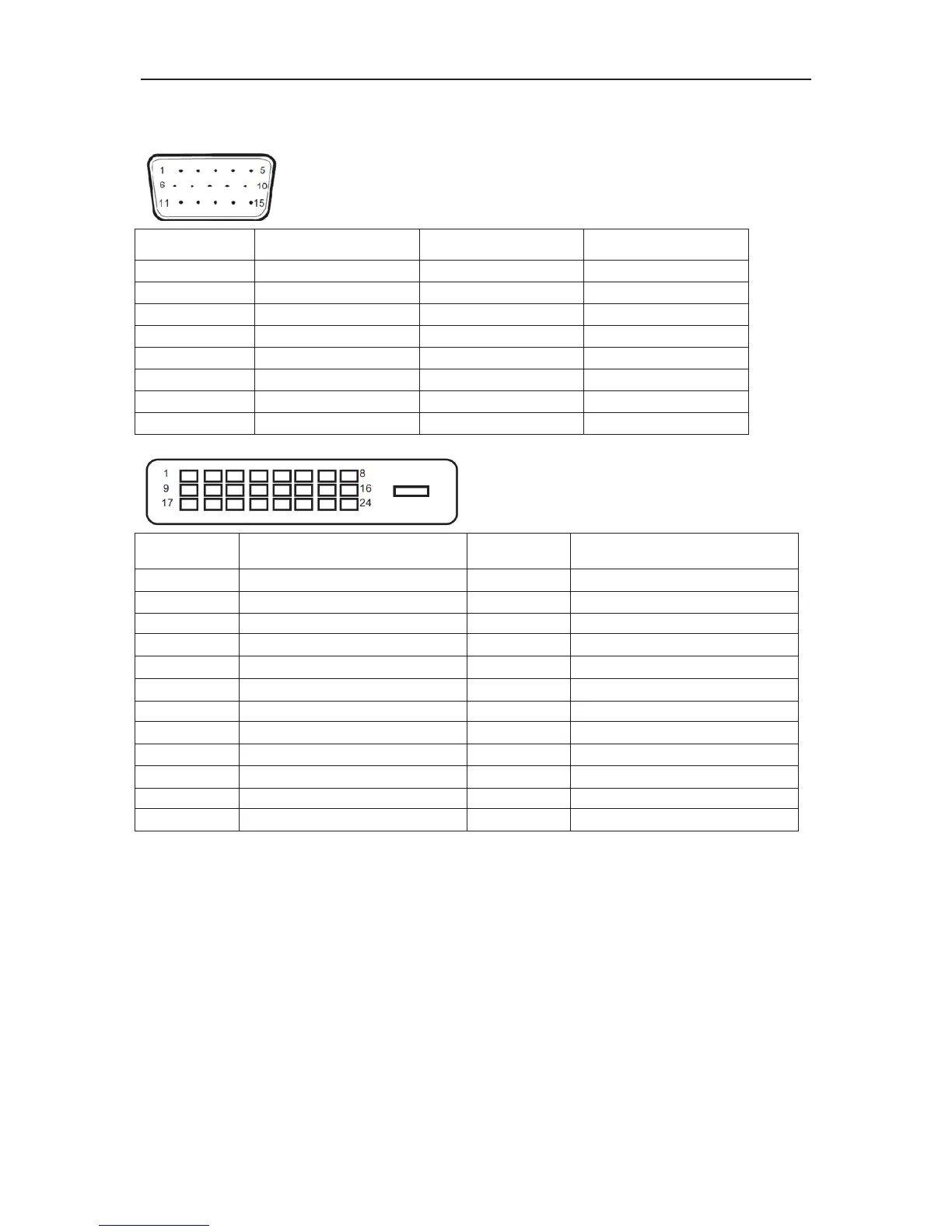

Pin Assignments
Pin Number
15-Pin Side of the
Signal Cable
Pin Number
15-Pin Side of the
Signal Cable
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
Pin Number
24-Pin Color Display Signal
Cable
Pin Number
24-Pin Color Display Signal
Cable
1 TMDS data 2ˉ 13 TMDS data 3ˇ
2 TMDS data 2ˇ 14 ˇ5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4 TMDS data 4ˉ 16 Hot Plug Detect
5 TMDS data 4ˇ 17 TMDS data 0ˉ
6 DDC Clock 18 TMDS data 0ˇ
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5ˉ
9 TMDS data 1ˉ 21 TMDS data 5ˇ
10
TMDS data 1ˇ
22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12 TMDS data 3ˉ 24 TMDS Clock ˉ
