AOC L32DK99FU - 10 Exploded View

65

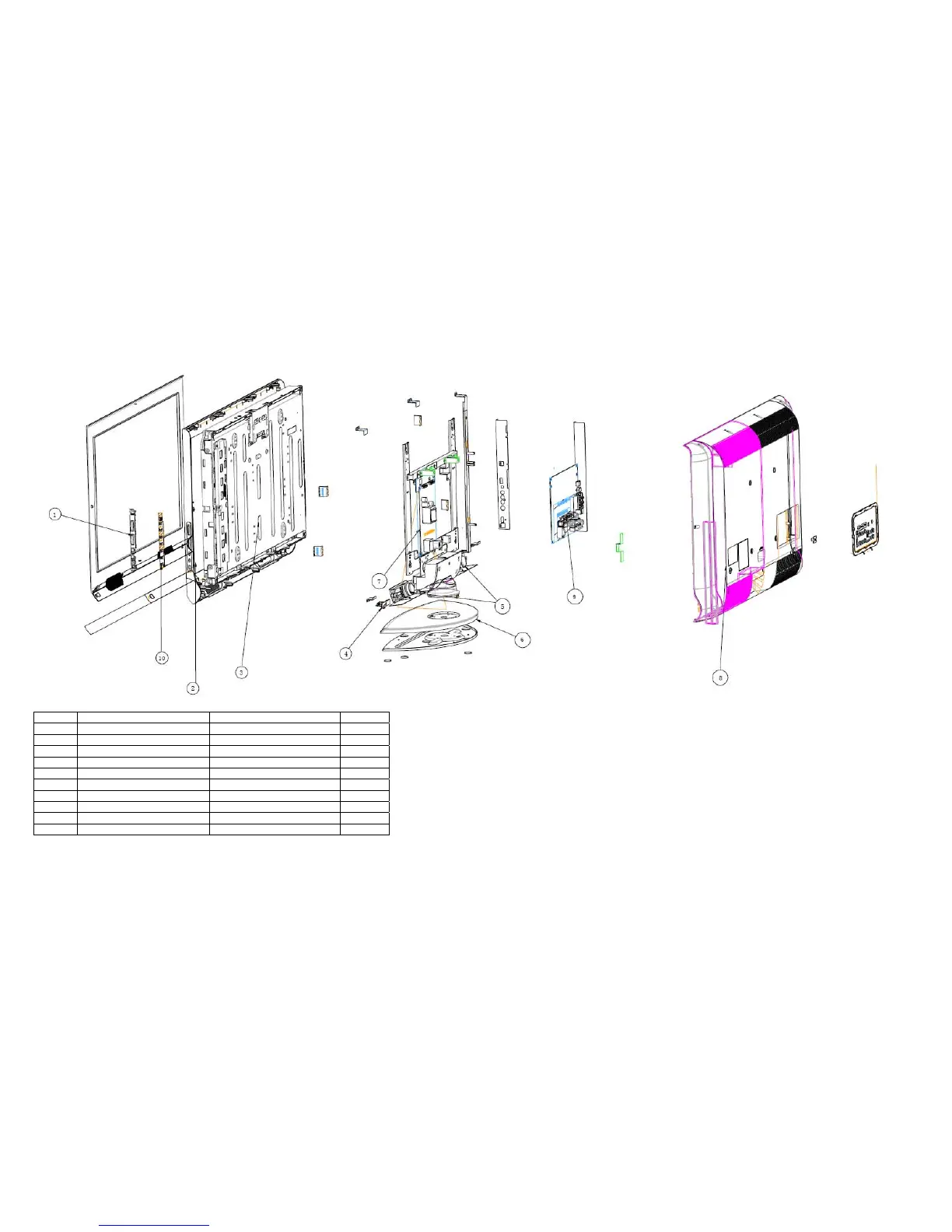

10. Exploded View
For 22”
ITEM PART NAME PART NO QUANTITY
1 P33T0132AFV 1L0100 Key FUNCTION 1
2 P34T0302AFV 1L0130 BEZEL 1
3 750TVU315W4711N000 PANEL T315HW04 V7 TW AUO 1
4 IRPFAZA2 IR BOARD ASS'Y 1
5 078G0100A03 K SPEAKER 8R 10W 1
6 P34T0305ADT 1L0133 BASE 1
7 ADTVA2418SA2 Power PCB Assy 1
8 P34T0304ADT 1L0130 REAR COVER 32 1
9 CBPFA2QCZ4 MAIN BOARD ASS'Y 1
10 ADTVA2418SA2 Power PCB Assy 1
