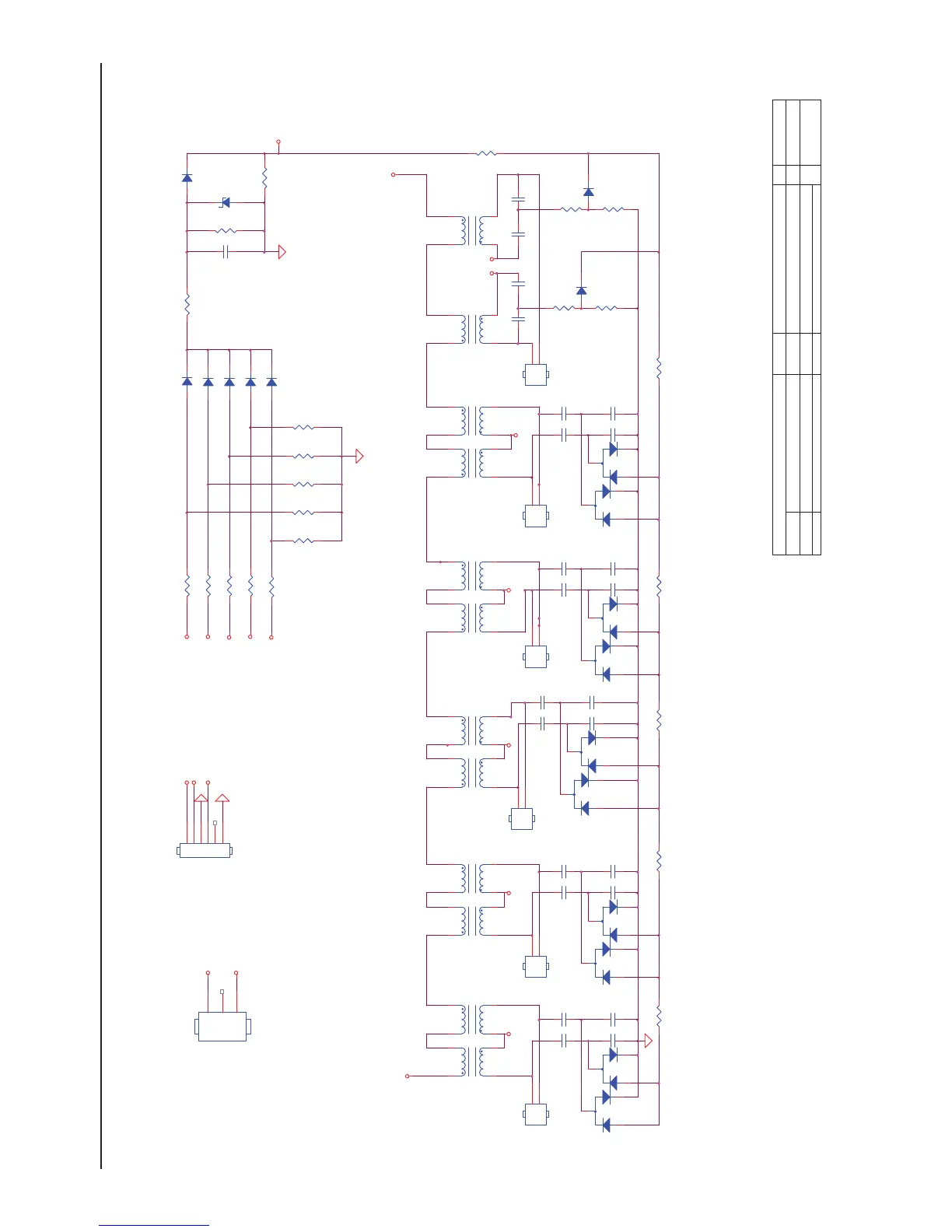

9.3 Inverter Board 715G3333 1
D8809 BAV99
3
1
2
C8801
1N 50V
IS2
C8817 18N 50V
P6
CN8803 CONN
1 2
R8814
510 OHM 1/8W
D8801 1N4148
R8808
100KOHM +-5% 1/8W
R8821
1K OHM 1/8W +-5%
C8806 10pF/6KV
C8803
10pF/6KV
D8811 BAV99
3
1
2
P6
CN8808 CONN
1 2
R8809
100 OHM +-5% 1/8W
T8804 POWER X'FMR
4
1 2
6
T8802 POWER X'FMR
4
1 2
6
VS
D8817 BAV99
3
1
2
D8804 1N4148
C8807
10pF/6KV
CN8802 CONN
1 2 3
R8804
10KOHM +-5% 1/8W
C8805 10pF/6KV
R8822
1K OHM 1/8W +-5%
D8822 LL4148
P2
R8819
1K OHM 1/8W +-5%
T8807
POWER X'FMR
6
21
4
C8802 10pF/6KV
R8803 39K OHM 1/8W
P1
C8815
18N 50V
TA
C8808 10pF/ 6KV
T8805
POWER X'FMR
6
21
4
T88 08 POWER X'FMR
4
1 2
6
P5
C8814
18N 50V
VS
P4
R8811
510 OHM 1/8W
C8809 10pF/ 6KV
HTC MODEL
P2
CN8801
WIRE
1 2 3 4 5 6
R8817 6.8K OHM 1% 1/8W
C8819
1NF 50V
R8802 100 OHM +-5% 1/8W
C8813 10pF/6KV
CN8805 CONN
1 2
D8815 BAV99
3
1
2
A
B
12Thursday , February 26, 2009
715G3333-1
02.INVERTER
OEM MOD EL Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
⿄⠍
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㍀
䱨
⪰
㌾
㝍
D8813 BAV99
3
1
2
R8801 100 OHM +-5% 1/8W
C8812 10pF/6KV
C8821 18N 50V
D8807 1N4148
C8811 10pF/6KV
C8825
18N 50V
D8814 BAV99
3
1
2
CN8807 CONN
1 2
D8805 1N4148
T8811
POWER X'FMR
6
21
4
T88 01
POWER X'FMR
6
21
4
IS1
D8820
1N4148
TB
P1
D8812 BAV99
3
1
2
CN 8806 CONN
1 2
C8804 10pF/6KV
D8819 BAV99
3
1
2
C8820
18N 50V
T8803
POWER X'FMR
6
21
4
C8810 10pF/6KV
TB
CN8804 CONN
1 2
D8818 BAV99
3
1
2
T8806 POWER X'FMR
4
1 2
6
C8823 18N 50V
D8806 MTZJ T-72 5.1B
R8810
510 OHM 1/8W
T88 09
POWER X'FMR
6
21
4
T88 12 POWER X'FMR
4
1 2
6
C8824
18N 50V
P5
D8802 1N4148
C8822
18N 50V
IS1 IS2
T8810 POWER X'FMR
4
1 2
6
R8816 39K OHM 1/8W
D8808 BAV99
3
1
2
R8807
100 OHM +-5% 1/8W
C8818 1NF 50V
R8812
510 OHM 1/8W
C8816
18N 50V
R8815 510 OHM 1/8W
P4
R8806 100 OHM +-5% 1/8W
R8805
470K OHM 1/8W
R8820
1K OHM 1/8W +-5%
R8823 0 OHM 1/8W
D8821 1N4148
TA
R8818
1K OHM 1/8W +-5%
R8813 6.8K OHM 1% 1/8W
