CONNECTING EQUIPMENT
Coaxial (RF)
Using Your Antenna or Digital Cable for
DTV
.
1. Turn off the HDTV.

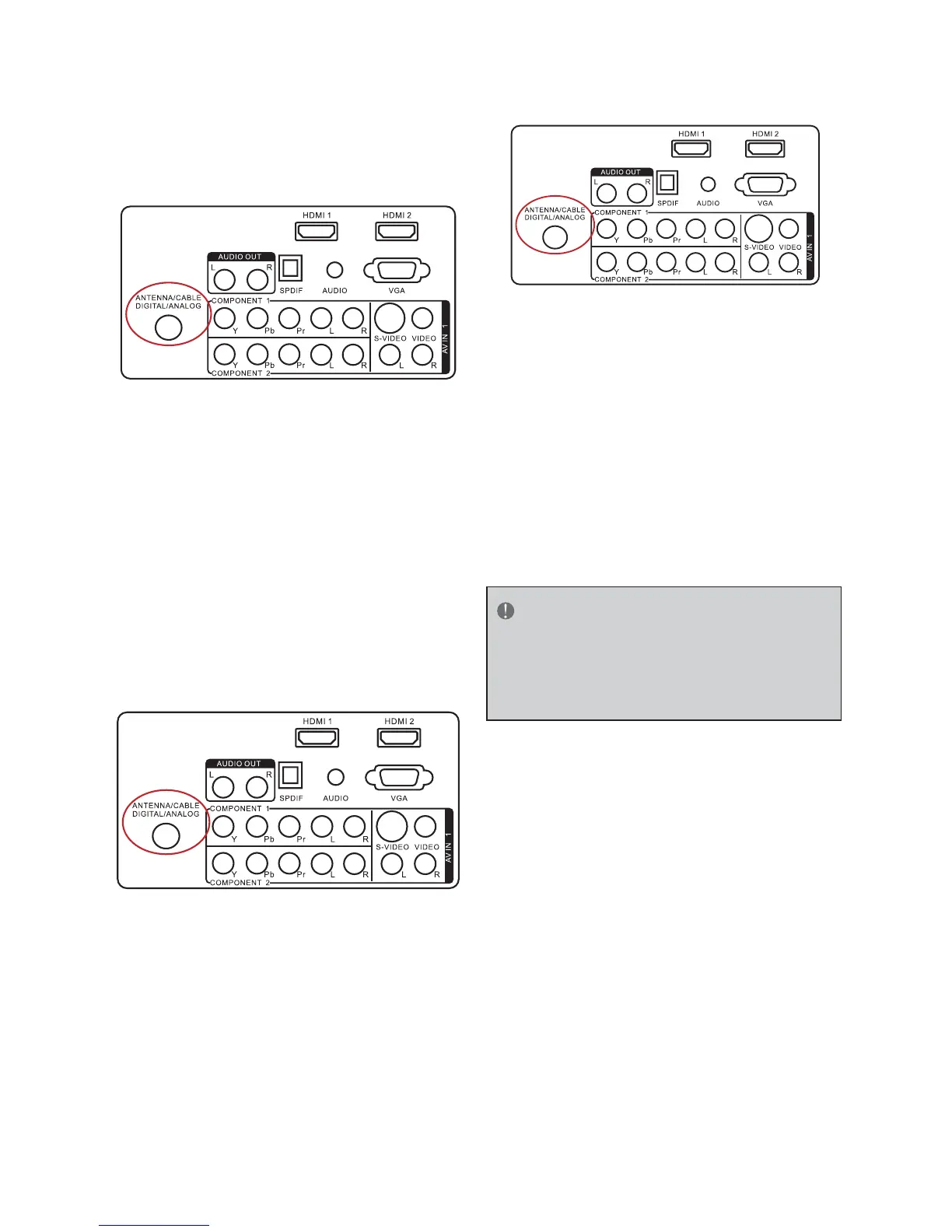

2. Connect the coaxial (RF) connector from
your antenna or digital cable (out-of-
the-wall, not from the Cable Box) to the
ANTENNA/CABLE DIGITAL/ANALOG
connector.
3. Turn on the HDTV.
4. Select TV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the TV button on the Remote
Control.
Using Your Antenna or Cable for DTV
.
1. Turn off the HDTV.
2. Connect the coaxial (RF) connector from
your antenna or cable (out-of-the-wall, not
from the Cable Box) to the ANTENNA/
CABLE DIGITAL/ANALOG connector at
the rear of the HDTV
3. Turn on the HDTV.
4. Select TV using the SOURCE button on
the remote, side of the HDTV, or pressing
the TV button on the Remote Control.
Using the Antenna or Cable for your
VCR
1. Turn off the HDTV and VCR.
2. Connect the “Output to TV”, “RF Out”
or “Antenna Out” connector on the rear
of your VCR to the ANTENNA/CABLE
DIGITAL/ANALOG connector at the rear
of the HDTV.
3. Turn on the HDTV and VCR.
4. Select TV using the SOURCE button on
the remote, side of the HDTV or directly
by pressing the TV button on the Remote
Control.
NOTE
f If you have an off-air antenna or cable TV,
connect it to the “Antenna In” connector
on the rear of your VCR.
Connecting Your HDTV Set-Top Box
Using HDMI
HDTV Set-Top Boxes that have a HDMI digital
interface should be connected to the HDMI
input of the LCD HDTV for optimal results.

AOC L32W961 Specifications

General

Comb filter	3D
Response time	6.5 ms
Display diagonal	32 \
Display brightness	500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	20000:1
Contrast ratio (typical)	2000:1
Supported graphics resolutions	1366 x 768
Manual	Yes
Package depth	218 mm
Package width	899 mm
Package height	680 mm
Package weight	15000 g
Certification	FCC, cULus, RoHS, EPA3.0
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
PC Audio in	No
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Digital audio optical out	1
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	200 x 200 mm
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	180 W
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	232.5 mm
Width (with stand)	792.7 mm
Height (with stand)	559.5 mm
Weight (with stand)	12300 g
Depth (without stand)	98 mm
Height (without stand)	519.5 mm
Weight (without stand)	11000 g
