14

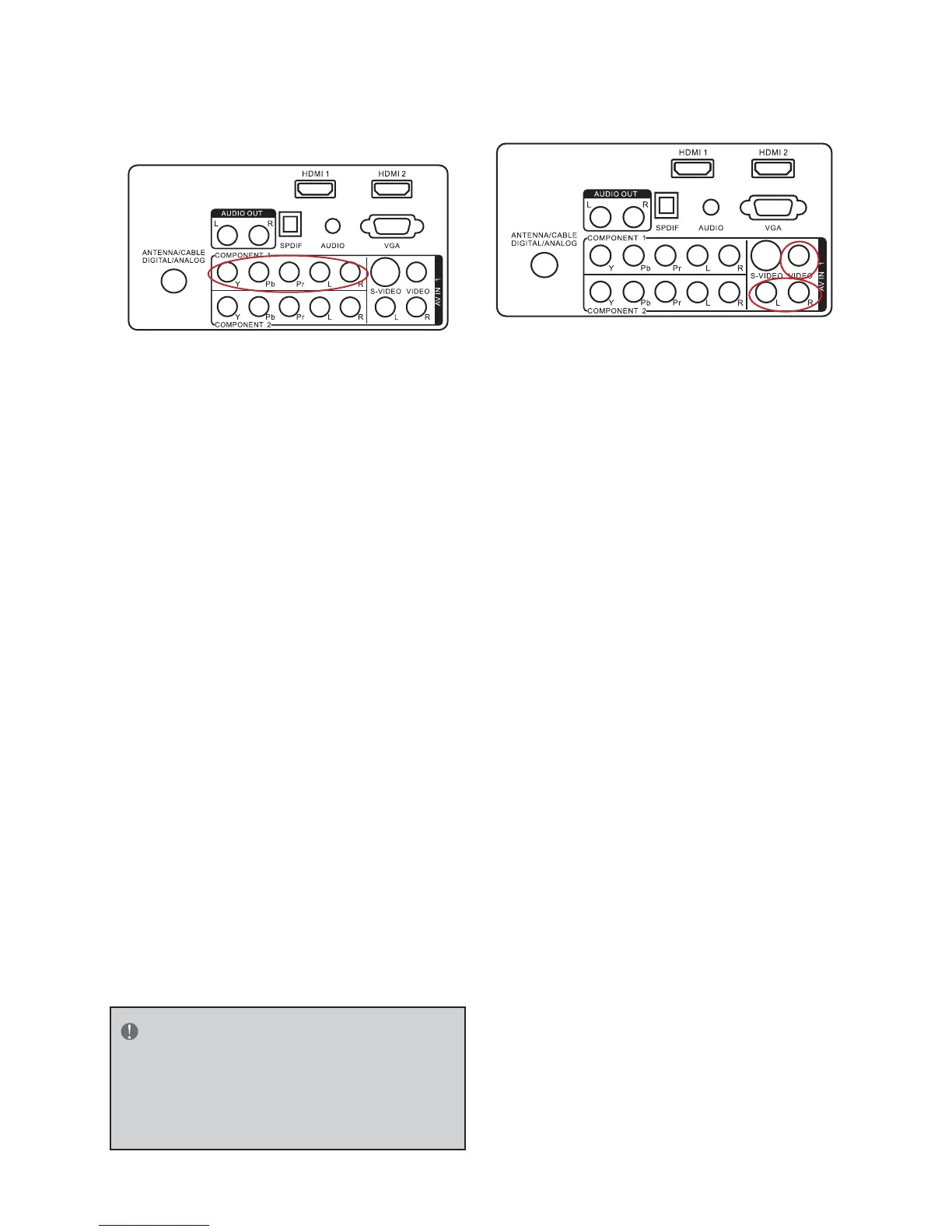

Using Component Video
Connecting your HDTV Set-Top Box
(Better):
1. Turn off the HDTV and HDTV Set-Top
Box.
2. Connect the Pr (red color) connector
on your HDTV Set-Top Box to the
corresponding Pr (red color) connector in
the Component group.
3. Connect the Pb (blue color) connector
on your HDTV Set-Top Box to the
corresponding Pb (blue color) connector
in the Component group.
4. Connect the Y (green color) connector
on your HDTV Set-Top Box to the
corresponding Y (green color) connector
in the Component group.
5. Using an audio cable (red and white
connectors), connect the cable to the
audio output connectors associated with
the Component output on your HDTV
Set-Top Box and connect the other end to
the audio connectors associated with the
Component.
6. Turn on the HDTV and HDTV Set-Top
Box.
7. Select Component using the
SOURCE
button on the remote, side of the HDTV
or directly by pressing the COMP button
on the Remote Control.
NOTE
f
Refer to your HDTV Set-Top Box user
manual for more information about the
video output requirements of the product
or consult your cable or satellite operator.
Connecting Your Basic Set-Top Box
Using Composite Video
1. Turn off the HDTV and Set-Top Box.
2. Using an AV Cable, connect the Video
(yellow color) connector on your Set-Top
Box to the corresponding Video (yellow
color) connector in the AV group at the
rear of the HDTV.
3. Using the red and white connectors,
connect the cable to the audio output
connectors associated with the Video
output on your Set-Top Box and connect
the other end to the audio connectors
associated with the AV input at the rear of
the HDTV.
4. Turn on the HDTV and Set-Top Box.
5. Select AV using the
SOURCE button on
the remote, side of the HDTV or directly
by pressing the VIDEO button on the
Remote Control.

Other manuals for AOC L32W961

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC L32W961 and is the answer not in the manual?

AOC L32W961 Specifications

General IconGeneral
Comb filter3D
Response time6.5 ms
Display diagonal32 \
Display brightness500 cd/m²
Display resolution1366 x 768 pixels
Display technologyLCD
Native aspect ratio16:9
Contrast ratio (dynamic)20000:1
Contrast ratio (typical)2000:1
Supported graphics resolutions1366 x 768
ManualYes
Package depth218 mm
Package width899 mm
Package height680 mm
Package weight15000 g
CertificationFCC, cULus, RoHS, EPA3.0
Tuner typeAnalog & digital
Analog signal format systemNTSC
Digital signal format systemATSC
PC Audio inNo
HDMI ports quantity3
SCART ports quantity0
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity2
Digital audio optical out1
Product colorBlack
LED indicatorsY, Stand-by
Panel mounting interface200 x 200 mm
Cables includedAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)180 W
RMS rated power20 W
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)232.5 mm
Width (with stand)792.7 mm
Height (with stand)559.5 mm
Weight (with stand)12300 g
Depth (without stand)98 mm
Height (without stand)519.5 mm
Weight (without stand)11000 g
