37” LCD TV AOC L37W861
11

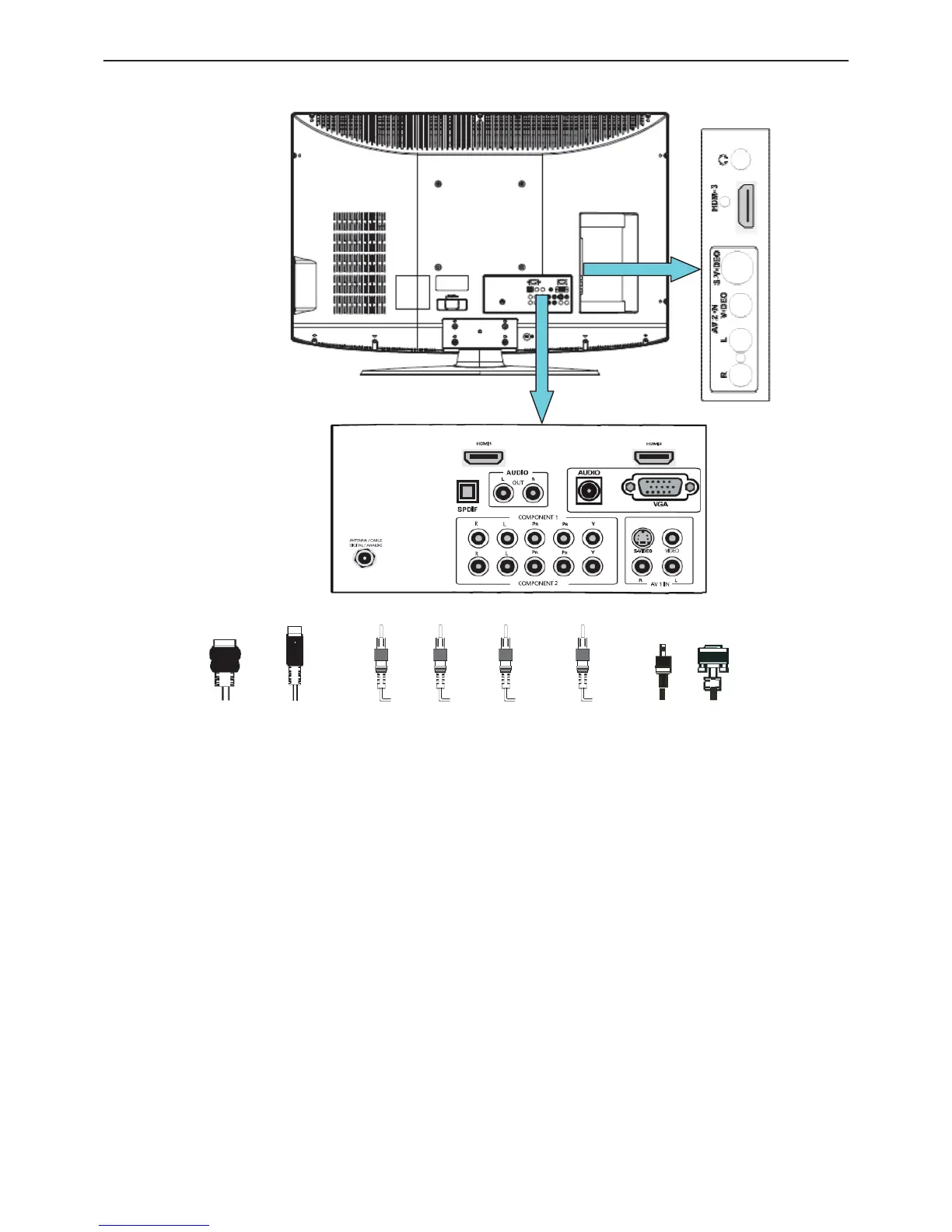

2.3 How to Connect
HDMI S-Video Composite Pr Pb Y PC Audio in /15-pin D-Sub
1. HDMI – Connect the primary source for digital video such as a DVD multimedia player or set top box through
this all digital connector. The white color band on the rear of the TV indicates this connection.
2. RGB PC – Connect the video and audio cables from a computer here.
3. AV/S-VIDEO IN – Connect the primary source for composite video devices, such as a VCR or video game.
Use the white and red connectors to connect the external audio from the same source. The signal being
carried by the S-Video cable and connector, if connected, will take priority over the Video RCA connector (yellow
connector).
4. COMPONENT (YPb/CbPr/Cr with Audio L/R) – Connect the primary source for component video devices such
as a DVD Player or set top box here. From left to right, use red for Pr, blue for Pb, green for Y, red for right
audio (R) and white for left audio (L) inputs.
5. DTV – Connect to an antenna or digital cable (out-of-the-wall, not from Cable Box) for Digital TV.*
6. SPDIF (Optical Digital Audio Out) - When a digital audio signal is associated with the input selected for
viewing, the digital audio will be available on this SPDIF connection to your home theater system.
Once your equipment is connected, use the following procedure to view the input signal:
Press the source button on the remote controller to select the relevant source to view. (Ex: Press VIDEO
button to select “Composite Rear” if you have connected a video recorder to Composite Rear socket.)
