3. Input/Output Specification
3.1 RGB Signal input

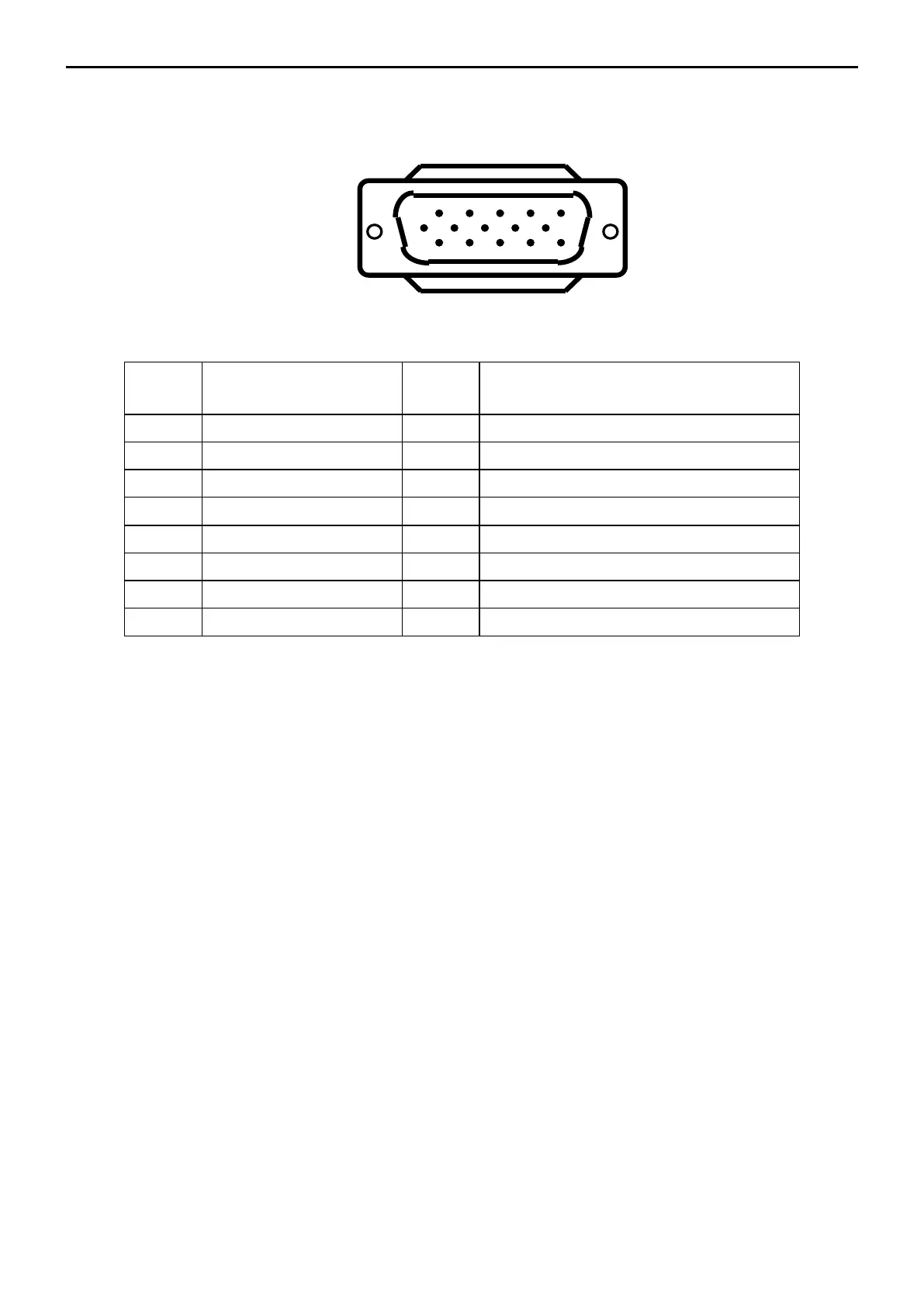

15 - Pin Color Display Signal Cable
Pin No.
Description
Pin No.
Description
1
Red Video
9
No Pin!
2
Green Video
10
Sync Ground
3
Blue Video
11
Not Used
4
Not Used
12
Serial Data for DDC
5
Ground
13
H-Sync.
6
Red Video Ground
14
V-Sync.
7
Green Video Ground
15
Serial Clock for DDC
8
Blue Video Ground
1
6
11
15
5
10

AOC L42W781HS Specifications

General

Brand	AOC
Model	L42W781HS
Category	LCD TV
Language	English
