42‟‟ LCD TV AOC L42W781HS
23

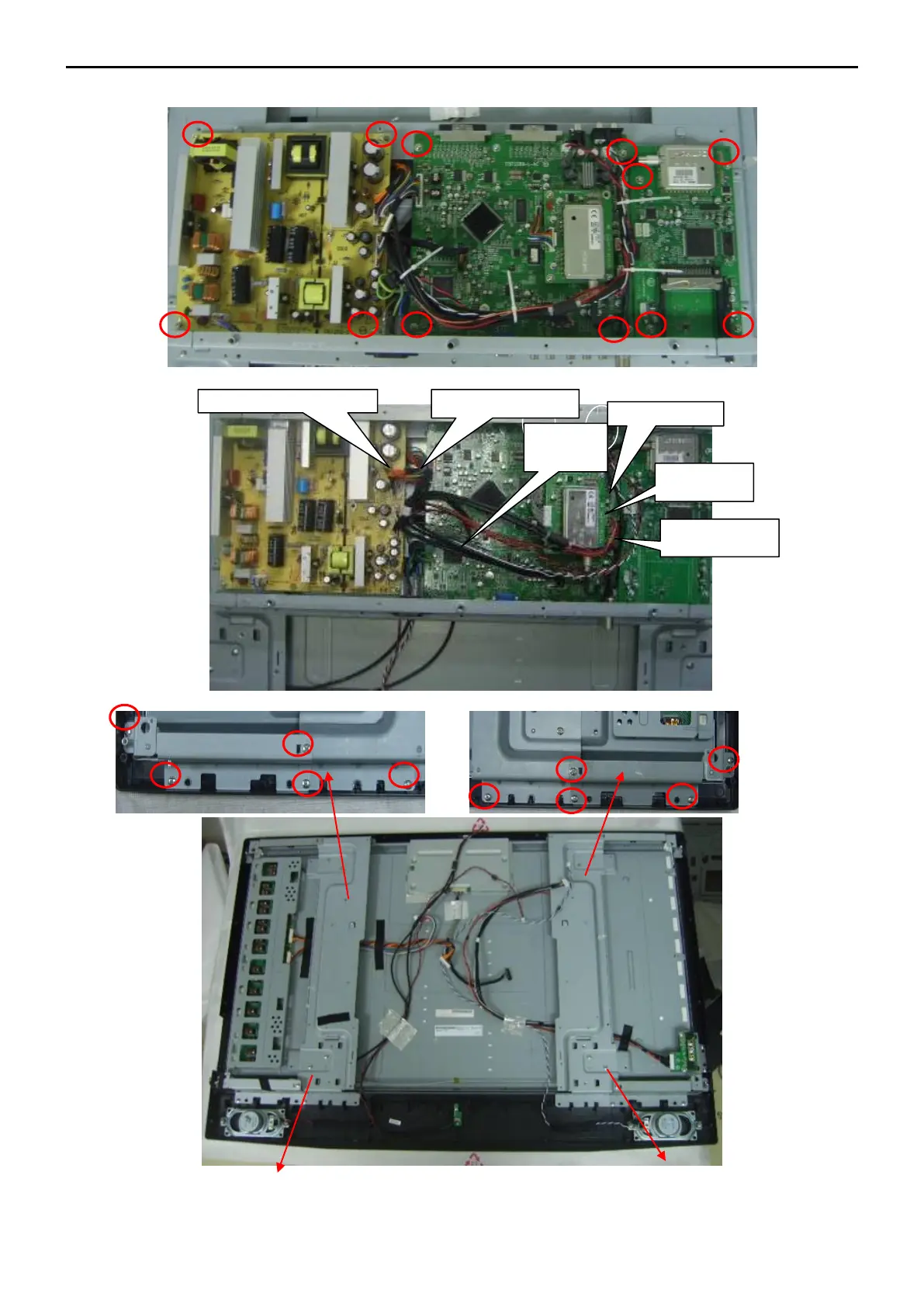

6．Disconnect the connector or wire and remove the screws marked in red .
7．Remove the screws on the boards marked in red.
Inverter wire PIN*2
Main board wire PIN
LVDS wire
PIN
Side board
wire PIN
Key board wire
PIN
Speaker PIN*2
