AOC LC32W033 User Manual

28

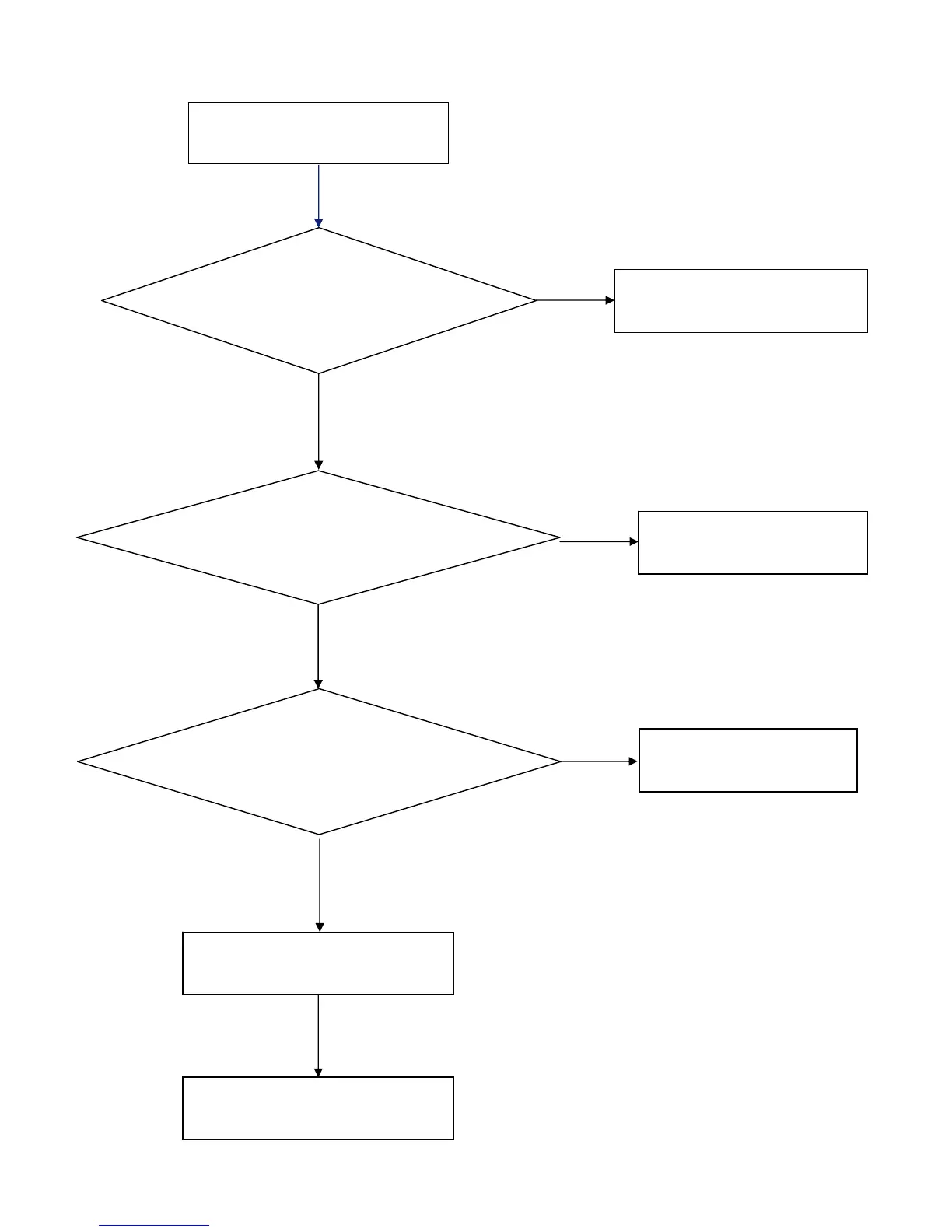

2. No Enciende
Revise si el receptor IR es normal
(Chequee tecla power del control remoto, si
equipo no responde significa que es anormal).
No inicia (LED naranjo)
Reemplace main board
Reemplace la Power board
No
Si
No
Si
No
No
Reemplace power board
Reemplace key board
Si
Reemplace IR board
Salida Power board＝24V？
Revise si el botón de power funciona

AOC LC32W033 Specifications

General

Display Type	LCD
Aspect Ratio	16:9
Display Size	32 inches
Screen Size	31.5 inches
Resolution	1366 x 768
Input Ports	HDMI, VGA, Composite, Component

Summary

Safety Precautions

Important Safety Notices

Essential safety guidelines for service personnel to minimize risks during repair operations.

Warning on Substitute Parts

Using non-specified replacement parts may create shock, fire, or other hazards.

General Specifications

Input/Output Specifications

Repair Flow Charts

Troubleshooting: No Power

Diagnostic steps for when the TV does not turn on or show power.

Troubleshooting: TV Not Turning On

Troubleshooting steps for when the TV does not power on (orange LED).

Troubleshooting: Abnormal Picture

Diagnostic steps for issues causing abnormal or distorted picture display.

Troubleshooting: No Picture
