7. Adjustment
7.1 ADC Adiustment
It’s no need to adjust the white balance for this model, do ADC only.

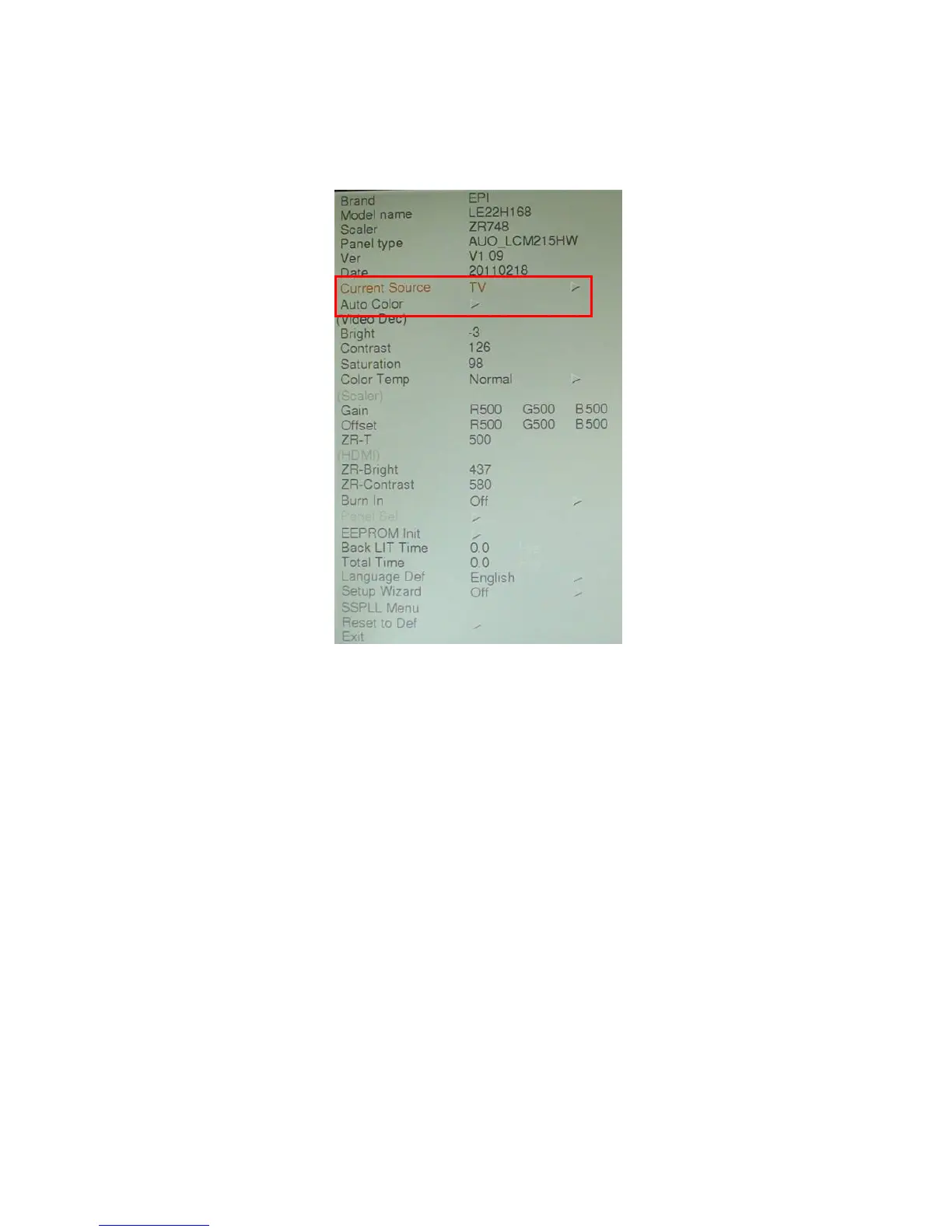

Step1: Turn on the TV, press “Menu”, then press number key 1 Æ 9 Æ 9 Æ 9 and “OK”, it will achieve the factory
mode. Take LE22H168 for example:
Step2: Change TV, press the “Current Source” to Component mode and change signal to 480i mode(TIMING 310),
Pattern 122(SMPTE BAR), press the “Auto Color”;
Step3: Change TV, press the “Current Source” to PC mode and change signal to PC TIMING 137(1024X768);
Pattern 147(16 Grays), press the “Auto Color”.
