AOC LE19D1331/30 - Page 17

17

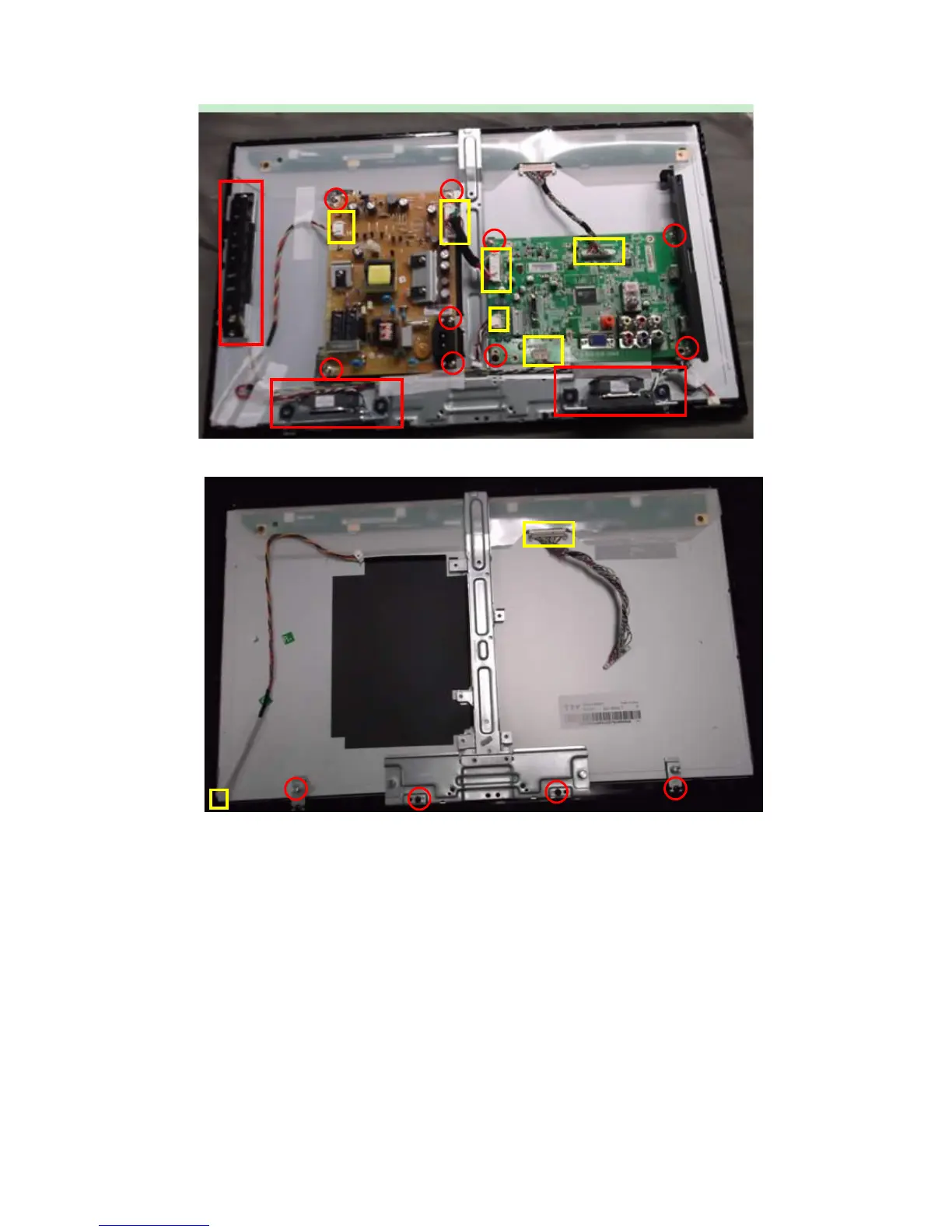

3. Disconnect the PINS marked in yellow .Remove the screws marked in red to remove SPEAKER,MAIN
BOARD,POWER BOARD,IR BOARD and KEY BOARD.
4. Disconnect the PINS marked in yellow .Remove the screws to remove BKT_ STAND, BKT_HOLDER.
