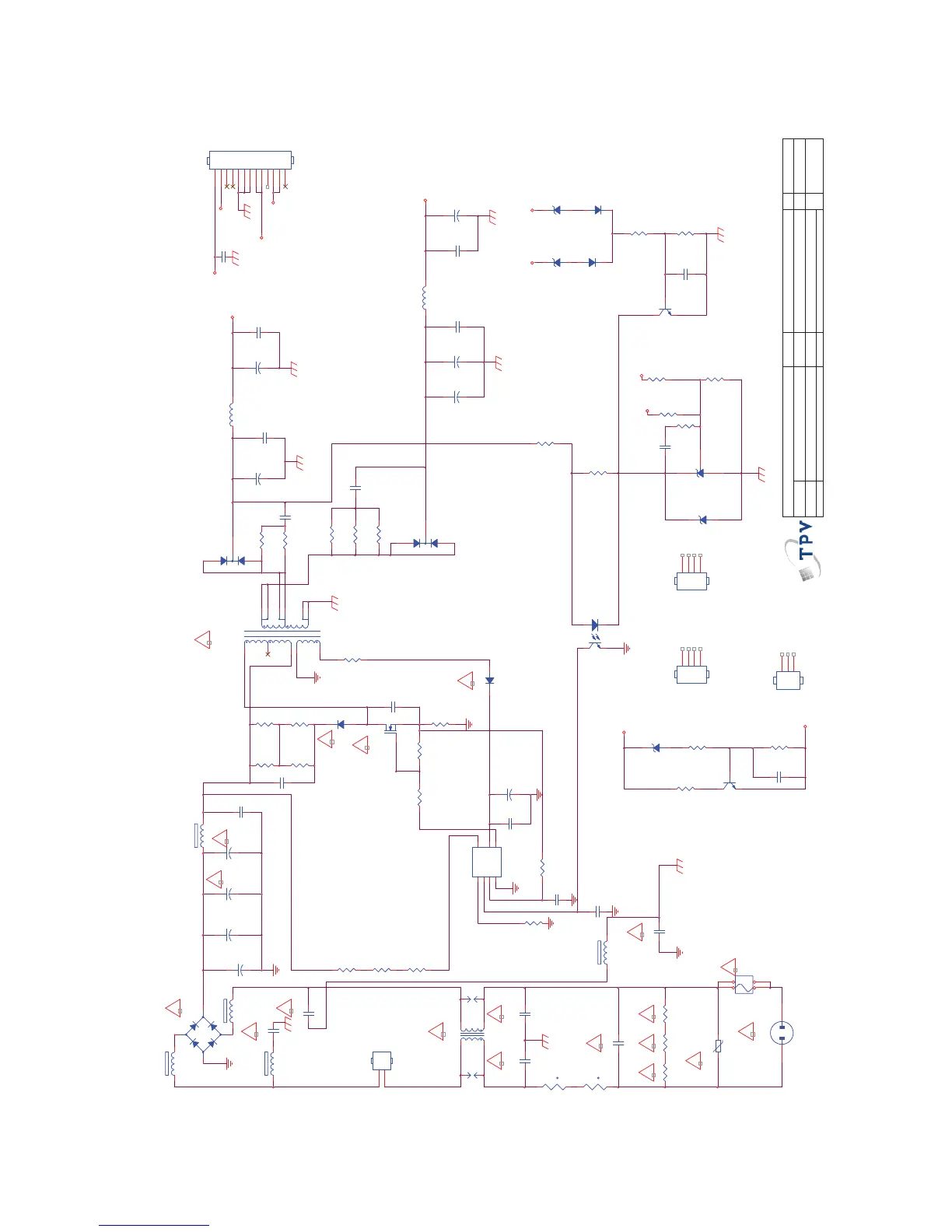

8.2 Power Board 715G5309P01001002S
1 2
ZD9102
GDZJ22B
!
1 2 3 4
HS1 HEAT SINK
1 2
ZD9104 BZT52-C5V6
10*12
C9124 22N 50V
1
2
3
D9102 MBRF20150CT
+
C9102 NC
R9128 1K 1/8W
+5.2V
R9119
100 OHM 1/4W
D9106
1N4148
12
43
IC9102 PC123X2YFZOF 056G 139 3A
RV9901 TVR14561KFAOZF
+12_16V
+12_16V
+12_16V
R9116
47 OHM 1/4W
R9102 6.8K 1/4W
R9105 100K 1/4W
R9103 6.8K 1/4W R9101 6.8K 1/4W
R9106
100K 1/4W
+
C9113 470UF 25V
12
t
NR9902 NTCR
1 2 3 4 5 6 7 8 9
10 11 12 13
CN9101 CONN
R9111 10K 1/8W
R9120
100 OHM 1/4W
R9126 2K43 1/8W 1%
10*7
+5.2V
R9104 100K 1/4W
R9115
47 OHM 1/4W
+
C9123 470UF 25V
R9131 1K 1/8W
OTP
1
COMP
2
CS
3
GND
4
OUT
5
VCC
6
HV
8
IC9101
LD7750RGR
+
C9101 NC
+5.2V
R9107
100K 1/4W
R9114
100KOHM +-5% 1/8W
+12_16V
Q9102
2SD1623S-TD-E
Q9103 PMBS3904
D9107 1N4148
1 2
ZD9101
GDJ13B
1 2
CN9901 SOCKET
R9122 3.3K +-5%1/8W
ON/OFF
OEM MODEL
Size Rev
Date
Sheet
of
TPV MODEL
PCB NAME
〠⡩
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㎜䳄⬌㎚㞩
A3
12Thursday , March 15, 2012
01.POWER
+5.2V
C9119 100N 50V
DIM
R9118
100 OHM 1/4W
! !!
C9120 1NF
1 2
FB9906 BEAD
R9124
1K OHM +-5% 1/8W
C9114 100N 50V
C9110 100N 50V
C9104 100N 50V
R9123 3K3 1/8W 1%
1 2 3
HS4 SHIELD
C9112 100N 50V
1 2
FB9907 BEAD
C9115 100N 50V
R9130 470R
!
1 2
FB9901 BEAD
+5.2V
1 2
3 4
F9901
T3.15AH 250V
C9118 100N 50V
+12_16V
D9105 FR107
C9108 1NF 500V
C9107 1NF 500V
L
1
N
2
CN901 CONN
1 2
FB9908 BEAD
1 2
FB9902 BEAD
R9132 620K
2 1 4 5 6
7 8 9 10 11 12
T9101
POWER X'FMR
R9110 47OHM +-5% 1/8W
C9125 2.2nF 630V
+
C9105 47UF 50V
12
t
NR9901 NTCR
Q9101 AOTF8N65
C9103
2.2nF 630V
L9101 3.5uH
L9102 3.5uH
SG9901
DSPL-501N-A21F
R9125 68K 1/8W 1%
!
C9126 100PF
R9129 470 OHM
D9103 FR107
1 2 3 4
HS3 HEAT SINK
+
C9109
330UF 16V
IC9103 AS431AZTR-E1
715G5309-P0D-000-0020
2
1
3
4
-
+
BD9101 GBL408-C
C9906 100PF 250V
C9907 100PF 250V
1 2
4 3
L9901 30MH
+
C9111 470UF 25V
R9133 620K
R9134 620K
1
2
3
D9101 MBR F1560CT
C9106 470P 50V
R9113
220 OHM 1/4W
R9112 0.43 OHM +-5% 2WS
R9121 1K 1/8W
C9905 1NF 250V
C9902 470PF 250V
C9904 470PF 250V
C9117
470NF 50V
R9127 3.3K +-5%1/8W
!
!
!
!
!
!
!!
!
!
!
!
!
C9901 470NF 305V
R9108 4.7 OHM
!
+
C9101A 47UF 450V
SG9902 DSPL-501N-A21F
+
C9122
470UF 25V
+
C9102A 47UF 450V
1 2
ZD9103 GDZJ5.6B
