30

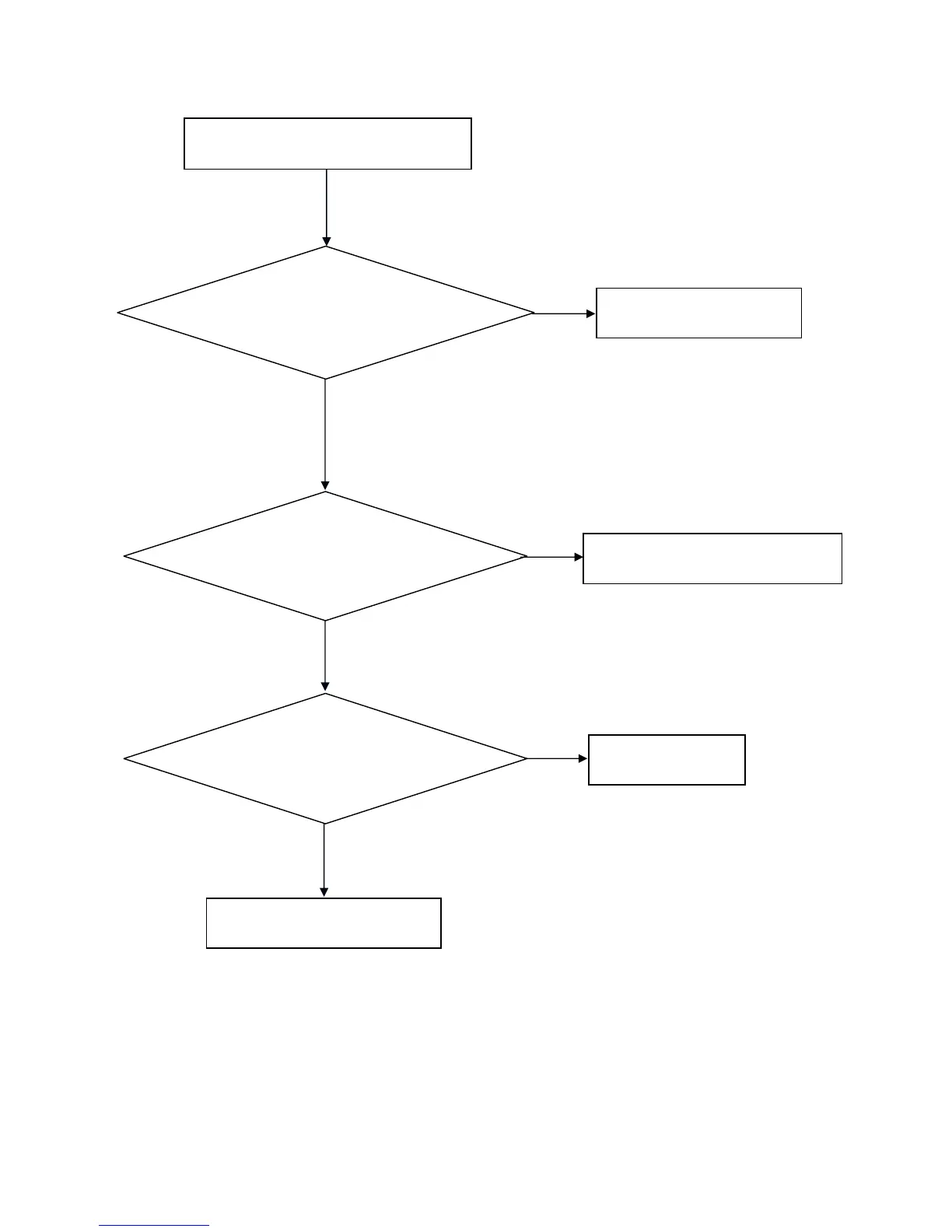

6. Control Remoto - mal funcionamiento
Control remoto - mal funcionamiento
Reemplace batería
Reemplace el control remot
o
¿Es anormal la IR board?
Si
No
Reemplace IR board
Reemplace main board
No
Si
No
Si
Use otros controles remotos, ¿fun
ciona?
Revise la batería del control remoto
si está
bien colocada o no tiene energía
29
31
Table of Contents
Default Chapter
1
Table of Contents
1
Important Safety Notice
2
Revision List
3
1 General Specification
5
2 Operating Instructions
6
The Use of Remote Control
6
To Use the Menus
7
How to Connect
17
Front Panel Control Knobs
19
3 Input/Output Specification
20
4 Mechanical Instructions
22
5 Repair Flow Chart
25
6 PCB Layout
32
Main Board
32
Power Board
34
LED Board
44
Key Board
45
IR Board
45
7 Adjustment
46
8 Block Diagram
47
9 Schematic Diagram
49
Main Board
49
Power Board
58
LED Board
66
Key Board
68
IR Board
69
10 Exploded View
70
11 BOM List
74
