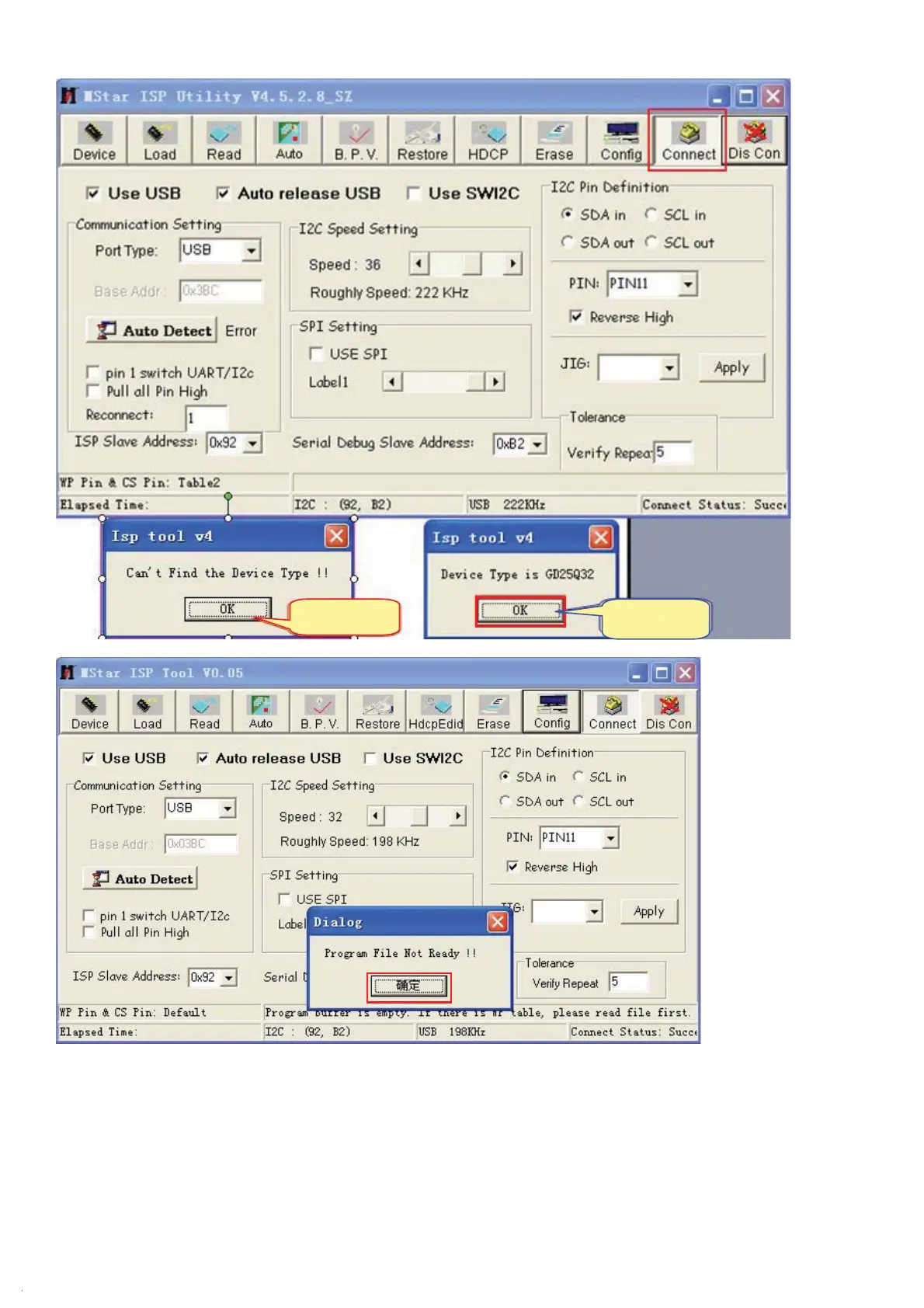

If prompts Device Type is GD25Q32” means that normal connectif prompts Can’t find the Device Type!” means that
there is poor connecting, please have a check.
(3). Click HdcpEdid button in main menu bar to set corresponding settings according to the following instructions:
Need to burn HDCP KEY, please select and load current KEY documents, in KEY address bar input "0 X3B0000" and
enter; select EDID1 check box and load current work order VGA port EDID. bin file, in EDID1 corresponding files
address bar input "0 X3B0400" and enter; select EDID2 check box and load current work order HDMI EDID. bin file, in
EDID2 corresponding file address bar input "0 X3B0600" and enter. Modify EDID1 and EDID2 corresponding
information according to work order, confirm and click "Auto" button in main menu bar to switch to burning main
