AOC LE32W157 - Page 16

16

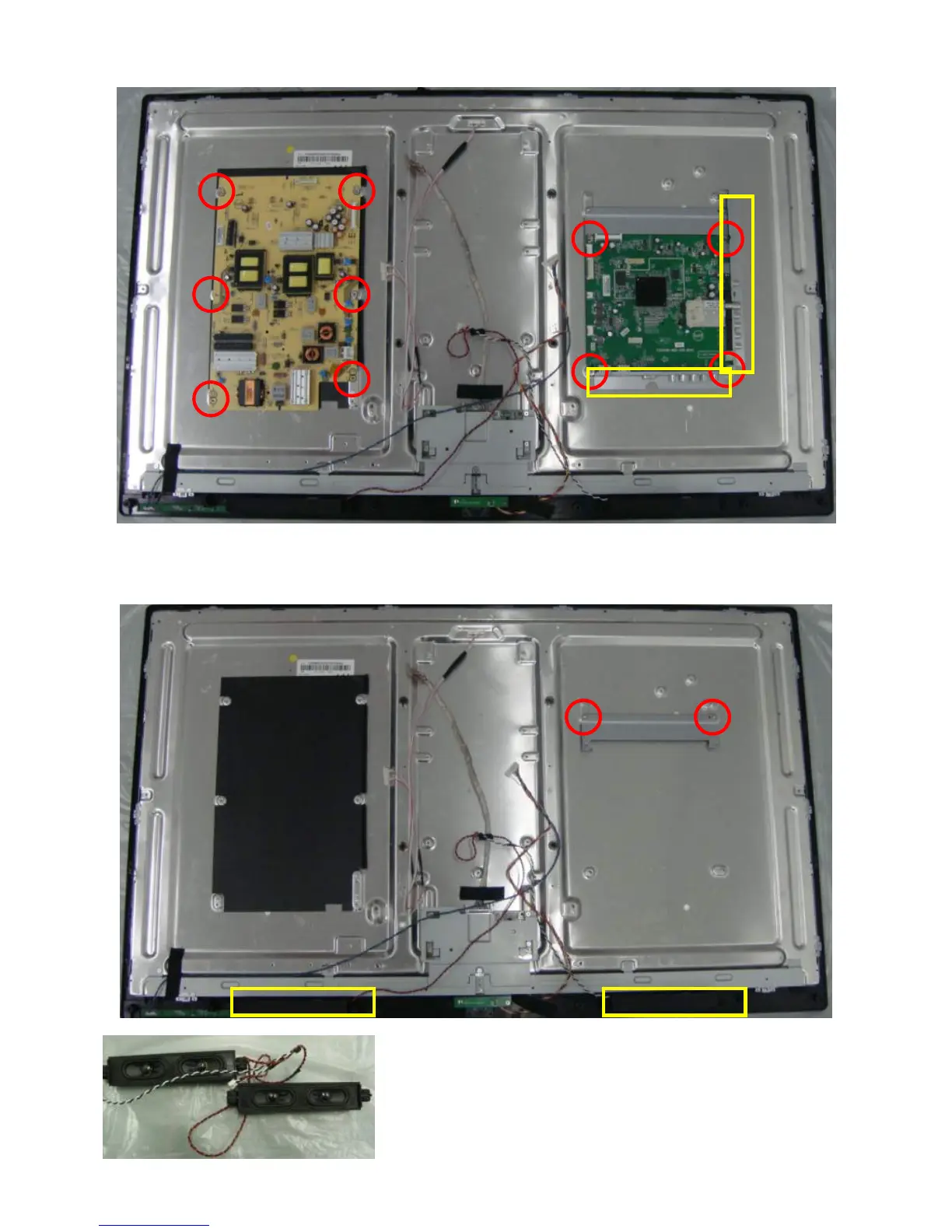

5. Remove the MAIN, POWER BOARD and BRACKET IO-SIDE, BRACKET IO-DOWN.
6. Remove the BRACKET MAIN PCB-LEFT and SPEAKERS.
Note:
1. Speakers’ setting must follow the rule of Left: Red and Right: White.
2. Speakers’ PIN must face inside.
