AOODOR A057 - Page 4

Assembly

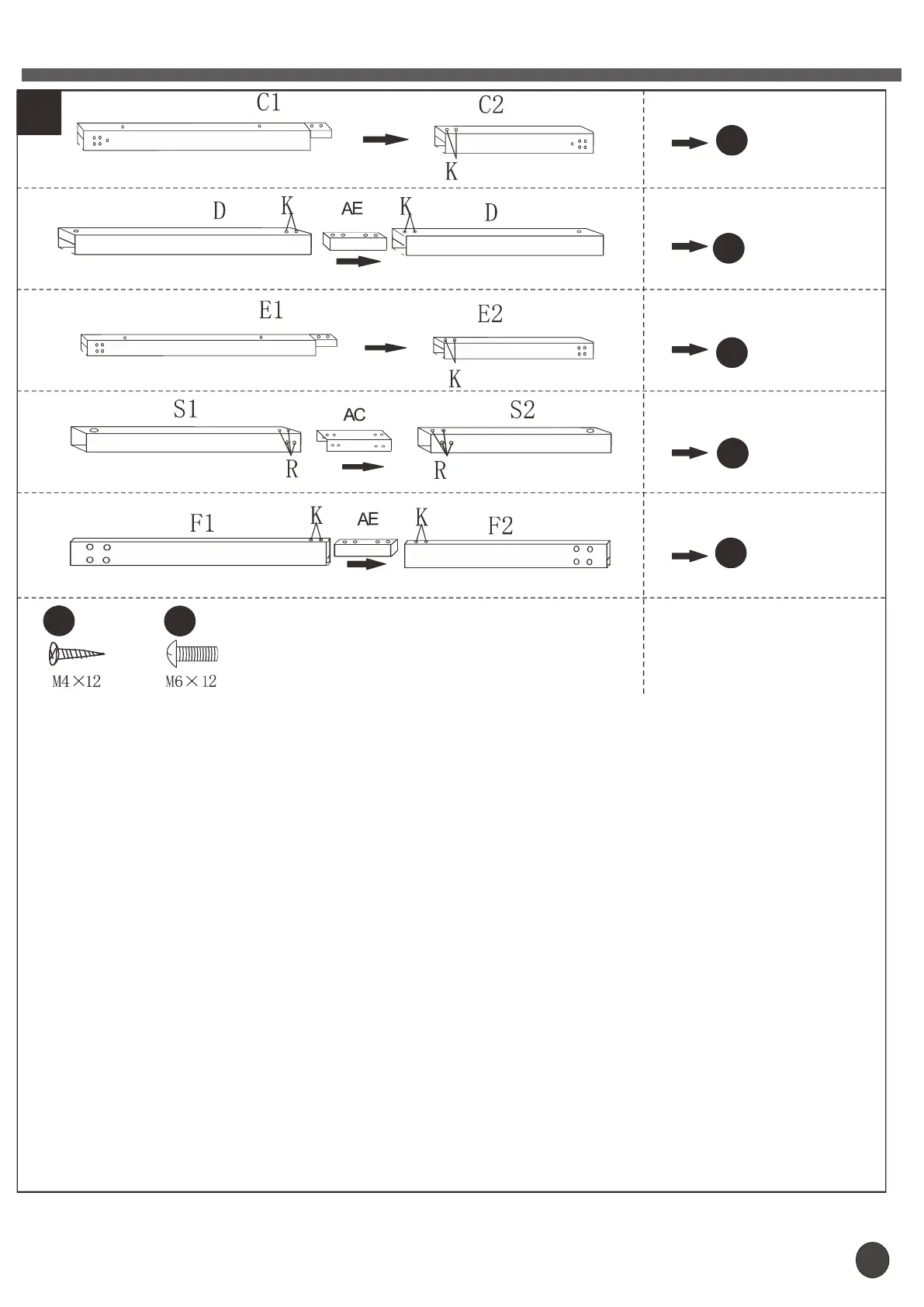

Step1:Beam assembly.
1.Connect (C1) with (C2) together using screw(K) tightly to became Side Beam(C)
2.Connect (D) to (D) with connector(AE) together using screw(K) tightly to became Middle Cross
Beam(D)
3.Connect (E1) with (E2) together using screw(K) tightly to became Side Beam(E)
4.Connect (S1) with (S2) together using screw(R) tightly to became Cross Beam(S)
5.Connect (F1) with (F2) together using screw(K) tightly to became cross Beam(F)
C
D
E
S
x2
x2
F
x1
x1
1
x1
K
x 16
R
x 16
4
