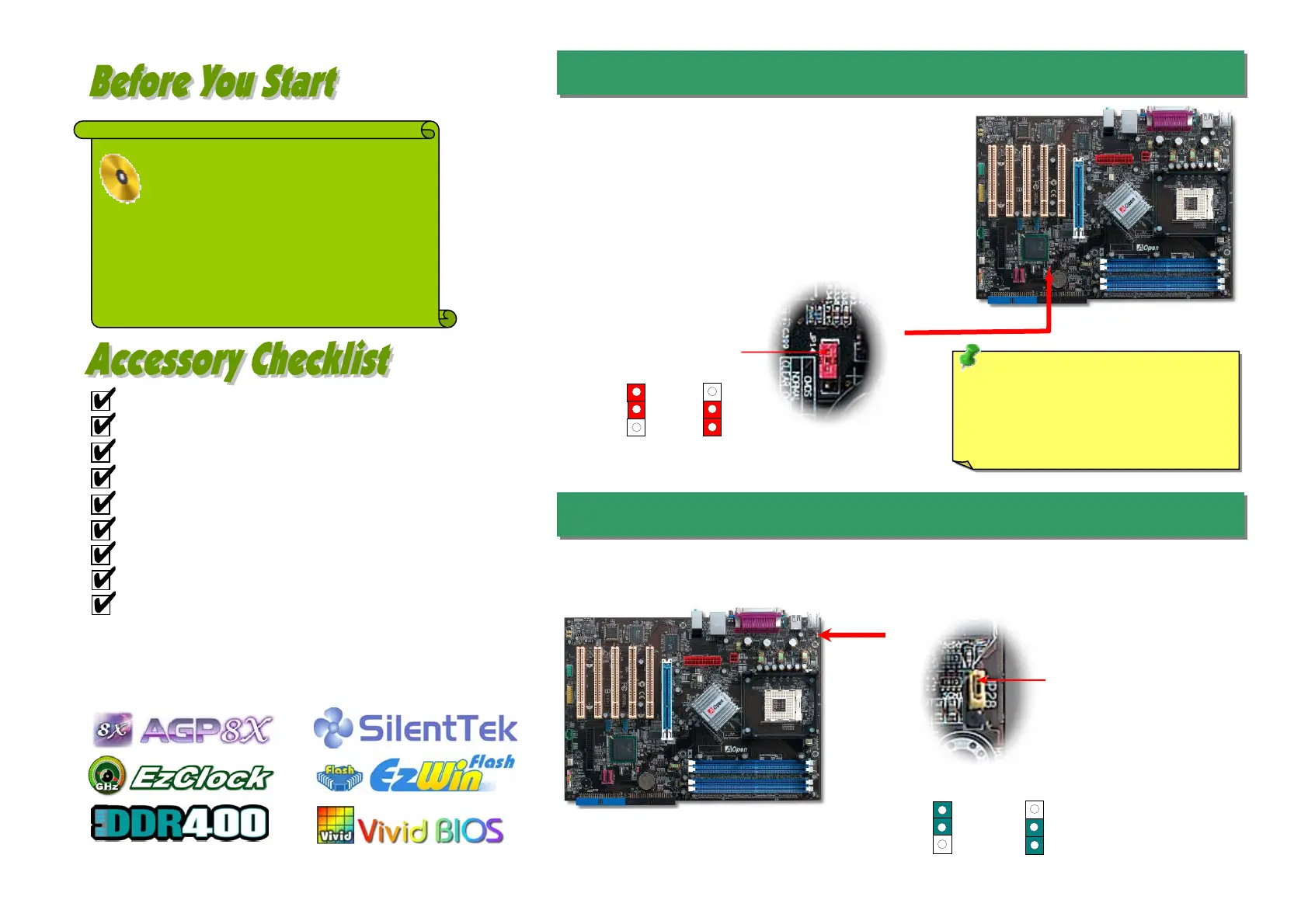

AOpen AX4SG-U Easy Installation Guide

1. JP14 Clear CMOS
2. JP28 Keyboard/Mouse Wakeup Jumper
Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete Online
User's Manual can be found in the
Bonus Pack CD. Thanks for the
help of saving our earth.
PART NO: 49.8AT07.011 DOC. NO: AX4SGUL-EG-E0309A
Easy Installation Guide x 1
User’s Manual x1
Floppy Drive Cable x 1
80-Wire IDE Cable x 1
Serial ATA Cable x 1
Serial ATA Power Cable x 1
Bonus Pack CD x 1
Norton Anti-Virus CD x 1
I/O Shield x 1
This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this
function, which could resume your system from suspend mode with keyboard or mouse. The factory default
setting is “Disable” (1-2), and you may enable this function by setting the jumper to 2-3.
You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin 1 & pin 2.
5. Connect ATX power cable back to connector PWR2.
Tip: When should I Clear CMOS?
1. Boot fails because of overclocking…
2. Forget password…
3. Troubleshooting…
Pin 1
Pin 1
Enable
Disable
(Default)
1 1
Normal
(
default
)
1
1
Clear CMOS
