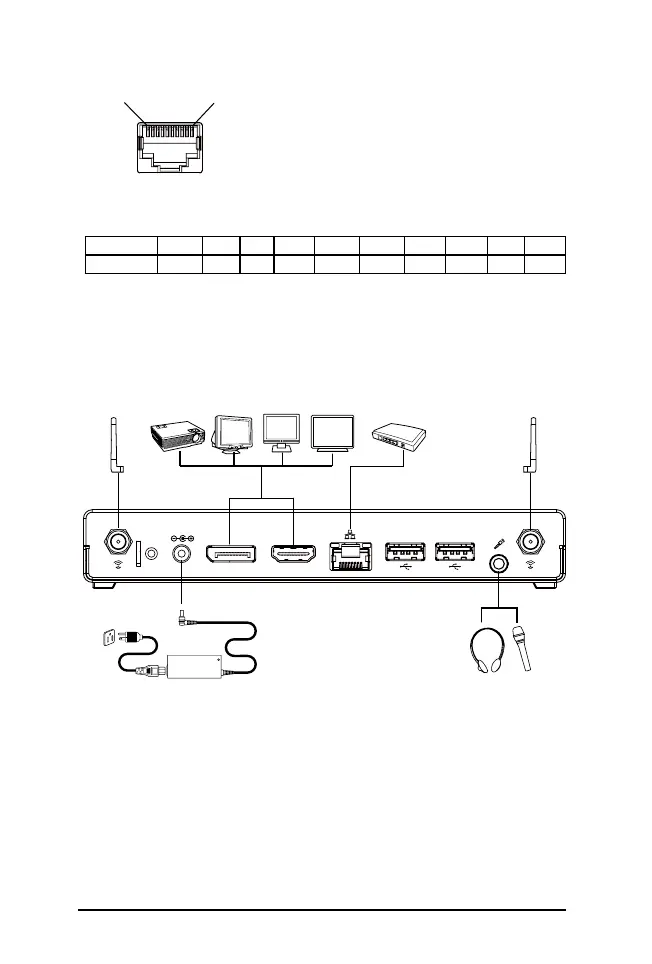

Rear

HDMIDP

DC19V Adapter

RJ50 pin# 2 4 6 8 9 3 5 7 10 1

Signal DCD RX TX DTR GND DSR RTS CTS RI N/A

RJ50 Pin Definition

Pin1

Pin10
