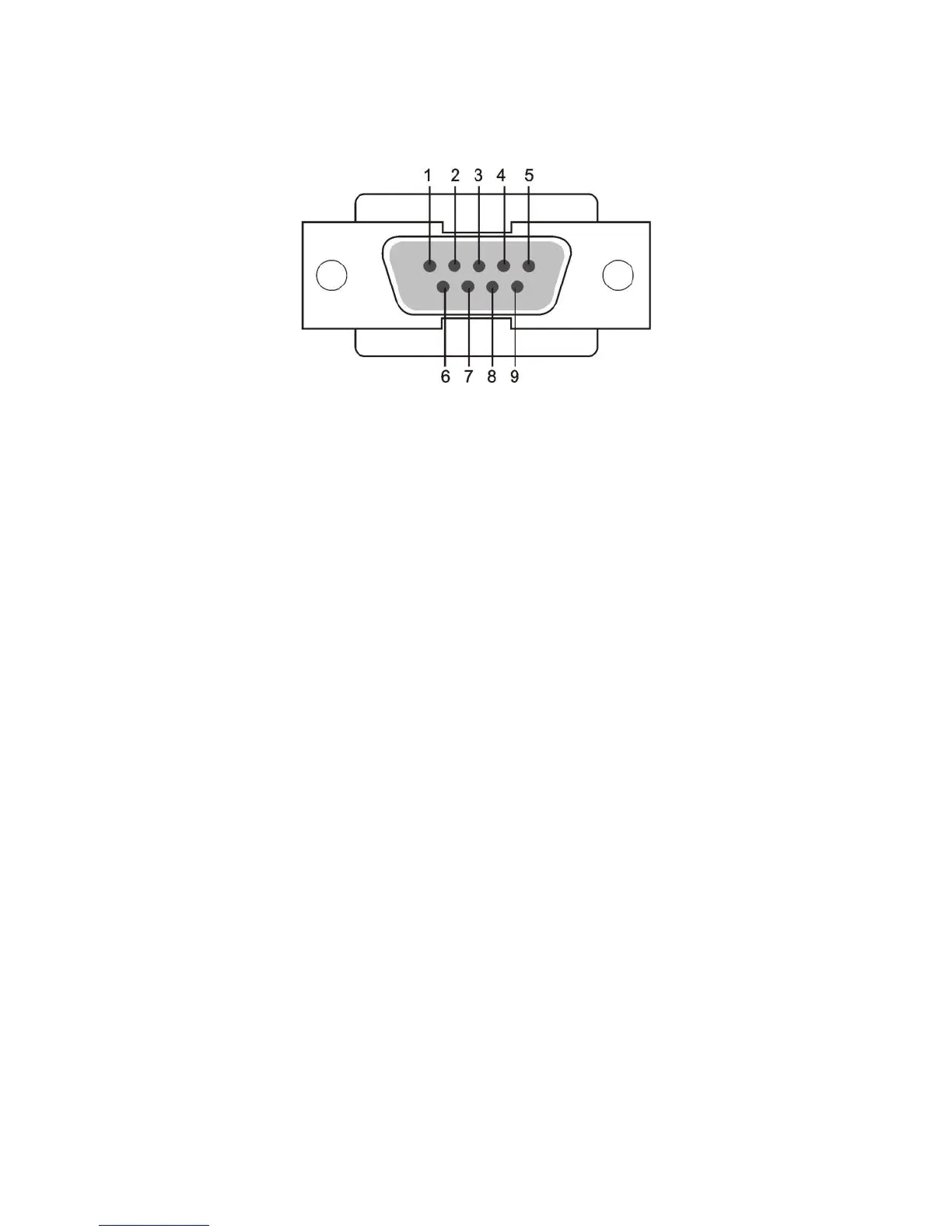

RS232 Pin Definition
Pin
Signal
Pin
Signal
1
Data Carrier Detect
6
Data Set Ready
2
Received Data
7
Request to Send
3
Transmitted Data
8
Clear to Send
4
Data Terminal Ready
9
Disable/5V/12V form BIOS setting
5
Signal Ground
