APC Network Management Card Installation And Quick Start Manual


How to Avoid Equipment Damage
Caution
Damage to the UPS or Network Management Card can result if
you do not remove all AC and DC power from a Smart-UPS
®
or
Matrix-UPS
®
model UPS, SmartSlot Expansion Chassis
(AP9600), or SmartSlot Expansion Triple Chassis (AP9604,
AP9604R or AP9604SR) before you install the Management
Card.

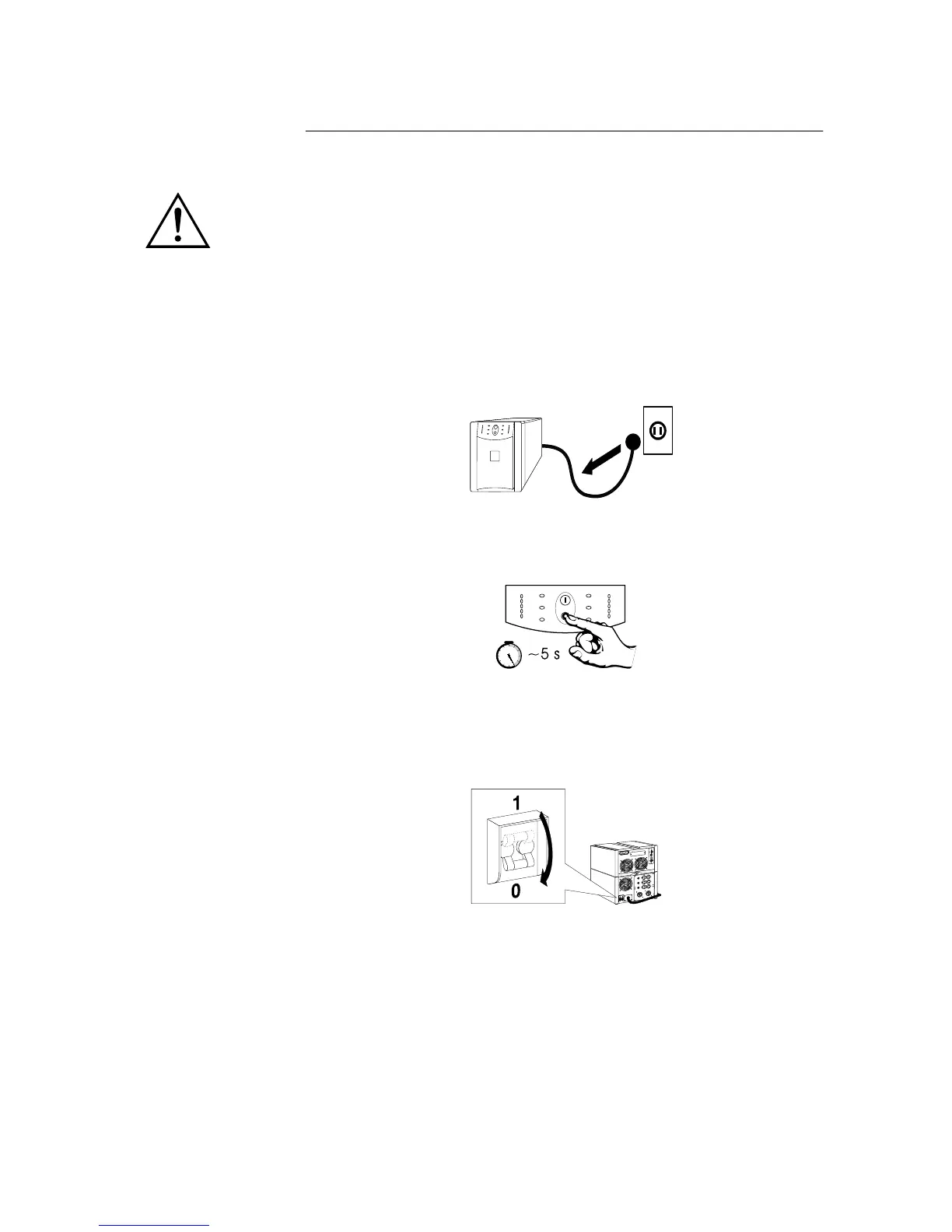

Smart-UPS
1. Turn off the equipment that connects to the UPS.
2. Disconnect the UPS from its AC input source.
3. Press the OFF button on the UPS for approximately five sec-
onds to turn off the DC (battery) power.
Matrix-UPS
1. Turn off the equipment that connects to the UPS.
2. Turn off the circuit breaker on the rear panel of the UPS.
Symmetra and
Silcon DP300E
series UPS
Models
You do not need to turn off a Symmetra
®
or a Silcon™ DP300E
series UPS to install the Management Card.
Expansion or
Triple Chassis
Make sure that the chassis is disconnected from all power:
Disconnect the chassis cable from the UPS and, if the AC-to-DC
Adapter (AP9505) option is used, disconnect the adapter from
the chassis.

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
