APC Network Management Card User Manual

Page 8 - 34003641EN/AF
Card Settings
RS232 Download
66074
UPS
data
Reset
100 10
1 2
ON
ETHERNET
RS232
2
4
1
3
IP=
MAC=00E0D8FF855E
1. Presentation

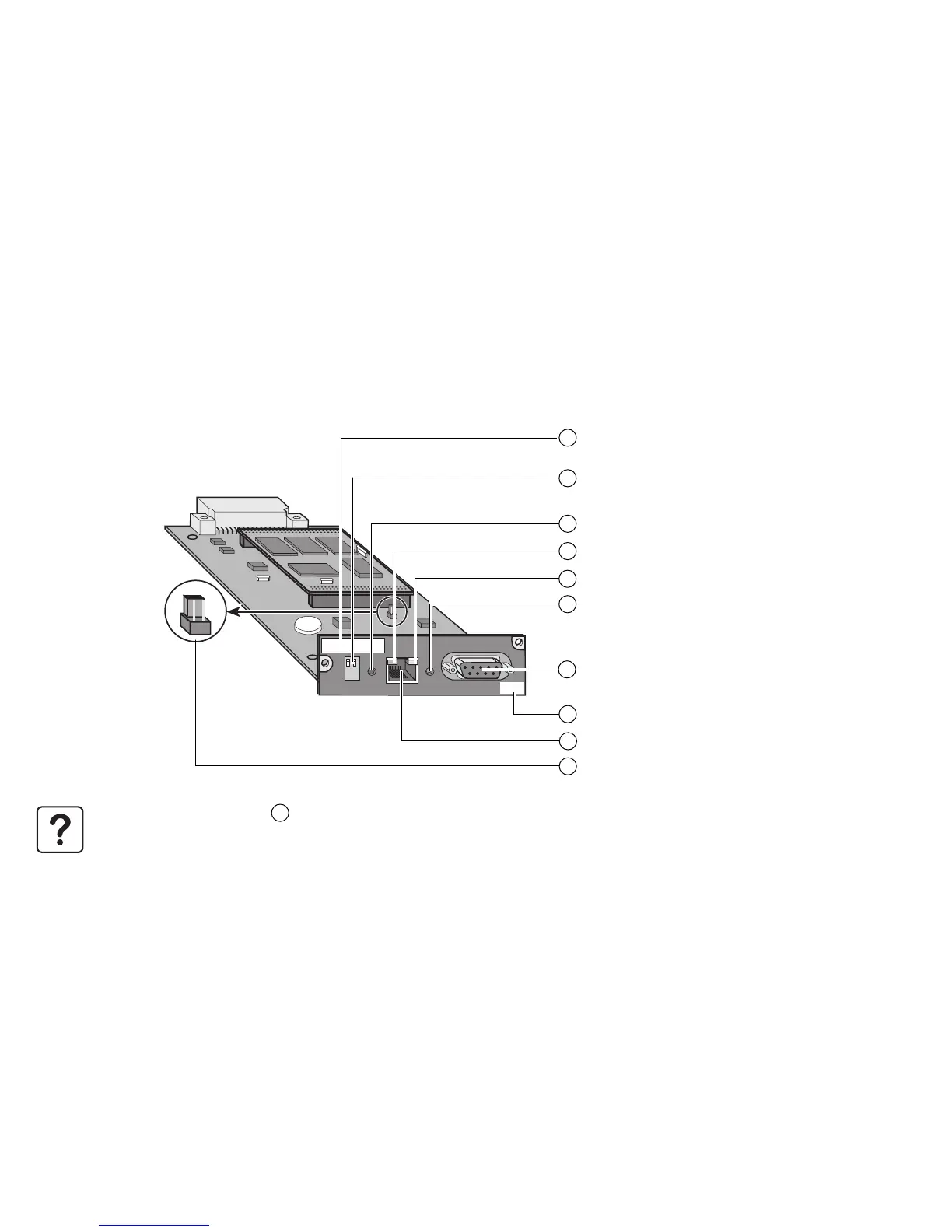

1.2 Overview
Labels for Ethernet and IP addresses.
4
2
8
7
6
3
9
The address label 4 is made up of two areas:
◗ The upper line may be used to manually note the IP address assigned to the card.
◗ The lower line indicates the card Ethernet address (MAC address).
5
1
RS232 serial port for Environment Sensor,
configuration and maintenance (Card
settings / RS232).
Card part number.
10/100BT Ethernet port (ETHERNET).
10
Jumper for return to the default password.
DIP switches for configuration
(RS232 Download).
Reset button.
Green 100 M Ethernet LED (100).
Orange 10 M Ethernet LED (10).
UPS Data LED signalling data transfers
(UPS Data).

APC Network Management Card Specifications

General

Device Type	Network Management Card
Data Link Protocol	Ethernet, Fast Ethernet
Management Protocols	SNMP, HTTP, HTTPS, Telnet, SSH
Remote Management Protocol	HTTP, HTTPS, SSH, Telnet, SNMP
Security	RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
Form Factor	Plug-in module
Features	Event logging
Power Requirements	Via UPS
Environmental Monitoring	Temperature, humidity (with optional sensors)
Network Interface	10/100 Mbps Ethernet
Compatibility	Compatible with select APC Smart-UPS and Symmetra UPS models
Firmware Updates	Yes, via network or web interface
