6
PART II. INSTALLING THE SYSTEM
Space: Make sure there is sufficient space under the counter for installation (an area of about
17”L x 6”W x 18”H for the system, 11”D x 18”H for tank).
The RO system is best installed under the kitchen sink. But if that is not feasible you
can install the system anywhere where there is a cold water supply with sufficient
water pressure for the chosen RO model, and an outlet to drain off the waste water
from the system.
Mounting: No need to mount the RO system on the wall. The RO system can stand in the sink
cabinet without mounting, this makes future filter change easy and convenient. If
you prefer to mount the system to the wall, please make sure it can be taken down
easily for filter replacement.
Feed Water: RO systems are designed to treat both hard and soft water and can handle incoming
TDS levels up to 2000ppm.
Step 1: Feed Water Connection
The RO system must be connected to the COLD water supply only!
1. Locate the Cold water supply valve under the kitchen sink (the round or oblong handle on
the right side). Turn off the incoming cold water completely by turning the shut off handle
clockwise.
Note: If the cold water shut off valve can not turn off the water, the main water supply
to the house must be shut off for the installation. Another option is to use a “self
piercing saddle valve” from APEC or from a local hardware store.
2. Feed Water Adaptor (1/2” or 3/8”): See Fig. 5. The Feed Water Adaptor comes with a
separate Needle Valve. The Adaptor goes inline onto your 1/2” or 3/8” cold water pipe. The
Needle Valve portion screws onto the Adaptor as shown in Fig. 5A.

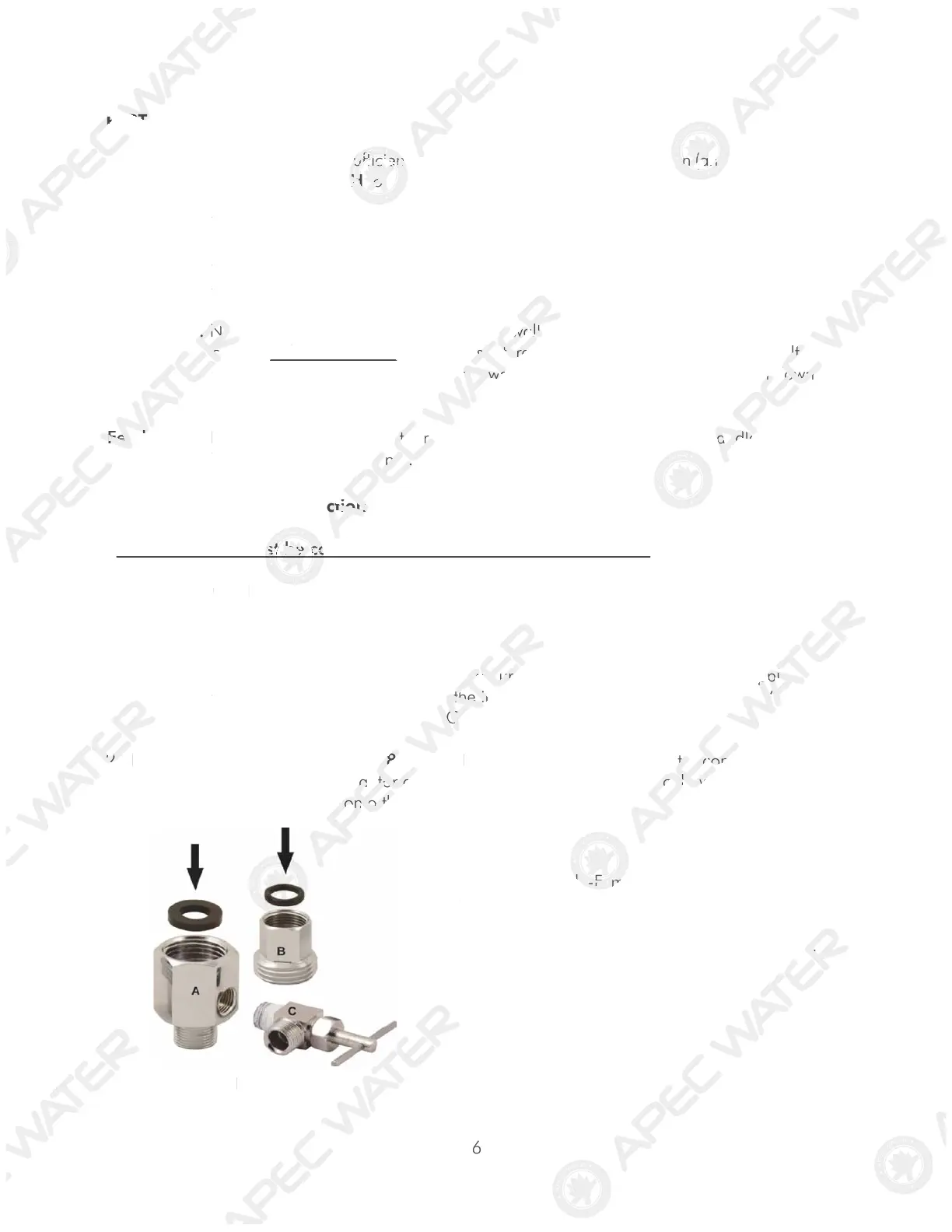

Fig. 5
A. 1/2” x 3/8” Male-Female Water Supply Adapter
with O-ring.
B. 1/2” x 3/8” Male-Female Converter with O-ring.
C. 1/4” x 1/8” Male Needle Valve.
