11
INSTALLATION
DDCH90SS

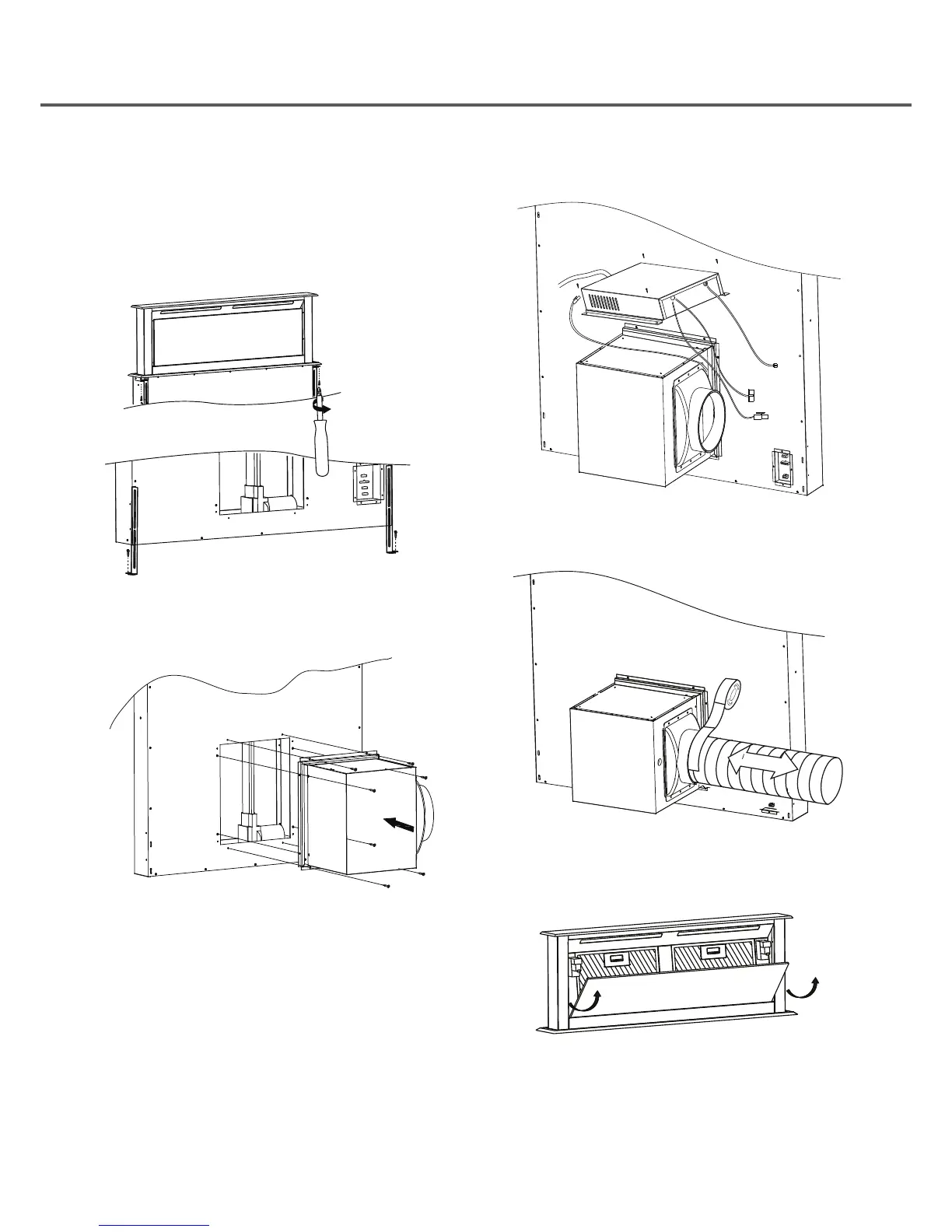

Fix the bracket onto the cabinet using 8 screws.
IMPORTANT
Fix the power box using four screws and connect the wire
accordingly
NOTICE
It may be useful to seal the edge with appropriate sealant
Fix the vent pack (not supplied) using self adhesive
aluminium tape (not supplied).
Plug in the cooker hood and fix the decorative glass.
Do not need to fix the top two brackets if the cabinet is
not wood based .
Fix the wind chamber back using the eight screws.
When the extractor is installed behind an electric hob,
the minimum distance between the hob and extractor
must exceed 30mm.
With a gas hob, the minimum distance from any burner
to the back of the hob must be 65mm, so measure your
available countertop space with the dimensions carefully
before ordering
