ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT(S).
This instruction manual complies with the Treestand Manufacturers Association’s TMS 04 - Standard Practice for Treestand Instructions and TMS 02 - Standard Test Method for Treestand Fall Arrest Systems.
8
MODEL GCL205-A • THE BOWHUNTER
WARNING! Read Usage Instructions & Warnings and Full-Body Fall Arrest Harness Usage Instructions & Warnings on pages 3-7 prior to the
use of this product! Failure to follow the instructions on pages 3-7 may result in serious injury or death!

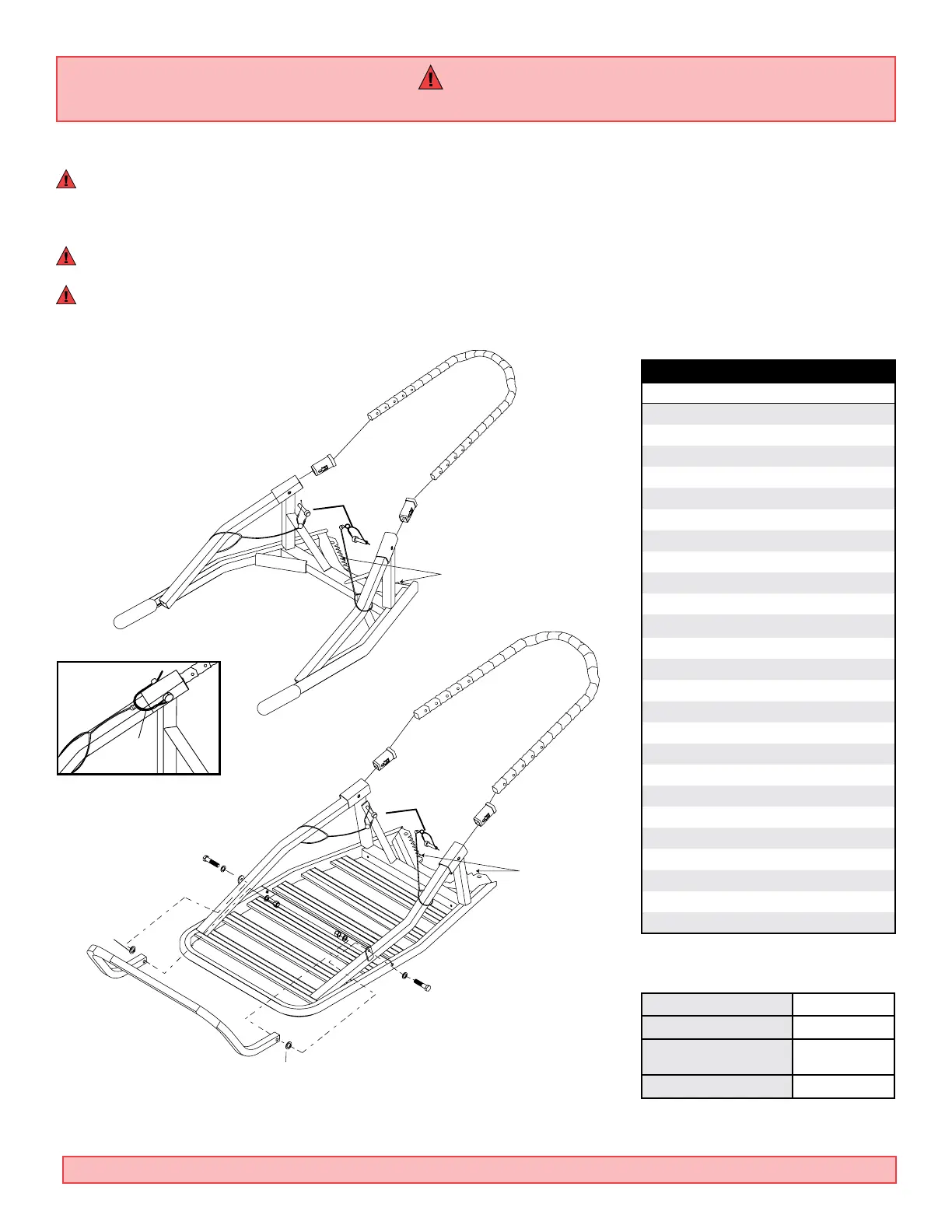

THIS PRODUCT COMES FULLY ASSEMBLED; HOWEVER, IT IS ADVISABLE TO REFER TO THE DETAILED DIAGRAM BELOW TO BECOME FAMILIAR
WITH THE PROPER ASSEMBLY OF YOUR TREESTAND.
WARNING! AFTER BECOMING FAMILIAR WITH YOUR STANDS’ ASSEMBLY, YOU MUST READ AND FOLLOW ALL INSTALLATION
INSTRUCTIONS AND WARNINGS ON PAGES 1317. FAILURE TO FOLLOW THIS WARNING MAY RESULT IN SERIOUS INJURY OR DEATH!
WARNING! This stand is equipped with a footrest, backrest and/or shooting rail. Neither the footrest, backrest nor the shooting rail have
been designed to support the users weight. Under no circumstances should you place any more than fteen (15) pounds (7 kg) of weight on these
structures. Doing so will put the user in serious risk of injury or death. Failure to follow these instructions may result in serious injury or death!
Frame Bar
Tube Plug
Frame Bar
Tube Plug
Frame Bar
Tube Plug
Frame Bar
Tube Plug
Bark Biters
Footrest
Nylon Washer
Nylon Washer
Seat Section
Foot Section
Coated Steel Chain
Coated Steel Chain
Snap Pins
Snap Pins
Bark Biters
Field Installation-Climbing
Treestands, for installation instructions.
Min. Tree Diameter 9 Inches
Max. Tree Diameter 20 Inches
Max. Weight Capacity
(USER AND EQUIPMENT)
Maximum Occupancy
Parts List (GCL205-A)
Part # Description Qty
UP14-0219 Foot Section 1
UP14-0220 Footrest 1
UP14-0221 Seat Section 1
UP14-0384 Coated Steel Chain 2
UP14-0182 Heel Cord 1
UP11-0066 Connector Rope 1
UP11-0067 Accessory Bag 1
UP12-0146 Padded Backpack Strap 2
UP11-0069 Cinching Strap 3
UP14-0261 Armrest Cover 2
UP14-0262
Armrest Foam 2
UP14-0224 Seat Cushion 1
UP14-0253 Backrest Cushion 1
UP14-0225 Ratchet Strap with D-Ring 1
UP10-0037 Cam-Buckle Strap 1
UP14-0226 Frame Bar Tube Plug 4
UP14-0207
Full Body Fall Arrest Harness B330
1
UP14-0418 Instruction Manual 1
UP10-0660 Treestand Safety DVD 1
UP77-0019 1/4" x 1 1/2" Hex Bolt 2
UP77-0001 1/4" Nylock Nut 2
UP77-0005 1/4" Steel Washer 4
UP77-0002 1/4" Nylon Washer 2
UP77-0123 5/16" x 2" Snap Pin 4
UP77-0112 Hand Grip 2
Snap
Pin
Wrap snap pin wire closure
around front of tubing and
secure over end of snap pin.
Installed and
in the closed
position
To Next Page
