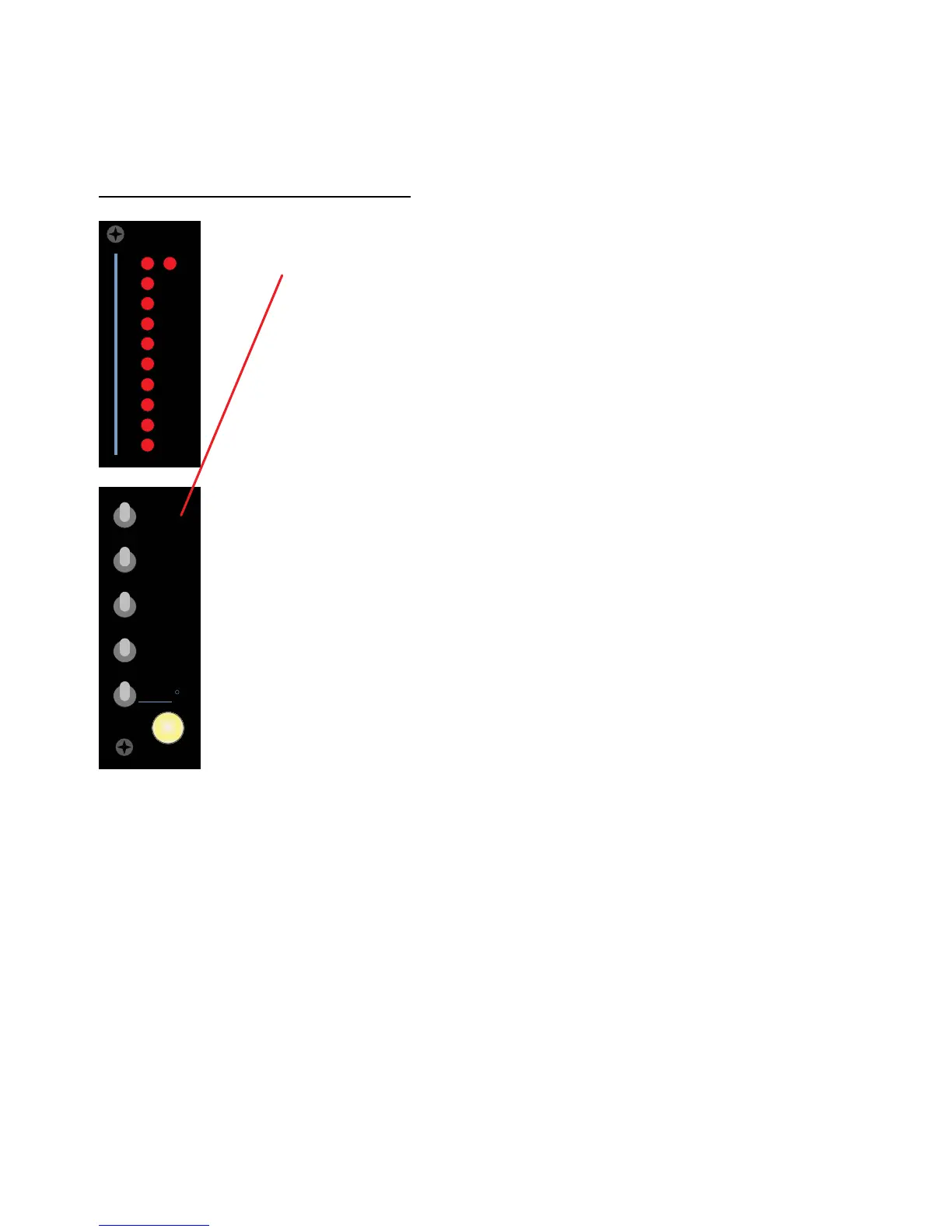

METERING - Output Level
An OUTput level meter is provided to indicate the 527’s
output in VU when the METER switch is in the VU position.
The audio output increments provided are:
· +3 dB
· +2 dB
· +1 dB
· 0dB Note: 0Vu = +4dBu
· -1 dB
· -3 dB
· -5 dB
· -7 dB
· -10 dB
· -20 dB
In addition, a PEAK (OV) LED is provided that will illuminate at
+27 dBu.
