5.2.4 Bypass without output

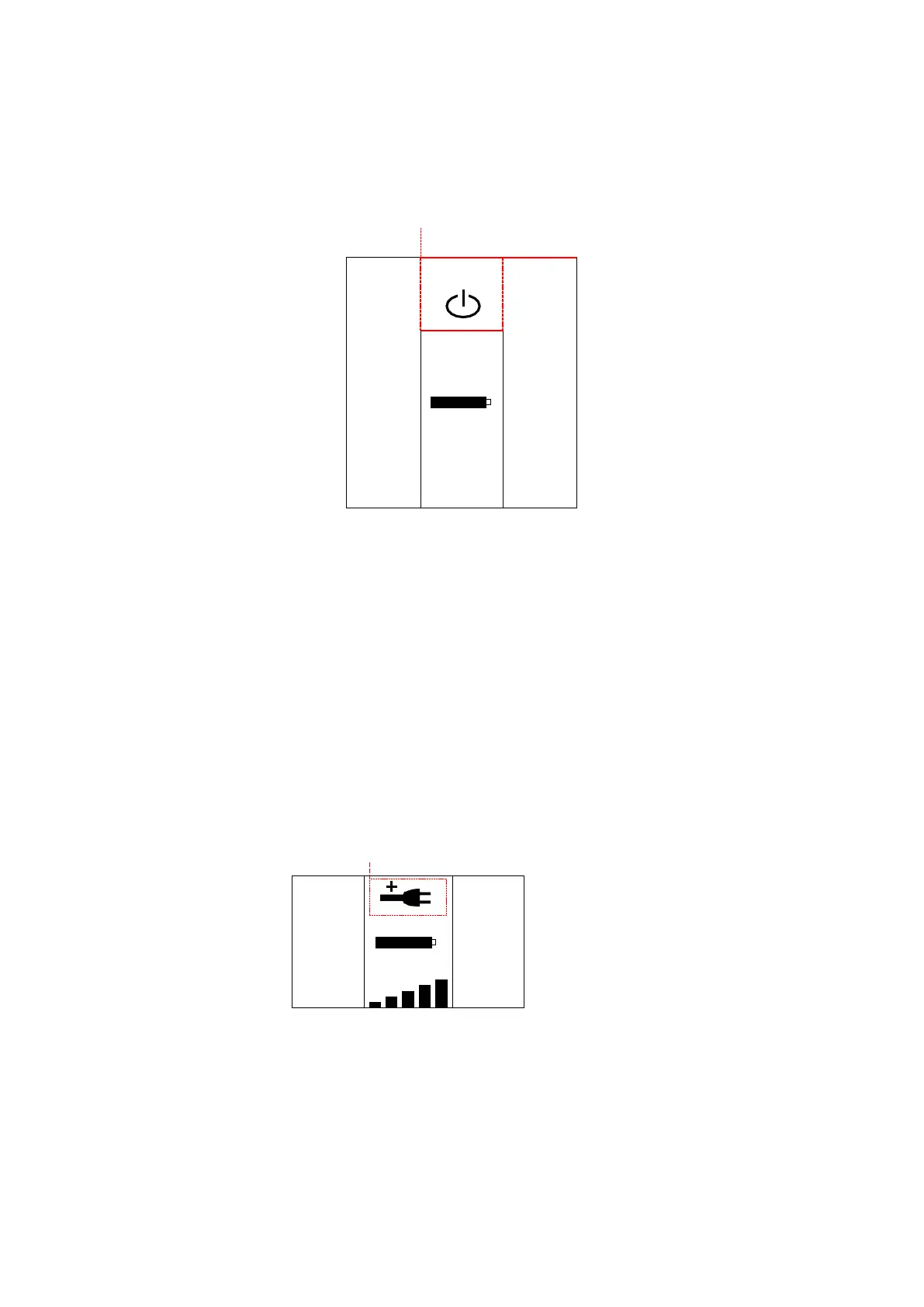

The LCD display in bypass mode without output is shown in the following diagram.
The symbol of operating in Bypass mode without output
Fig. 5-6 Bypass mode without output
5.2.5 HE mode (High Efficiency mode)
It is also called economy mode.
After the UPS is turned on, the power used by the load is supplied from the mains power
via internal filter while the mains power is in normal range, so the high efficiency could be
gained in the HE mode. Once the mains power is loss or abnormal, the UPS would transfer
to Line mode or Battery mode and the load is supplied continuously.
The symbol of operating in ECO mode
Fig. 5-7 HE mode
1)
The function could be enabled through the LCD setting or the software
(Winpower, etc.).
2)
It is attention that the transfer time of UPS output from HEmode to battery mode
is about 10ms. But it is still too long for some sensitive load.
