24 - Apple Cinema Display 22" (ADC) Take Apart
Top Backlight Bulb
Procedure

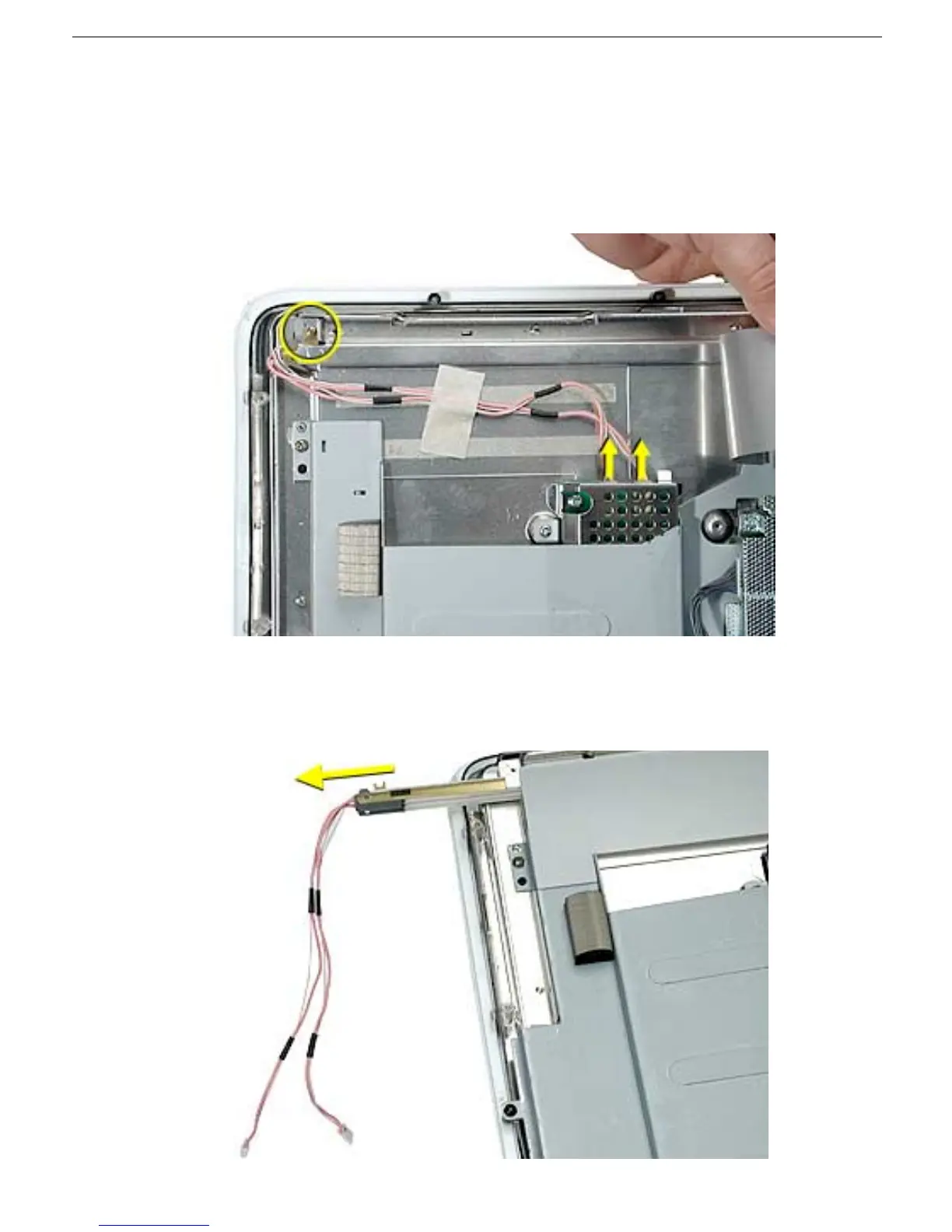

1. Peel the gray Mylar tape back on the chassis to expose the backlight bulb wires.
2. Disconnect the two top bulb wire connectors from the inverter board and peel back the
tape to release the wires.
3. Remove the bulb screw.
4. Put on cotton gloves, then carefully slide the bulb tray out of the panel.
Important: The bulbs are very fragile. Handle with care.
Note: The bulbs are interchangeable top and bottom.
