Apple Cinema Display 22" (ADC) Take Apart - 27
Bottom Backlight Bulb
Procedure

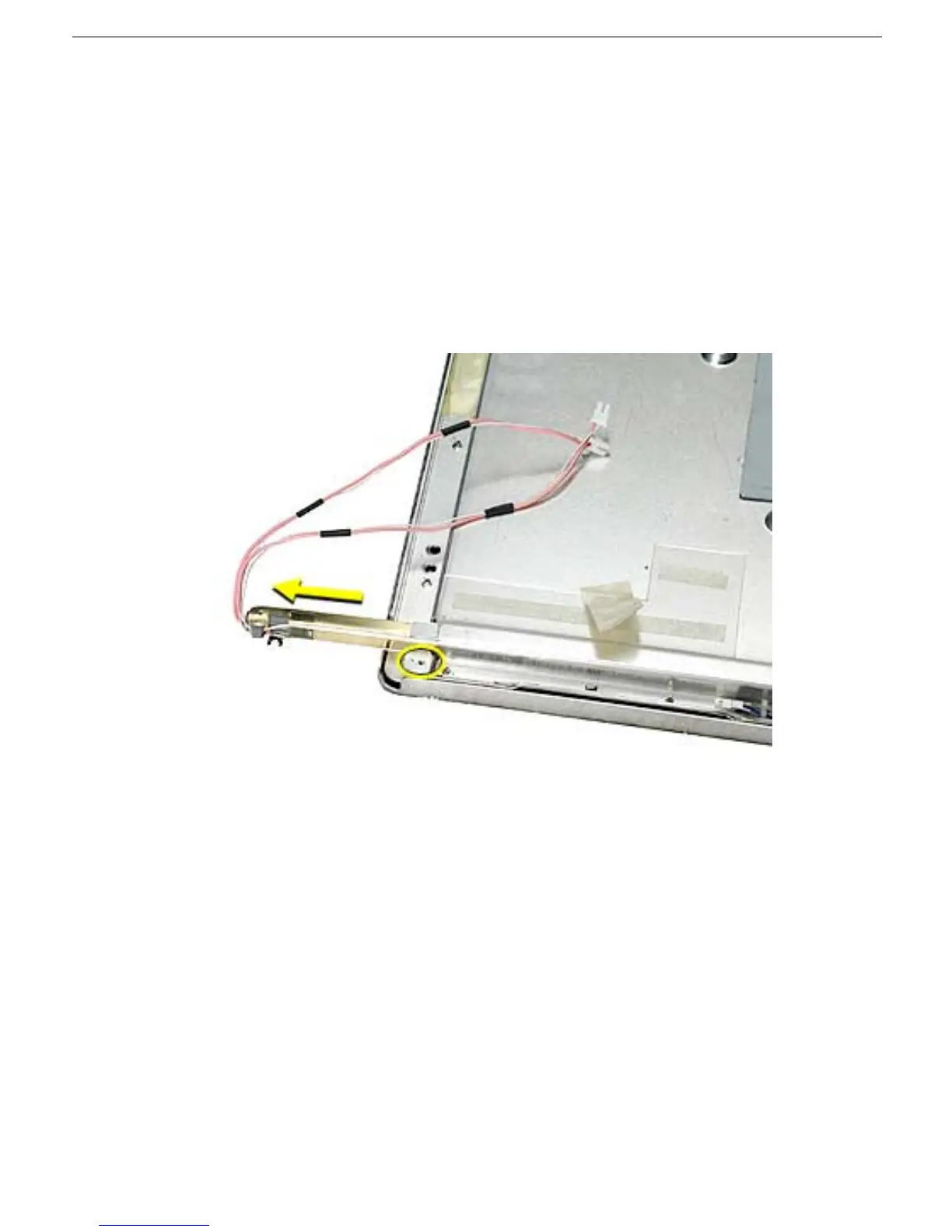

1. Disconnect the two bottom bulb wire connectors from the inverter board and peel back
the tape to release the wires.
2. Remove the bulb screw.
3. Put on cotton gloves, then carefully slide the bulb tray out of the panel.
Important: The bulbs are very fragile. Handle with care.
Note: The bulbs are interchangeable top and bottom
