Apple Cinema Display 22" (ADC) Take Apart - 7
Hinge
Procedure

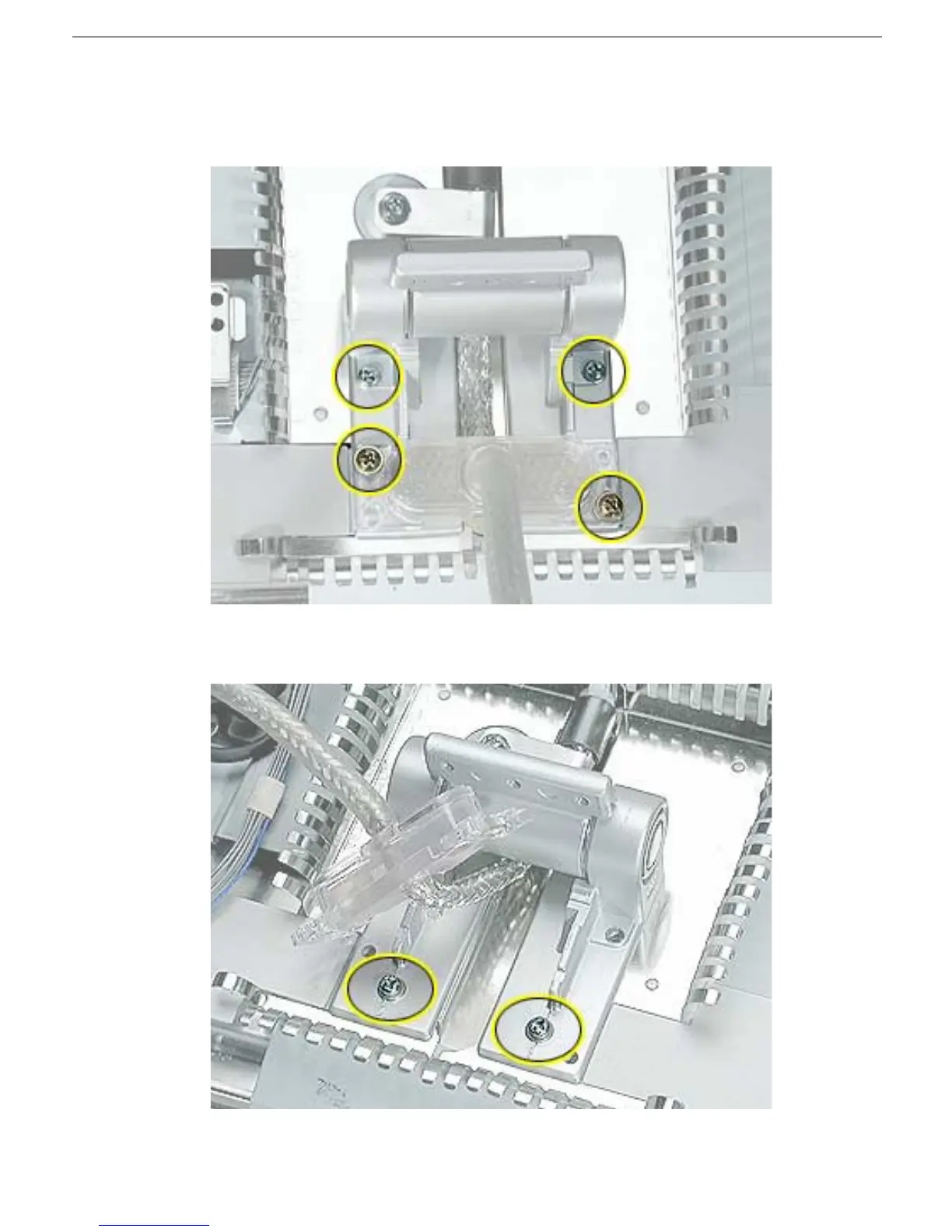

1. Remove four screws. Note: Two of the screws are yellow. These screws are for the
ADC cable.
2. Pull the ADC cable out of the way and remove two more hinge screws.
3. Lift the hinge up and off the chassis.
Replacement Note: The hinge has locators on it, so it seats correctly in the chassis.
