Apple Cinema Display (20-inch) Take Apart

Inverter Board

Procedure

Note:

Wear an ESD wrist strap when performing this procedure.

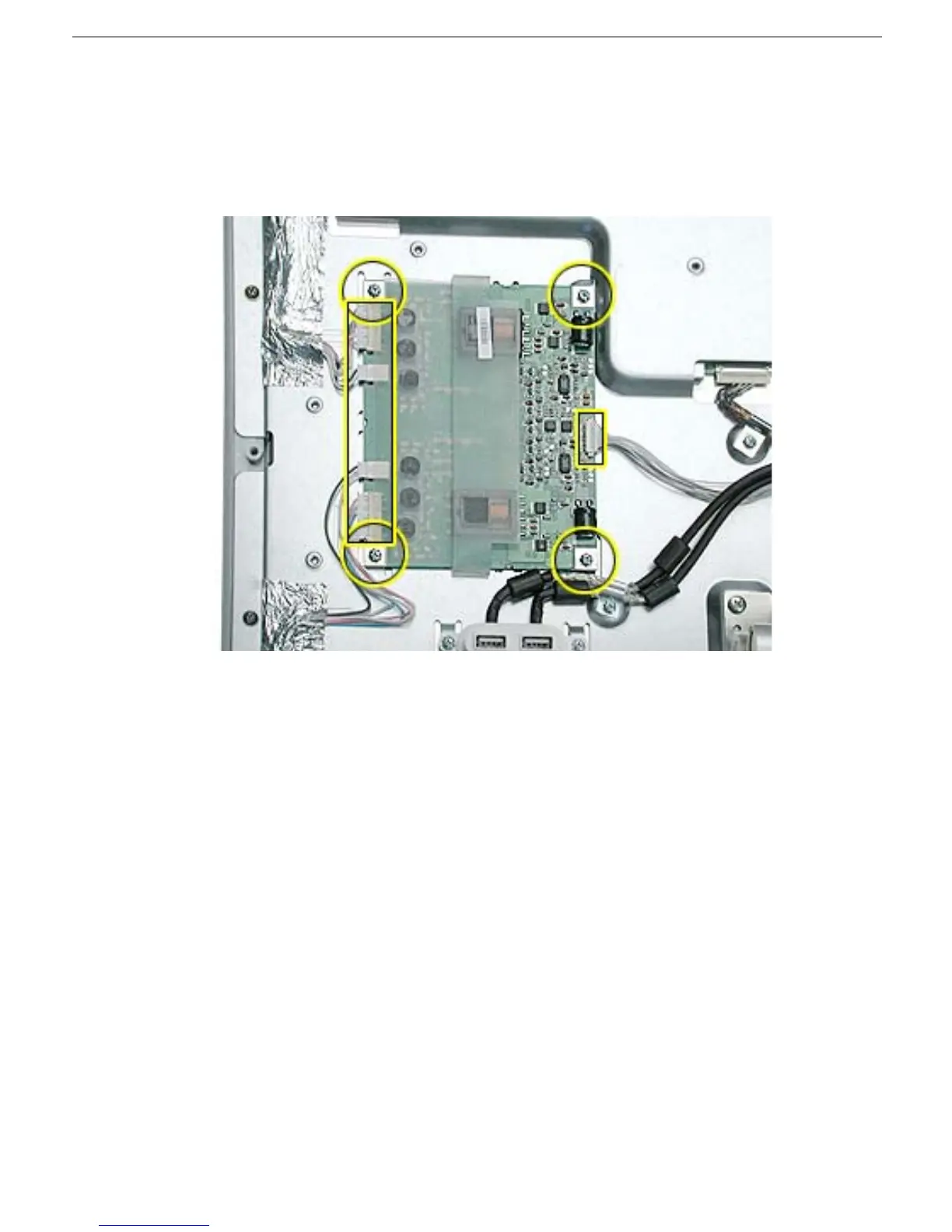

1. Disconnect the cable connectors from the inverter board.

2. Remove four Phillips screws and remove the board.

Replacement Note:

Verify notches along board edges align with tabs on chassis.
