Apple Cinema Display (20-inch) Take Apart - 3
Foot Assembly
Procedure

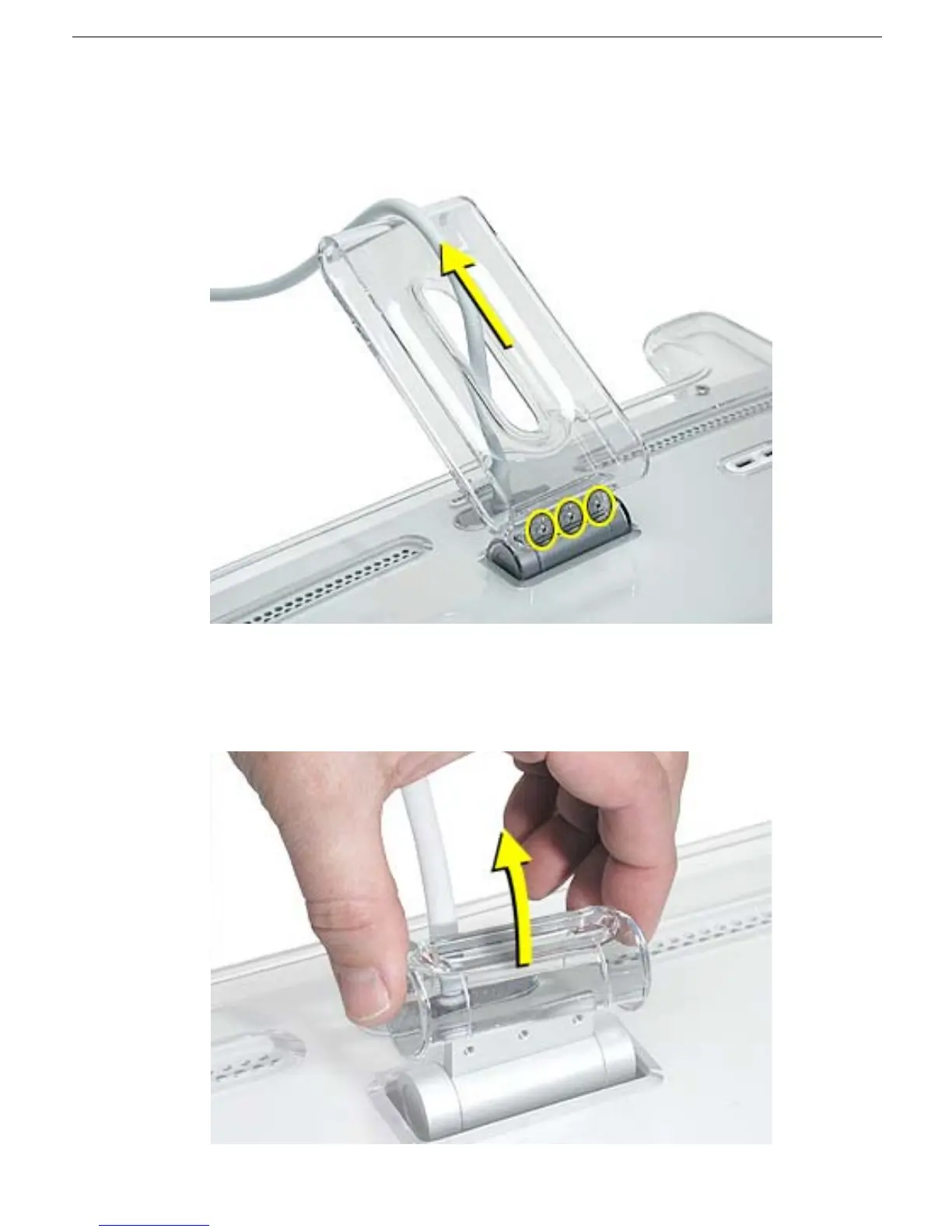

1. Remove three hex screws.
2. Lift the foot off the hinge.
3. Pull the ADC (Apple Display Connector) cable through the opening in the foot to
separate the foot and the cable.
4. Remove the clear hinge cap.
Replacement Note: If the plastic “break-off” is noticeable, install it facing down.
