Apple Cinema Display (20-inch) Take Apart -
5
Rear Cover and Rear Cosmetic Shield
Procedure

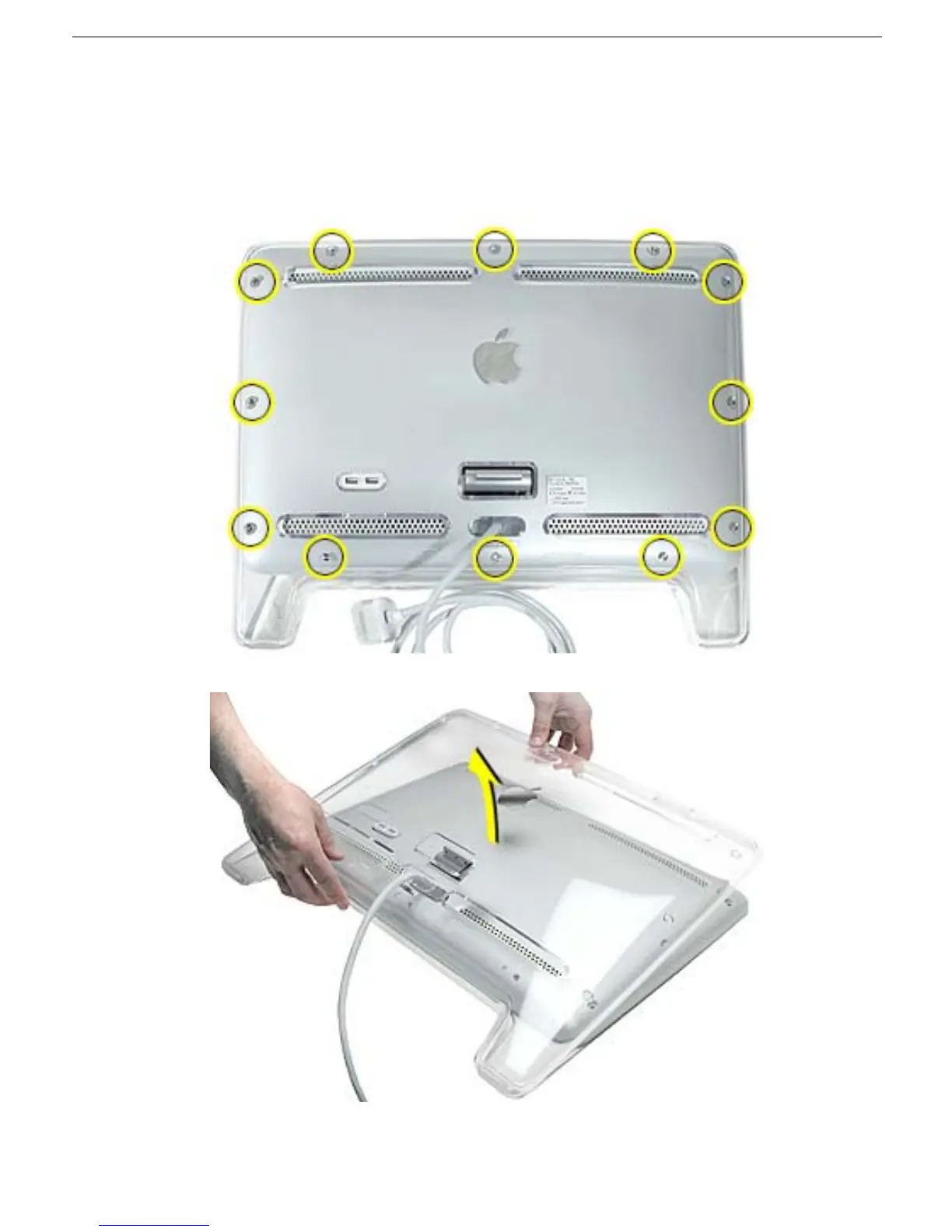

1. Remove twelve hex screws on the rear cover.
Replacement Note:
The three “shoulder” screws install along the bottom.
Replacement Note:
Screws are easily stripped; do not overtighten.
2. Lift the rear cover from the top to help disengage it from the tabs on the front legs.
Replacement Note:
Verify that the USB socket cover is in place, and that the arrowheads
on the USB icon point up.
