Cinema HD Display (23-inch DVI) Take Apart - 37
Display Cable

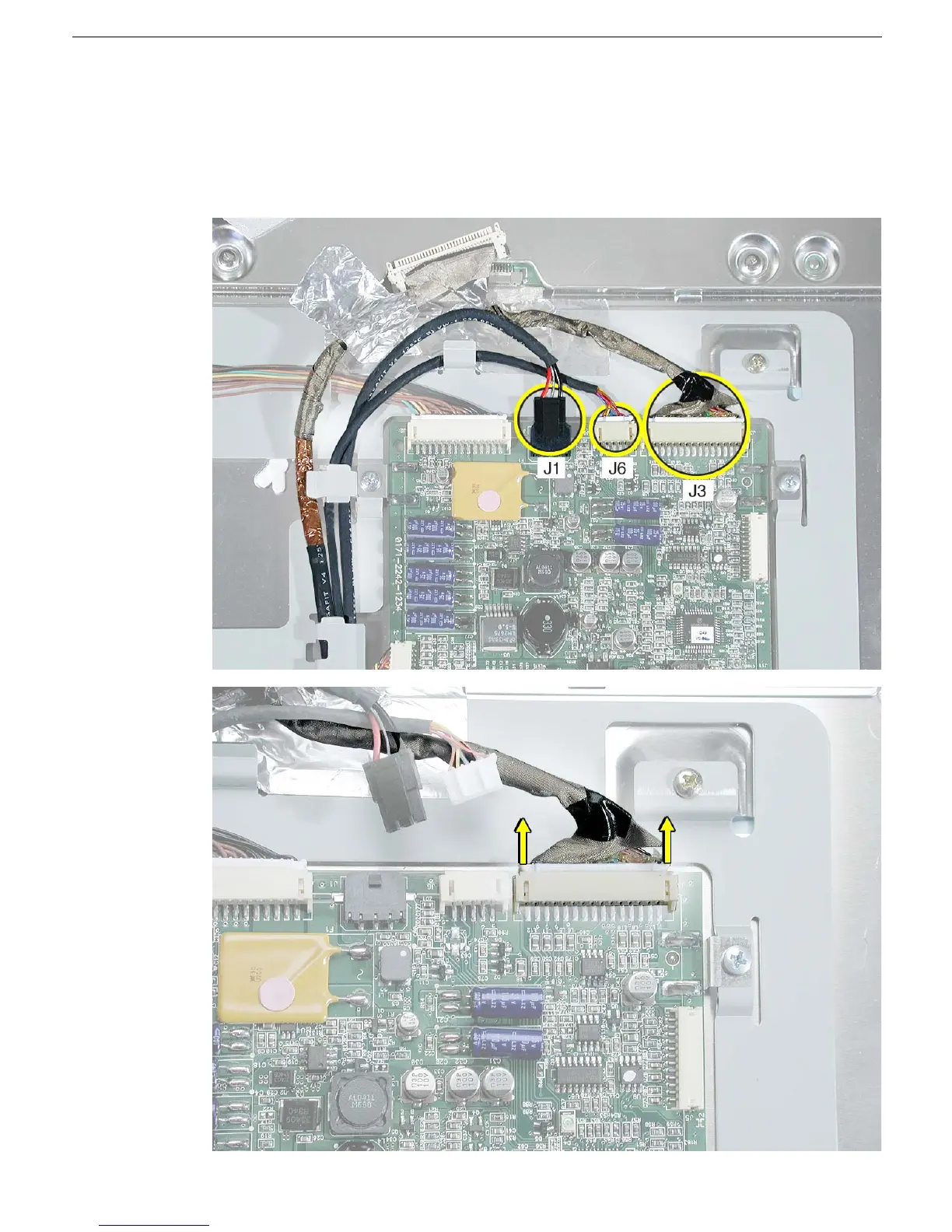

6. Disconnect cable connectors J1, J3, and J6 from the top of the main board.
Note: Connector J3 might be difficult to disconnect if the bottom edge of the
connector becomes wedged between the board and the chassis. Tilt the connector
up slightly while disconnecting it.
