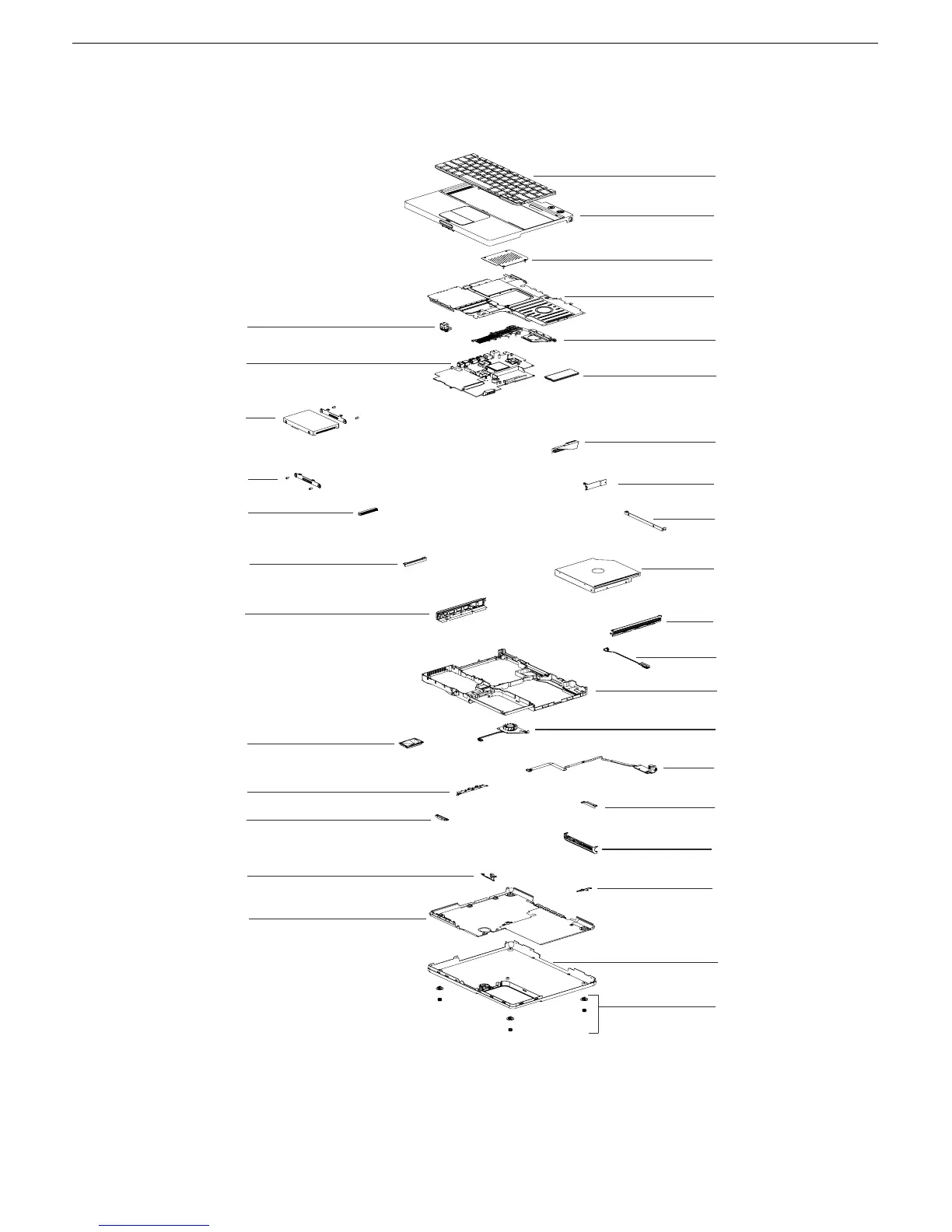

iBook G4 (12-inch Mid 2005): Main Exploded View
Bottom Case
922-6836
Bottom Shield
922-6835
Foot Kit, Feet
and Sockets
076-1157
Bridge Heatsink
922-6155
Vent Cover
922-6156
Small EMI Shield
922-6929
DC-In Board
922-6935
Fan
922-6607
Sleep Light Board
922-6125
AirPort/Bluetooth
Card Holder
922-6905
Hard Drive
40 GB 661-3632
60 GB 661-3633
80 GB 661-3634
100 GB 661-3635
I/O Port Shield
Hard Drive Direct
Connect Connector
922-6911
Frame
922-6838
Hard Drive Bracket
922-6833
Hard Drive Holder
922-6904
AirPort Extreme/
Bluetooth
661-3692
Reed Switch
922-7829
Bezel, Slot
922-6266
Optical Drive
Combo
661-3636
Keyboard
922-6901
Mounting Bracket,
Side Rail
922-6175
Top Case
922-6832
RAM Shield
922-6834
Top Shield
922-6839
Heatsink
922-6837
RJ11 Modem Cable
922-6927
Memory, SDRAM,
256 MB 661-3688
512 MB 661-3689
1 GB 661-3690
Logic Board,
1.33 GHz 661-3646
I/O Bezel
922-6140
Flex Cable
922-6648
Cable Bracket
922-6610
Not Shown:
Modem 922-6492
Modem Shield 922-6840
