51 - iBook G4 (12-inch Mid 2005) Take Apart
Sleep Light Board
Procedure

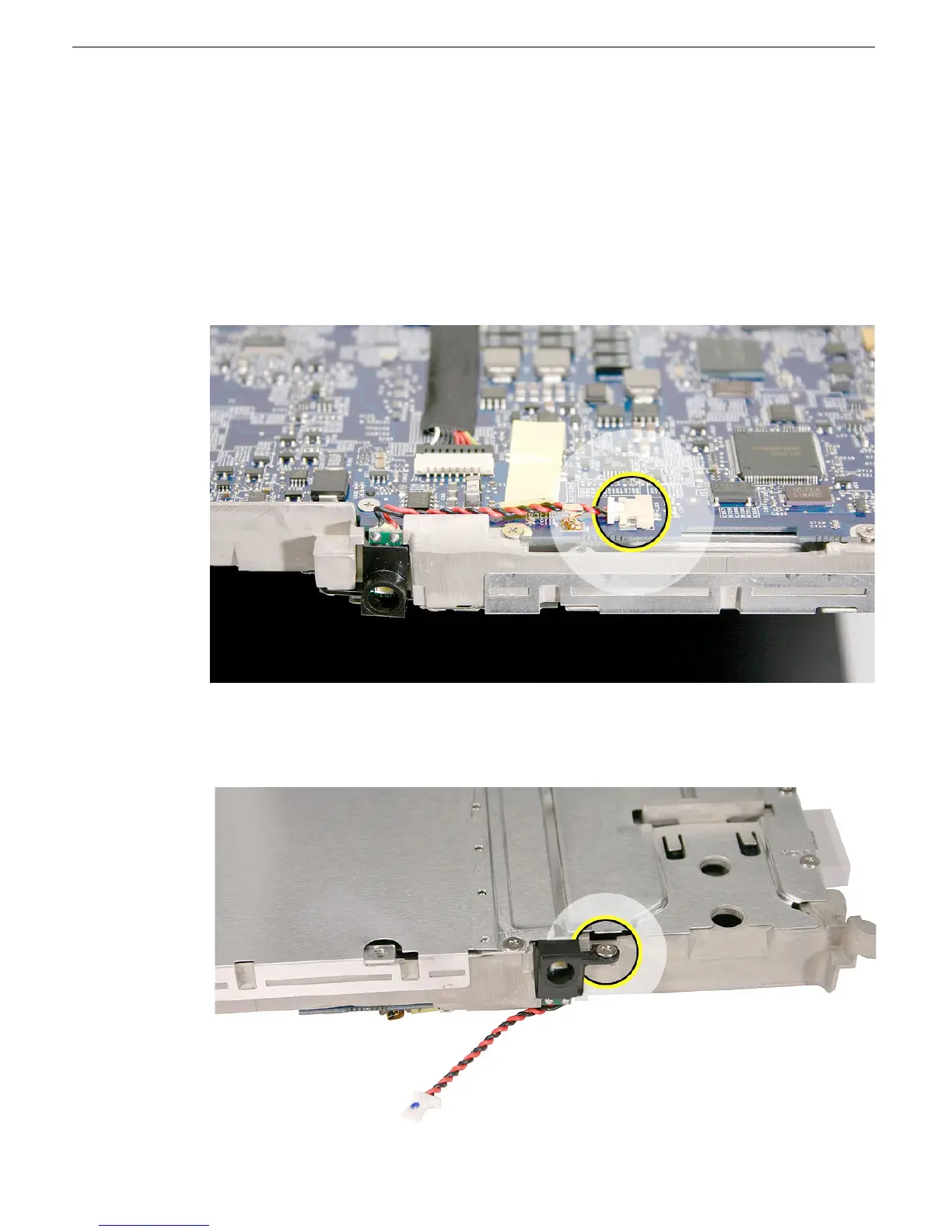

1. With the computer on a soft cloth, note the location of the sleep light board connector
on the logic board.
Note: When reassembling the computer, make sure the sleep light board is
positioned as shown and does not get caught between the top and bottom case.
2. Disconnect the cable that attaches the sleep light board to the logic board.
Caution: Be careful not to bend the spring clip next to the connector.
3. Turn over the computer and remove the single screw from the sleep light holder and
frame.
To Next Page
