iBook (14.1 LCD 16 VRAM) Take Apart - 88
Antenna Board

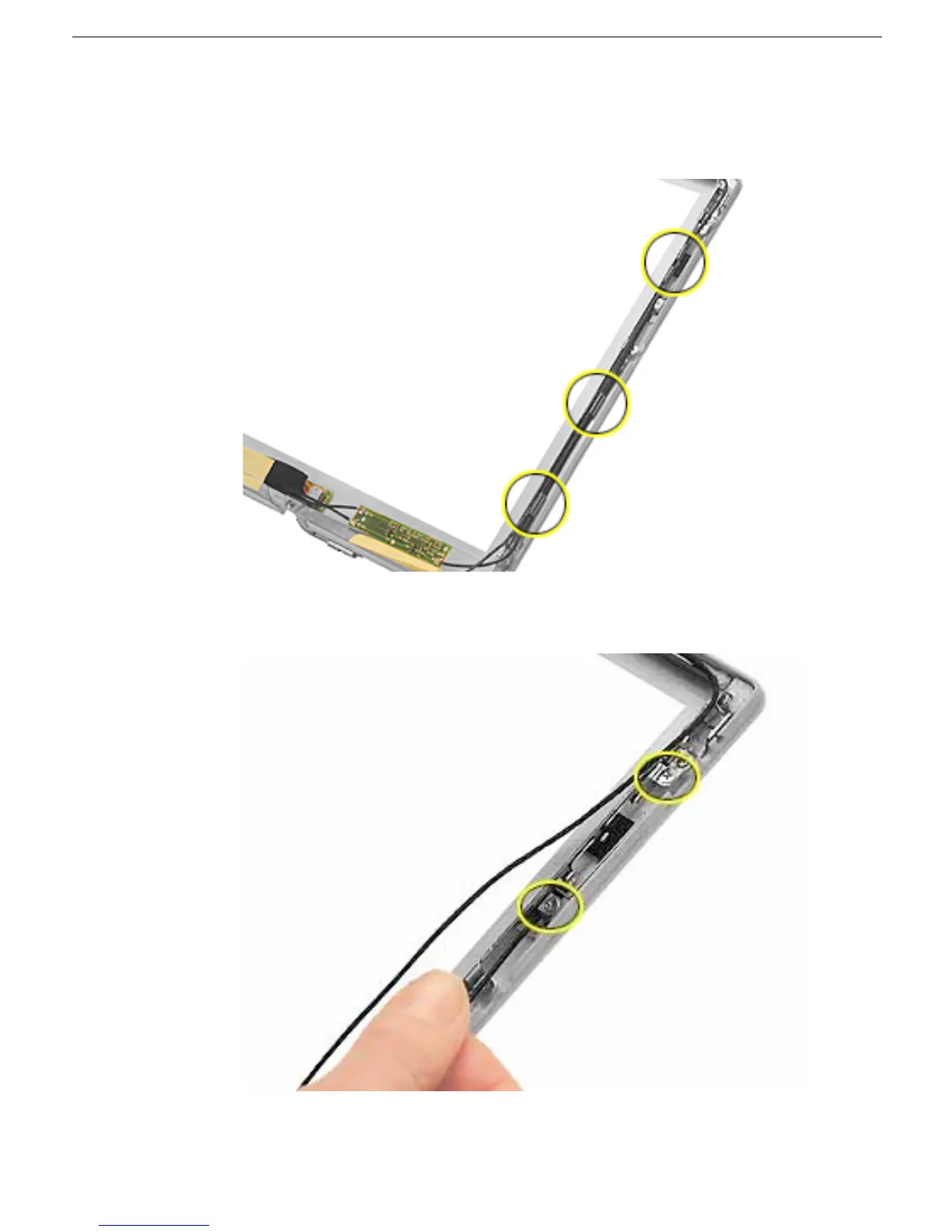

6. With the antenna board loosened, note the cable routing on each side of the bezel. On
the right, the antenna receptor cable is routed underneath the microphone cable
through two channels before terminating at the receptor bracket.
7. Remove the two 3-mm long Phillips screws from the antenna receptor on the right side
of the bezel assembly.
