iBook (14.1 LCD 16 VRAM) Take Apart - 90

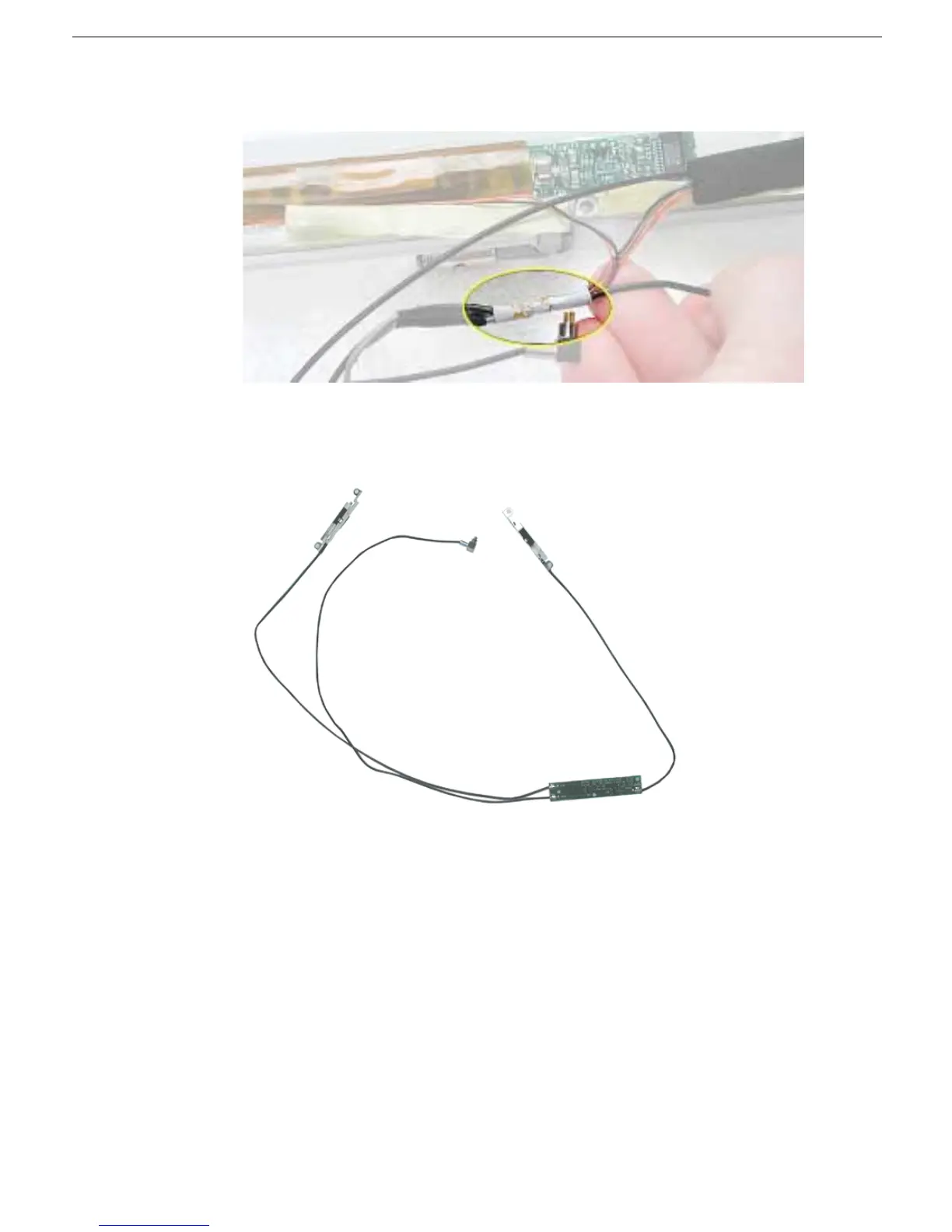

Antenna Board
11. Unwrap the tape that secures the AirPort Card antenna to the cable bundle.
12. Use a black stick to lift out the cables from the channels.
13. Remove the antenna board with attached cables and antenna receptors.
